UMW
XC6206P332MRLinear Voltage Regulator IC Positive Fixed 1 Output 250mA SOT-23
From
₹2.71
17,51,550 in stock
STDatasheet (PDF)

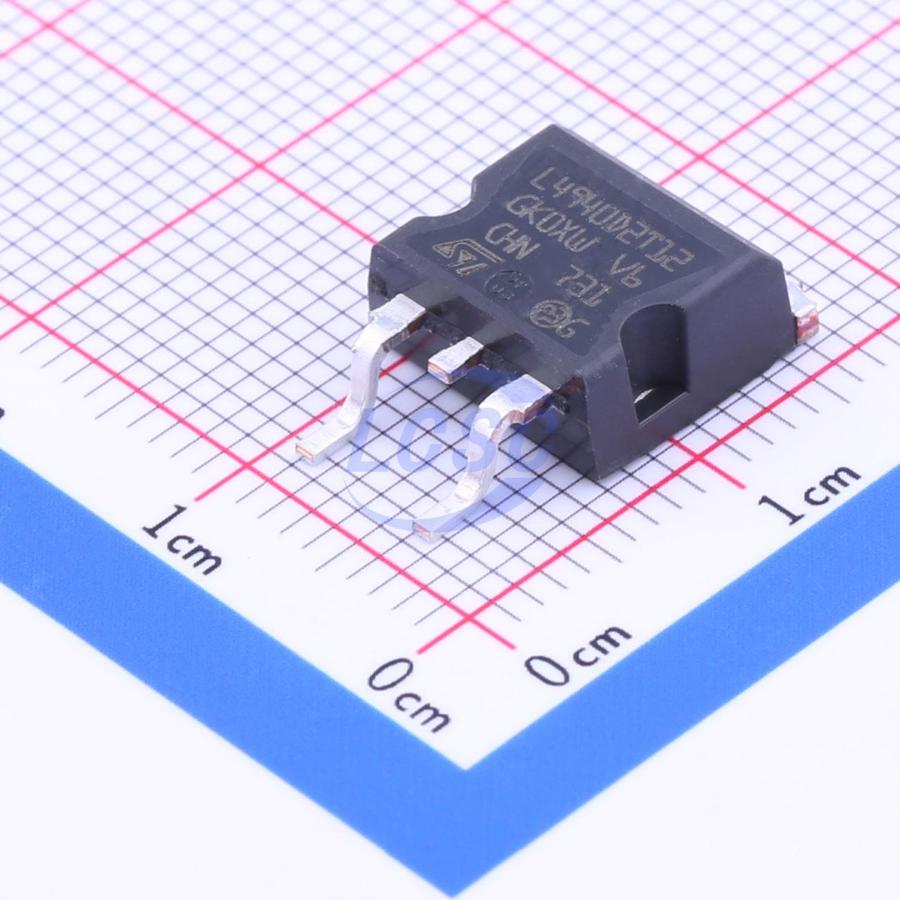

L4940D2T12-TR
12V Positive Fixed TO-263-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-2ROHS3 CompliantActive
1.5V Ultra-Low Dropout Voltage Regulator IC
- Manufacturer
- ST
- Manufacturer part #
- L4940D2T12-TR
- Store part #
- C222174
- Package / case
- TO-263-2
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
74 in stock
#C222174
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹169.28 | ₹169.28 |
| 10+ | ₹140.60 | ₹1,406.00 |
| 30+ | ₹124.73 | ₹3,741.90 |
| 100+ | ₹107.14 | ₹10,714.00 |
| 500+ | ₹99.09 | ₹49,545.00 |
| 1,000+ | ₹95.61 | ₹95,610.00 |
1 × ₹169.28
₹169.28
excl. GST
₹199.75 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
L4940D2T12-TR
₹169.28 for 1 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+150℃@(Tj)
- Supply Current (Iq)
- 30mA
- Output Configuration
- Positive
- Operating Voltage
- 17V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection;Reverse polarity voltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.915 g
Overview
The L4940 series of three-terminal positive regulators is available in TO-220 and D²PAK packages and with several fixed output voltages, making it useful in a wide range of industrial and consumer applications. Thanks to their very low input/output voltage drop, these devices are particularly suitable for battery-powered equipment, reducing consumption and prolonging battery-life. Each type employs internal current limiting, anti-saturation circuit, thermal shutdown and safe area protection.
Key features
- Precise 5, 8.5, 12 V outputs
- Low dropout voltage (450 mV typ. at 1 A)
- Very low quiescent current
- Thermal shutdown
- Short-circuit protection
- Reverse polarity protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L7812ABD2T(TOKMAS)#C7525417Tokmas · TO-263 | Tokmas | TO-263 | 105 | ₹41.17 · 105 in stock | View |
 | L7812ABD2T-TR#C186698ST · TO-263-2 | ST | TO-263-2 | 3,650 | ₹91.15 · 3,650 in stock | View |
 | CJ7812#C145151JSCJ · TO-263-2L | JSCJ | TO-263-2L | 1,320 | ₹45.54 · 1,320 in stock | View |
 | L7812CD2T-TR#C13456ST · TO-263-2 | ST | TO-263-2 | 2 | ₹61.07 · 2 in stock | View |
 | L7812ACD2T-TR#C54614ST · TO-263-2 | ST | TO-263-2 | 1,716 | ₹132.63 · 1,716 in stock | View |
