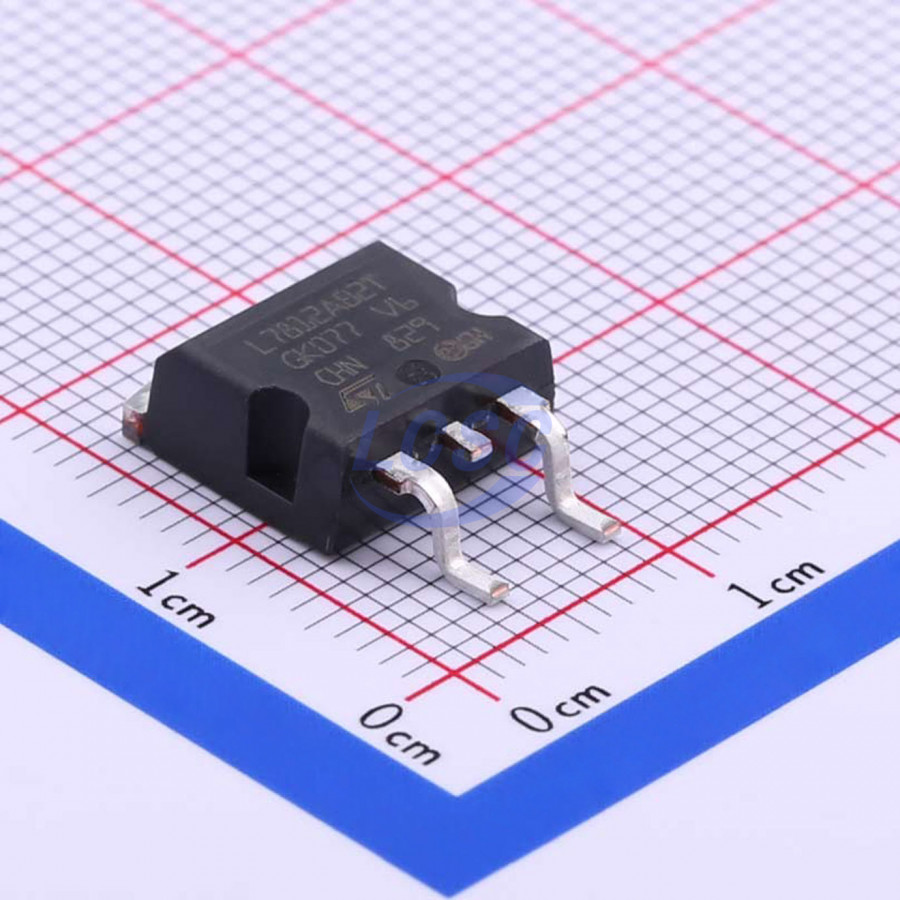

L7812ABD2T-TR
12V Positive Fixed TO-263-2 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-263-2ROHS3 CompliantActive
Positive Voltage Regulator IC
- Manufacturer
- ST
- Manufacturer part #
- L7812ABD2T-TR
- Store part #
- C186698
- Package / case
- TO-263-2
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,650 in stock
#C186698
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹91.15 | ₹91.15 |
| 10+ | ₹72.87 | ₹728.70 |
| 30+ | ₹63.52 | ₹1,905.60 |
| 100+ | ₹54.60 | ₹5,460.00 |
| 500+ | ₹49.16 | ₹24,580.00 |
| 1,000+ | ₹46.34 | ₹46,340.00 |
1 × ₹91.15
₹91.15
excl. GST
₹107.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
L7812ABD2T-TR
₹91.15 for 1 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 4.4mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.72 g
Overview
The L78 series of three-terminal positive regulators is available in TO-220, TO-220FP, D²PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.
Key features
- Output current up to 1.5 A
- Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V
- Thermal overload protection
- Short circuit protection
- Output transition SOA protection
- 2% output voltage tolerance (A version)
- Guaranteed in extended temperature range (A version)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ7812#C145151JSCJ · TO-263-2L | JSCJ | TO-263-2L | 1,320 | ₹45.54 · 1,320 in stock | View |
 | L7812ABD2T(TOKMAS)#C7525417Tokmas · TO-263 | Tokmas | TO-263 | 105 | ₹41.17 · 105 in stock | View |
 | L7812CD2T-TR#C13456ST · TO-263-2 | ST | TO-263-2 | 2 | ₹61.07 · 2 in stock | View |
 | L7812ACD2T-TR#C54614ST · TO-263-2 | ST | TO-263-2 | 1,716 | ₹132.63 · 1,716 in stock | View |
 | UA7812CKTTR#C131946TI · DDPAK-3(TO-263-3) | TI | DDPAK-3(TO-263-3) | 4,422 | ₹112.10 · 4,422 in stock | View |
