TIDatasheet (PDF)

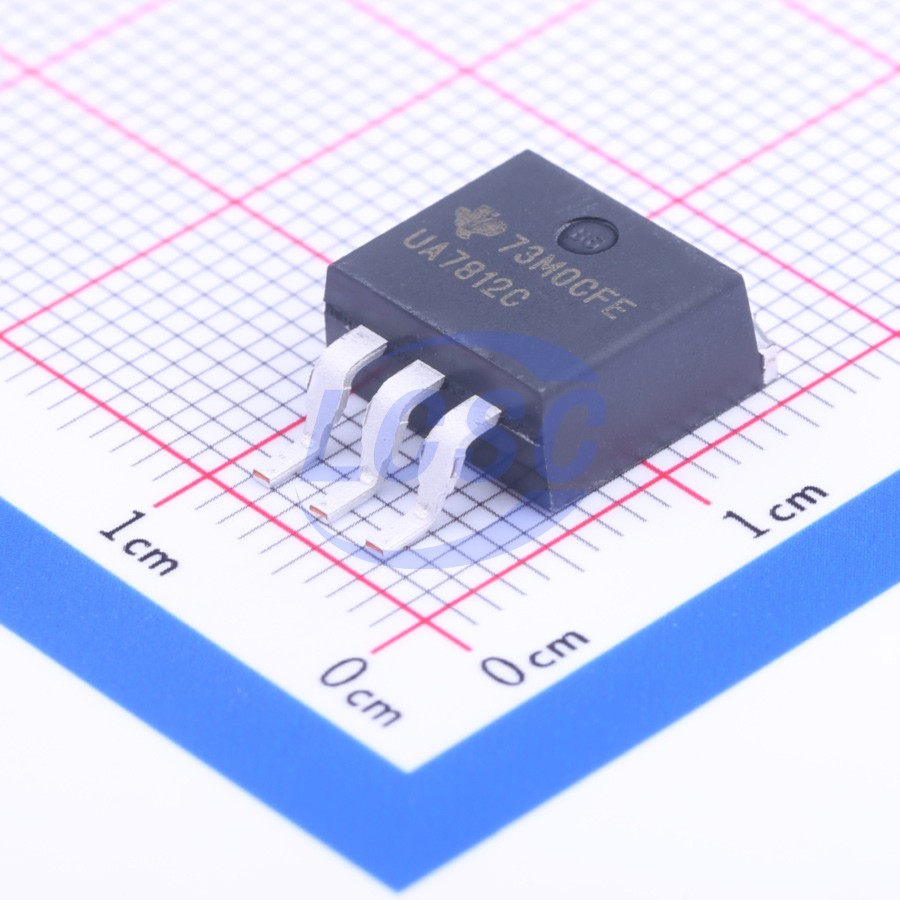

UA7812CKTTR
12V Positive Fixed DDPAK-3(TO-263-3) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DDPAK-3(TO-263-3)ROHS3 CompliantActive
1.5A, 38V linear regulator
- Manufacturer
- TI
- Manufacturer part #
- UA7812CKTTR
- Store part #
- C131946
- Package / case
- DDPAK-3(TO-263-3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,422 in stock
#C131946
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹112.10 | ₹112.10 |
| 10+ | ₹94.75 | ₹947.50 |
| 30+ | ₹82.61 | ₹2,478.30 |
| 100+ | ₹72.65 | ₹7,265.00 |
| 500+ | ₹69.39 | ₹34,695.00 |
| 1,000+ | ₹67.43 | ₹67,430.00 |
1 × ₹112.10
₹112.10
excl. GST
₹132.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per reel
UA7812CKTTR
₹112.10 for 1 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 4.3mA
- Output Configuration
- Positive
- Operating Voltage
- 30V
- Output Current
- 1.5A
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection;Input overvoltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.944 g
Overview
This series of fixed-voltage integrated-circuit voltage regulators is designed for a wide range of applications. These applications include on-card regulation for elimination of noise and distribution problems associated with single-point regulation. Each of these regulators can deliver up to 1.5 A of output current. The internal current-limiting and thermal-shutdown features of these regulators essentially make them immune to overload. In addition to use as fixed-voltage regulators, these devices can be used with external components to obtain adjustable output voltages and currents, and also can be used as the power-pass element in precision regulators.
Applications
- On-card Regulation
- Portable Devices
- Computing & Servers
- Telecommunications
Key features
- 3-Terminal Regulators Available in fixed 5-V/8-V/10-V/12-V/15-V/24-V options Output Current up to 1.5 A
- Internal Thermal-Overload Protection High Power-Dissipation Capability
- Internal Short-Circuit Current Limiting Output Transistor Safe-Area Compensation Output Capacitor Not Needed for Stability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ7812#C145151JSCJ · TO-263-2L | JSCJ | TO-263-2L | 1,320 | ₹45.54 · 1,320 in stock | View |
 | L7812ABD2T-TR#C186698ST · TO-263-2 | ST | TO-263-2 | 3,650 | ₹91.15 · 3,650 in stock | View |
 | L7812CD2T-TR#C13456ST · TO-263-2 | ST | TO-263-2 | 2 | ₹61.07 · 2 in stock | View |
 | L7812ACD2T-TR#C54614ST · TO-263-2 | ST | TO-263-2 | 1,716 | ₹132.63 · 1,716 in stock | View |
 | L7812CDTR(XBLW)#C22357877XBLW · TO-263 | XBLW | TO-263 | 440 | ₹28.55 · 440 in stock | View |
