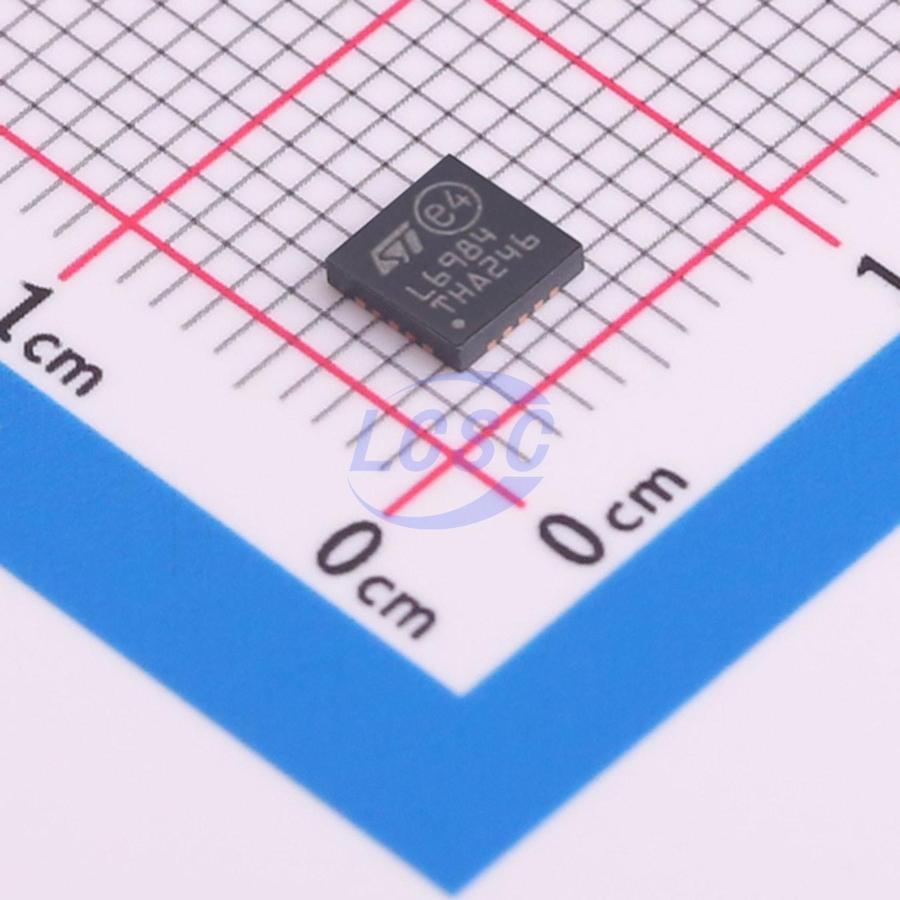

L6984TR

The L6984 is a step-down monolithic switching regulator able to deliver up to 400 mA DC. The output voltage adjustability ranges from 0.9 V. The fixed 3.3 V Vout requires no external resistor divider. The “Low Consumption Mode" (LCM) is designed for applications active during car parking, so it maximizes the efficiency at light load with controlled output voltage ripple. The "Low Noise Mode" (LNM) makes the switching frequency almost constant over the load current range, serving low noise application specification like car audio/sensors. The PGOOD open collector output can implement output voltage sequencing during the power-up phase. The synchronous rectification, designed for high efficiency at medium - heavy load, and the high switching frequency capability make the size of the application compact. Pulse-by-pulse current sensing on low-side power element implements an effective constant current protection.

Applications

• Battery powered applications (LCM)
• Sensors (LNM)
• E - metering

Key features

• 400 mA DC output current
• 4.5 V to 36 V operating input voltage
• Synchronous rectification
• Low consumption mode or low noise mode
• 75 μA lQ at light load (LCM, VOUT = 3.3 V)
• 13 μA lQ - SHTDWN
• Adjustable fsw (250 kHz - 600 kHz)
• Output voltage adjustable from 0.9 V
• No resistor divider required for 3.3 V VOUT
• VBias maximizes efficiency at light load
• 350 mA valley current limit
• Constant on - time control scheme
• PGOOD open collector
• Thermal shutdown
