STDatasheet (PDF)

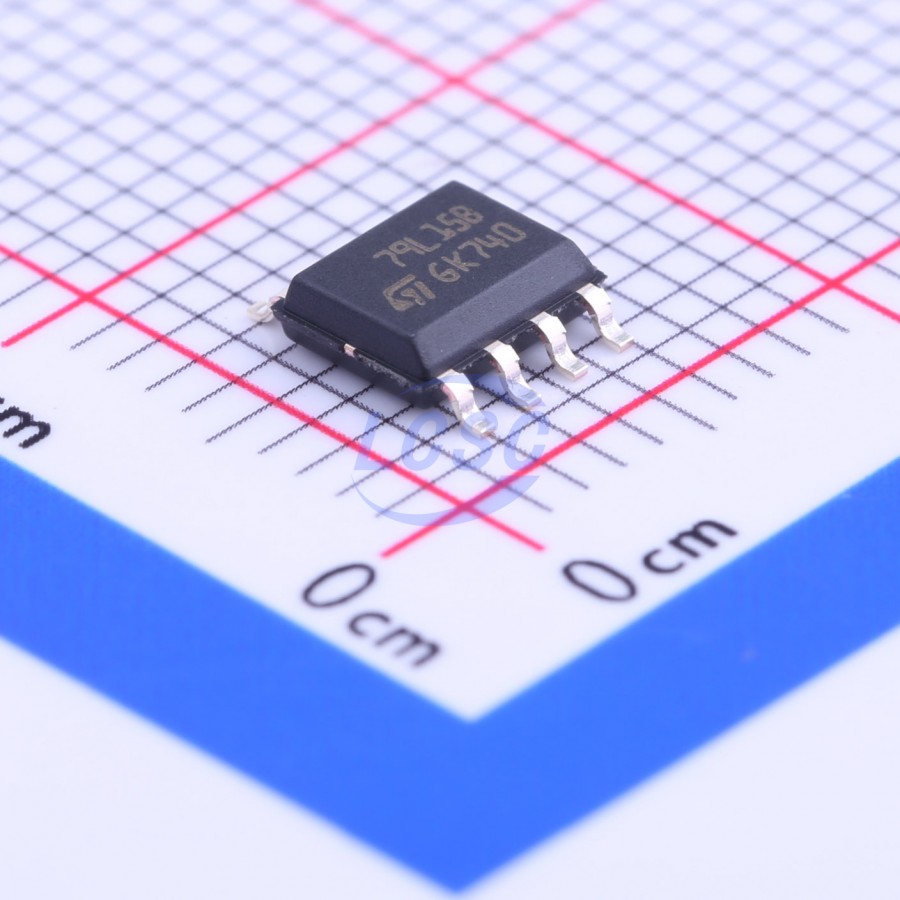

L79L15ABD13TR
15V Negative Fixed SOIC-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOIC-8ROHS3 CompliantActive
Negative Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- L79L15ABD13TR
- Store part #
- C157427
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,065 in stock
#C157427
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.88 | ₹229.40 |
| 50+ | ₹36.42 | ₹1,821.00 |
| 150+ | ₹32.37 | ₹4,855.50 |
| 500+ | ₹27.32 | ₹13,660.00 |
| 2,500+ | ₹25.06 | ₹62,650.00 |
| 5,000+ | ₹23.71 | ₹1,18,550.00 |
5 × ₹45.88
₹229.40
excl. GST
₹270.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
L79L15ABD13TR
₹229.40 for 5 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 6.5mA
- Output Configuration
- Negative
- Operating Voltage
- 30V
- Output Current
- 100mA
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Overview
The L79L series of three-terminal negative regulators employ internal current limiting and thermal shutdown, making them essentially indestructible. If adequate heat-sink is provided, they can deliver up to 100 mA output current. They are intended as fixed voltage regulators in a wide range of applications including local or oncard regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, they can be used with power pass elements to make high-current voltage regulators. The L79L series used as Zener diode/resistor combination replacement, offers an effective output impedance improvement of typically two orders of magnitude, along with lower quiescent current and lower noise.
Key features
- Output current up to 100 mA
- Output voltages of -5; -8; -12; -15 V
- Thermal overload protection
- Short-circuit protection
- No external components are required
- Available in ±5% (AC) or ±10% (C) selection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC79L15ACDR2G#C148319onsemi · SOIC-8 | onsemi | SOIC-8 | 2,680 | ₹35.77 · 2,680 in stock | View |
 | MC79L15ABDR2G#C233403onsemi · SOIC-8 | onsemi | SOIC-8 | 20 | ₹22.89 · 20 in stock | View |
 | LM79L15ACMX/NOPB#C2864372TI · SOIC-8 | TI | SOIC-8 | 26 | ₹47.72 · 26 in stock | View |
| L79L15ACD13TR#C672063ST · SO-8 | ST | SO-8 | On request | ₹42.31 · 0 in stock | View | |
| LM79L15ACM-NS#C3744462TI · SOIC-8 | TI | SOIC-8 | On request | ₹80.41 · 0 in stock | View | |
