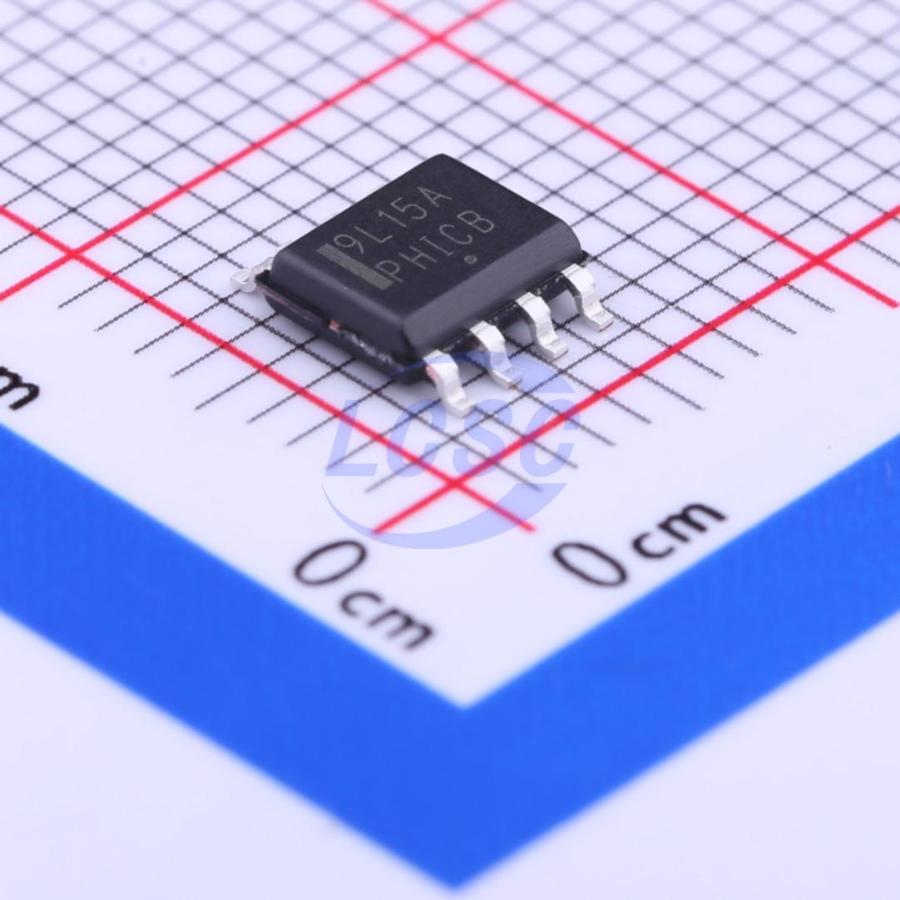

MC79L15ABDR2G
15V Negative Fixed SOIC-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOIC-8ROHS3 CompliantActive
Negative Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- MC79L15ABDR2G
- Store part #
- C233403
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C233403
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.89 | ₹114.45 |
| 50+ | ₹22.37 | ₹1,118.50 |
| 150+ | ₹22.03 | ₹3,304.50 |
| 500+ | ₹21.70 | ₹10,850.00 |
5 × ₹22.89
₹114.45
excl. GST
₹135.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC79L15ABDR2G
₹114.45 for 5 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Negative
- Operating Voltage
- 30V
- Output Current
- 100mA
- Features
- Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
The MC79L00A Series negative voltage regulators are inexpensive, easy−to−use devices suitable for numerous applications requiring up to 100 mA. Like the higher powered MC7900 Series negative regulators, this series features thermal shutdown and current limiting, making them remarkably rugged. In most applications, no external components are required for operation. The MC79L00A devices are useful for on−card regulation or any other application where a regulated negative voltage at a modest current level is needed. These regulators offer substantial advantage over the common resistor/Zener diode approach.
Key features
- No External Components Required
- Internal Short Circuit Current Limiting
- Internal Thermal Overload Protection
- Low Cost
- Complementary Positive Regulators Offered (MC78L00 Series)
- Pb−Free Packages are Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L79L15ABD13TR#C157427ST · SOIC-8 | ST | SOIC-8 | 2,065 | ₹45.88 · 2,065 in stock | View |
 | MC79L15ACDR2G#C148319onsemi · SOIC-8 | onsemi | SOIC-8 | 2,680 | ₹35.77 · 2,680 in stock | View |
 | MC79L15ACDR2G-HXY#C19627002HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 55 | ₹30.55 · 55 in stock | View |
 | LM79L15ACMX/NOPB#C2864372TI · SOIC-8 | TI | SOIC-8 | 26 | ₹47.72 · 26 in stock | View |
| L79L15ACD13TR#C672063ST · SO-8 | ST | SO-8 | On request | ₹42.31 · 0 in stock | View | |
