MSKSEMIDatasheet (PDF)

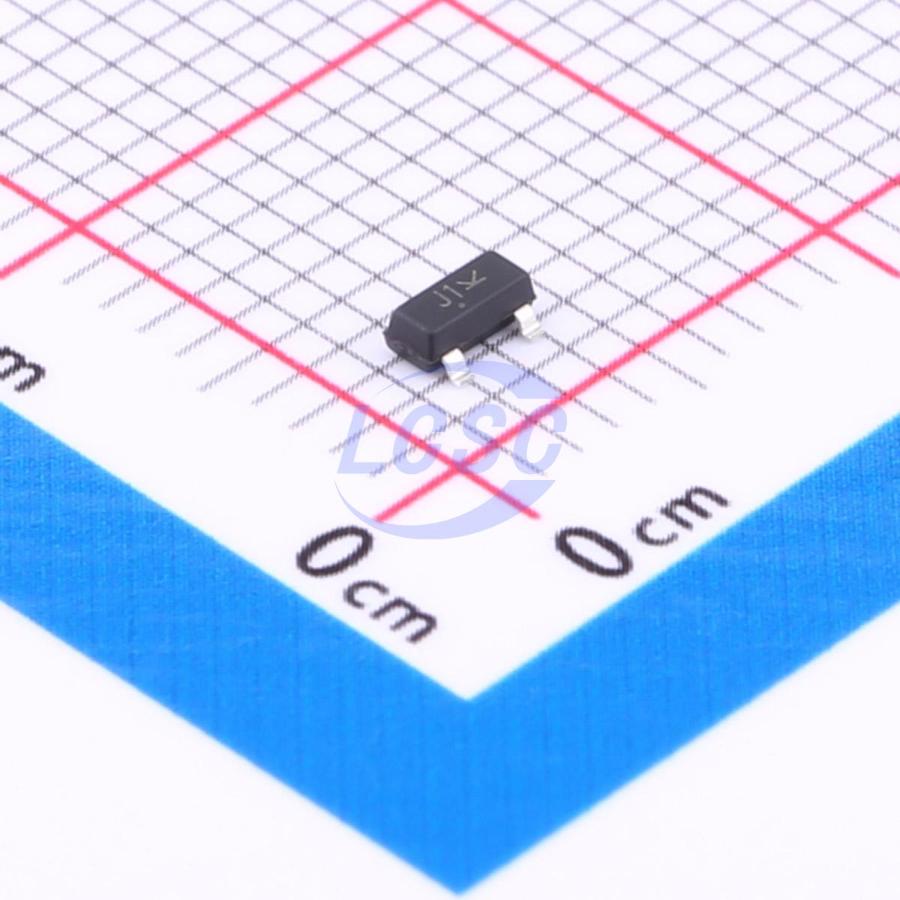

LBSS138LT1G-MS
350mW 55V 300mA 1.2Ω@10V 1 N-channel N-Channel SOT-23 Single FETs, MOSFETs
SOT-23RoHSActive
MOSFET N-CH 55V 300mA SOT-23
- Manufacturer
- MSKSEMI
- Manufacturer part #
- LBSS138LT1G-MS
- Store part #
- C6454464
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,500 in stock
#C6454464
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.29 | ₹65.80 |
| 200+ | ₹2.59 | ₹518.00 |
| 600+ | ₹2.21 | ₹1,326.00 |
| 3,000+ | ₹1.84 | ₹5,520.00 |
| 9,000+ | ₹1.64 | ₹14,760.00 |
| 21,000+ | ₹1.53 | ₹32,130.00 |
20 × ₹3.29
₹65.80
excl. GST
₹77.64 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LBSS138LT1G-MS
₹65.80 for 20 + GST
Specifications
- Output Capacitance(Coss)
- 17pF
- Ciss-Input Capacitance
- 25.5pF
- Pd - Power Dissipation
- 350mW
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 55V
- Current - Continuous Drain(Id)
- 300mA
- Reverse Transfer Capacitance (Crss)
- 7.8pF
- RDS(on)
- 1.2Ω@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 3.7nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 800mV
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.034 g
Overview
Applications
- Motor drive
- Power tools
- LED lighting
Key features
- 55 V, 0.3 A, R DS(ON) = 1.2 Ω at V GS = 10 V
- Improved dv/dt capability
- Fast switching
- Green/eco-friendly devices available
- Built-in G-S ESD protection diode
- ESD protection up to 2 KV
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSS138LT1G-MS#C5343308MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 20 | ₹4.37 · 20 in stock | View |
 | BVSS138LT1G#C6454463MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 1,240 | ₹3.41 · 1,240 in stock | View |
 | BSS138NH6327-MS#C6454465MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 1,980 | ₹4.99 · 1,980 in stock | View |
 | BSS138P#C6454466MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 820 | ₹2.99 · 820 in stock | View |
 | BSS138BK#C6454467MSKSEMI · SOT-23 | MSKSEMI | SOT-23 | 1,180 | ₹2.94 · 1,180 in stock | View |
