TECH PUBLICDatasheet (PDF)

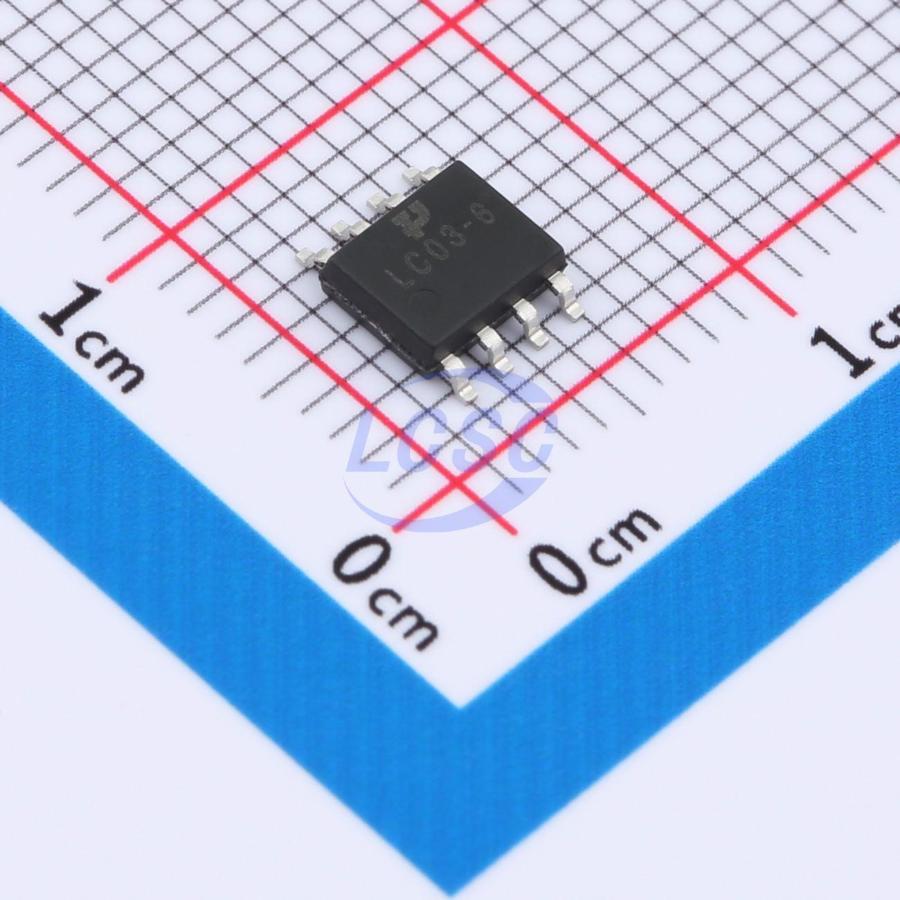

LC03-6.TBT
9.8VC 12VC 20VC Clamp 100A@8/20us Ipp SOP-8
SOP-8RoHSActive
5VWM 9.8VC 12VC 20VC SOP-8
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LC03-6.TBT
- Store part #
- C23380871
- Package / case
- SOP-8
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,856 in stock
#C23380871
Stock & price checked 15 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.84 | ₹71.84 |
| 10+ | ₹57.47 | ₹574.70 |
| 30+ | ₹50.29 | ₹1,508.70 |
| 100+ | ₹43.33 | ₹4,333.00 |
| 500+ | ₹38.98 | ₹19,490.00 |
| 1,000+ | ₹36.79 | ₹36,790.00 |
1 × ₹71.84
₹71.84
excl. GST
₹84.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LC03-6.TBT
₹71.84 for 1 + GST
Specifications
- Clamping Voltage
- 9.8V;12V;20V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 100A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 2kW@8/20us
- Voltage - Breakdown
- 6V
- Reverse Leakage Current (Ir)
- 500nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.191 g
Overview
Applications
- T1/E1 Line Cards
- T3/E3 and DS3 Interfaces
- STS-1 Interfaces
- 10/100 Etherner
Key features
- Low operating voltage: 5V
- Ultra low capacitance: 9pF typical (I/O to I/O)
- Ultra low leakage: nA level
- Low clamping voltage
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5(Lightning):100A(8/20μs)
- These are Pb-Free Devices
- Response Time is Typically < 1 ns
