TECH PUBLICDatasheet (PDF)

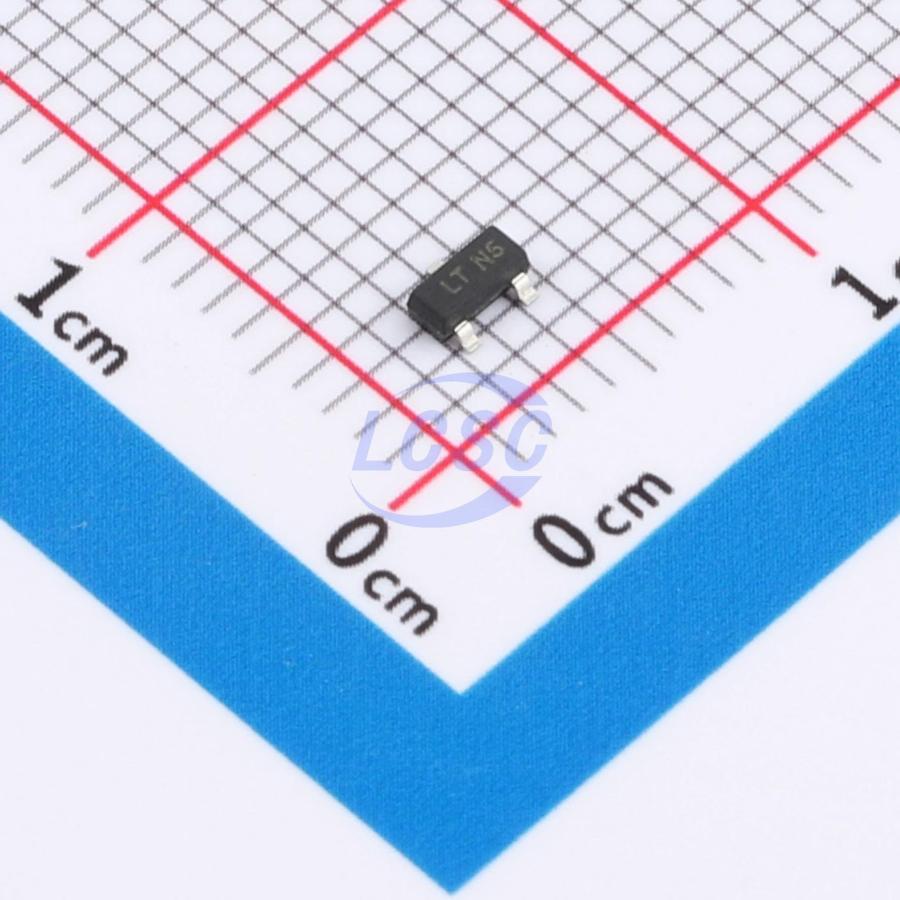

LC05CD
20V 17A@8/20us 350W@8/20us 6.4V Bidirectional 5V SOT-23 TVS Diodes
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LC05CD
- Store part #
- C52098194
- Package / case
- SOT-23
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,660 in stock
#C52098194
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.34 | ₹53.40 |
| 100+ | ₹4.21 | ₹421.00 |
| 300+ | ₹3.64 | ₹1,092.00 |
| 3,000+ | ₹3.21 | ₹9,630.00 |
| 6,000+ | ₹2.87 | ₹17,220.00 |
| 9,000+ | ₹2.70 | ₹24,300.00 |
10 × ₹5.34
₹53.40
excl. GST
₹63.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LC05CD
₹53.40 for 10 + GST
Specifications
- Clamping Voltage
- 20V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 17A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 350W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 6.4V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 100nA
- Reverse Stand-Off Voltage (Vrwm)
- 5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
Applications
- Mobile phones & accessories
- Laptops & handheld devices
- Portable instruments
- Set-top boxes
- Industrial control
Key features
- 350W peak pulse power (8/20 μs)
- Ultra-low leakage: nA-level
- Operating voltage: 5V
- Low clamping voltage
- Compliant with the following standards:
- IEC 61000-4-2 (ESD) immunity test
- Air discharge: ±30kV
- Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5 (Surge) 17A (8/20μs)
- RoHS compliant
