TECH PUBLICDatasheet (PDF)

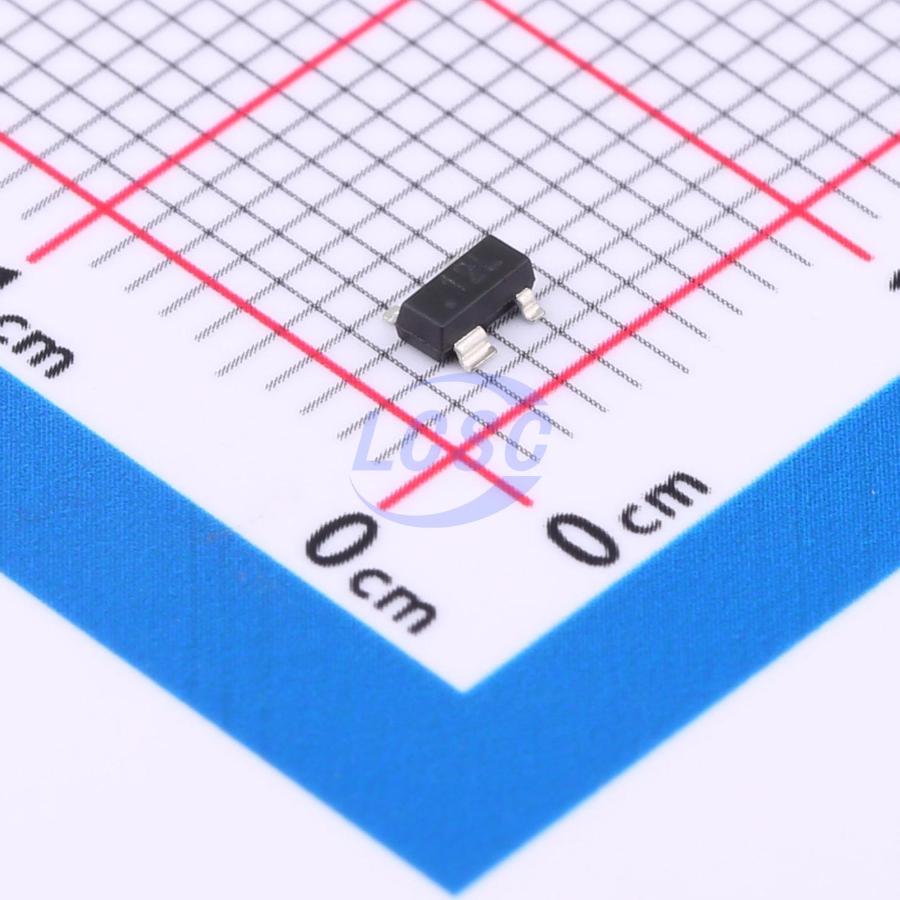

LCDA12C-1
28VC Clamp 13A@8/20us Ipp SOT-143
SOT-143RoHSActive
12VWM 28VC SOT-143
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LCDA12C-1
- Store part #
- C19268164
- Package / case
- SOT-143
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,890 in stock
#C19268164
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.63 | ₹178.15 |
| 50+ | ₹27.98 | ₹1,399.00 |
| 150+ | ₹24.70 | ₹3,705.00 |
| 500+ | ₹20.61 | ₹10,305.00 |
| 3,000+ | ₹18.79 | ₹56,370.00 |
| 6,000+ | ₹17.69 | ₹1,06,140.00 |
5 × ₹35.63
₹178.15
excl. GST
₹210.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LCDA12C-1
₹178.15 for 5 + GST
Specifications
- Clamping Voltage
- 28V
- Operating Temperature
- -55℃~+125℃
- Peak Pulse Current (Ipp)
- 13A@8/20us
- Peak Pulse Power Dissipation (Ppp)
- 400W@8/20us
- Number of Channels
- 2
- Voltage - Breakdown
- 13.8V
- type
- TVS
- Polarity
- Bidirectional
- Reverse Leakage Current (Ir)
- 200nA
- Reverse Stand-Off Voltage (Vrwm)
- 12V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.672 g
Overview
Applications
- Ethernet-10/100BaseT
- Cellular Phones
- Audio & Video Inputs
- FireWire,SCSI&USBInterfaces
Key features
- Ultra low leakage: nA level
- Operating voltage: 12V
- Ultar low capacitance 0.8pF (typ)
- Low clamping voltage
- Complies with following standards:
- IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±30kV
- IEC61000-4-4 (EFT) 40A (5/50ns)
- IEC61000-4-5 (Lightning)13A (8/20μs)
- RoHS Compliant
