STDatasheet (PDF)

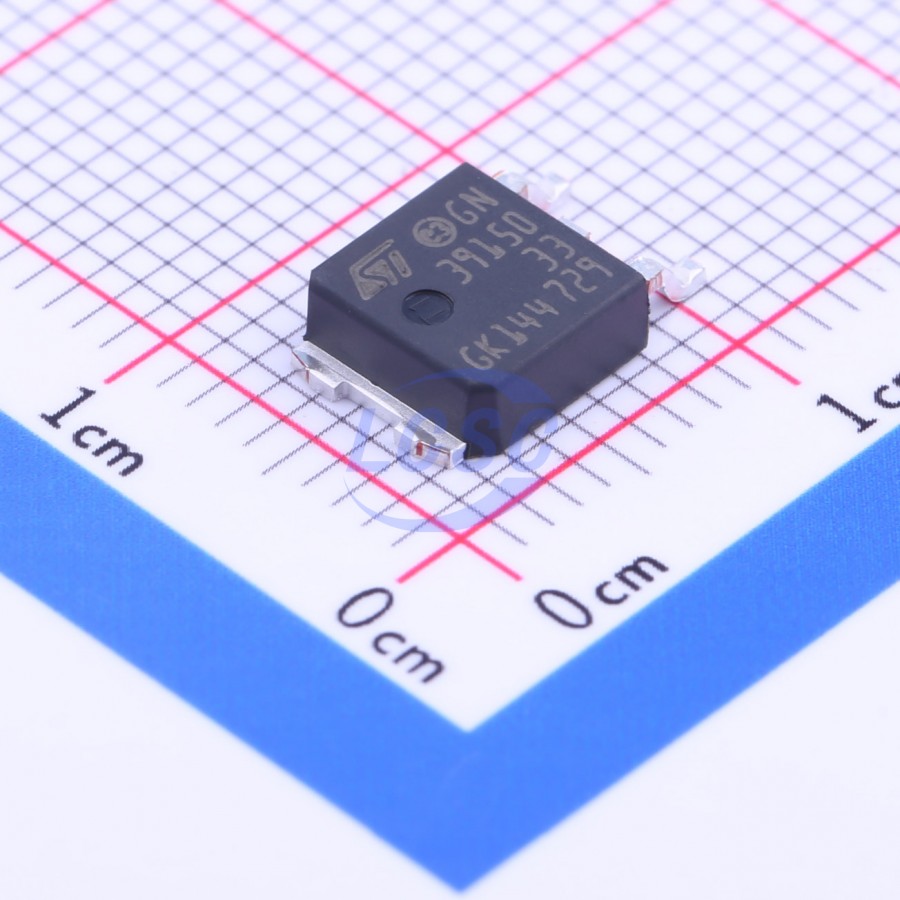

LD39150DT33-R
3.3V Positive Fixed DPAK Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DPAKROHS3 CompliantActive
Ultra-Low Dropout BiCMOS Regulator
- Manufacturer
- ST
- Manufacturer part #
- LD39150DT33-R
- Store part #
- C155559
- Package / case
- DPAK
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,723 in stock
#C155559
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹299.33 | ₹299.33 |
| 10+ | ₹254.20 | ₹2,542.00 |
| 30+ | ₹226.07 | ₹6,782.10 |
| 100+ | ₹197.09 | ₹19,709.00 |
| 500+ | ₹184.00 | ₹92,000.00 |
| 1,000+ | ₹178.33 | ₹1,78,330.00 |
1 × ₹299.33
₹299.33
excl. GST
₹353.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LD39150DT33-R
₹299.33 for 1 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 1mA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 1.5A
- Features
- Enable control;Short Circuit Protection;Thermal shutdown;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.475 g
Overview
The LD39150 is a fast ultra low drop linear regulator which operates from 2.5 V to 6 V input supply. A wide range of output options are available. The low drop voltage, low noise, and ultra low quiescent current make it suitable for low voltage microprocessor and memory applications. The device is developed on a BiCMOS process which allows low quiescent current operation independently of output load current.
Applications
- Microprocessor power supply
- DSPs power supply
- Post regulators for switching suppliers
- High efficiency linear regulator
Key features
- 1.5 A guaranteed output current
- Ultra low dropout voltage (200 mV typ. @ 1.5 A load, 40 mV typ. @ 300 mA load)
- Very low quiescent current (1 mA typ. @ 1.5 A load, 1 μA max @ 25 °C in off mode)
- Logic-controlled electronic shutdown
- Current and thermal internal limit
- ± 1.5% output voltage tolerance @ 25 °C
- Fixed and ADJ output voltages: 1.8 V, 2.5 V, 3.3 V, ADJ
- Temperature range: -40 to 125 °C
- Fast dynamic response to line and load changes
- Stable with ceramic capacitor
- Available in PPAK, DPAK and DFN6 (3x3 mm)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM1085RS-3.3#C22650825HTC · TO-252-3L | HTC | TO-252-3L | 2,335 | ₹64.38 · 2,335 in stock | View |
 | LM1084RS-3.3#C7434827HTC · TO-252-3L | HTC | TO-252-3L | 643 | ₹66.56 · 643 in stock | View |
 | LD29150DT33R#C155674ST · TO-252-2(DPAK) | ST | TO-252-2(DPAK) | 1,470 | ₹146.18 · 1,470 in stock | View |
 | BL1084-33-CY#C167251BL · TO-252-2(DPAK) | BL | TO-252-2(DPAK) | 4,085 | ₹28.46 · 4,085 in stock | View |
 | AZ1084CD-3.3TRG1-TUDI#C53286228Tudi · TO-252-2 | Tudi | TO-252-2 | 145 | ₹44.89 · 145 in stock | View |
