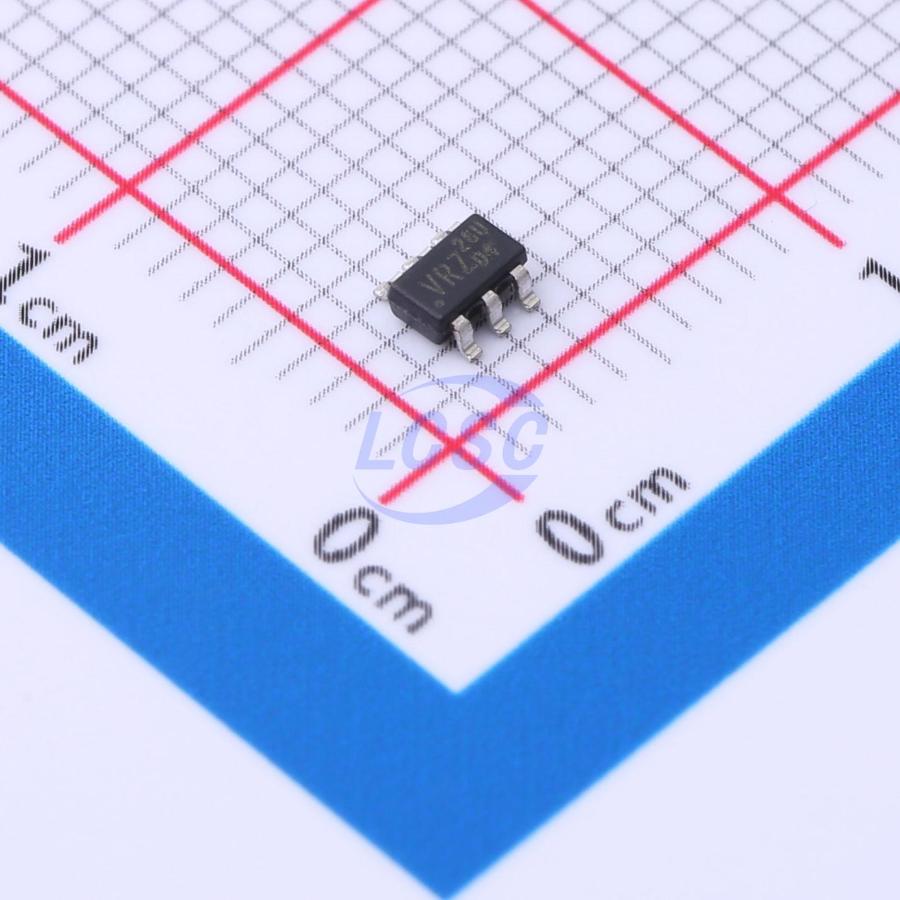

Leadtrend

LD8526UGL

130kHz 200mW 3V~12V SOT-26 AC DC Converters, Offline Switchers RoHS

SOT-26ROHS CompliantActive

Synchronous Rectification Driver with Green Mode Function

Manufacturer: Leadtrend
Manufacturer part #: LD8526UGL
Store part #: C5124419
Package / case: SOT-26
Category: AC DC Converters, Offline Switchers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,730 in stock

#C5124419

Stock & price checked 4 days ago

Quantity	Unit price	Pack price
1+	₹45.51	₹45.51
10+	₹40.13	₹401.30
30+	₹37.73	₹1,131.90
100+	₹34.94	₹3,494.00
500+	₹31.94	₹15,970.00
1,000+	₹31.14	₹31,140.00

Quantity (min 1)

1 × ₹45.51

₹45.51

excl. GST

₹53.70 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

LD8526UGL

₹45.51 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Frequency - Switching: 130kHz
Pd - Power Dissipation: 200mW
Voltage - Supply: 3V~12V
Topology: Flyback;Forward
Features: Synchronous rectification drive;Light load efficient mode;Leading edge blanking;Under-voltage lockout;Under Voltage Protection;Overtemperature protection (OTP)
Feedback System: Secondary-Side Feedback
Working Mode: CCM;DCM;QR

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.045 g

Overview

LD8526U/UP is a secondary side synchronous rectification (SR) driver IC. It is suited for flyback low side and high side synchronous rectification in CCM, DCM and QR mode. For forward freewheeling rectification application, LD8526U/UP can be applied in CCM and DCM operation. In light load condition, LD8526U/UP will enter green mode to reduce operation current by stopping SR MOSFET driving function. LD8526U/UP can generate its own supply voltage through high side rectification applications to charge battery.

Applications

Switching AC/DC adaptor and battery charger
Open frame switching power supply

Key features

Suited for low side and high side flyback synchronous rectification in CCM, DCM and QR(valley lock) mode
Suited for forward freewheeling rectification in CCM and DCM
Self-supplying for operation with low output voltage and/or high–side rectification without an auxiliary winding.
Suited for primary side with peak load function (max. frequency 130kHz)
Suited for PD application, which output voltage range from 3V to 21V, and VCC range from 3V to 9V.
Programmable turn-off level
Fast turn-off total delay of 30ns
200μA ultra-low green mode operation current
Gate source/sink capability: 0.5A/-3A
