STDatasheet (PDF)

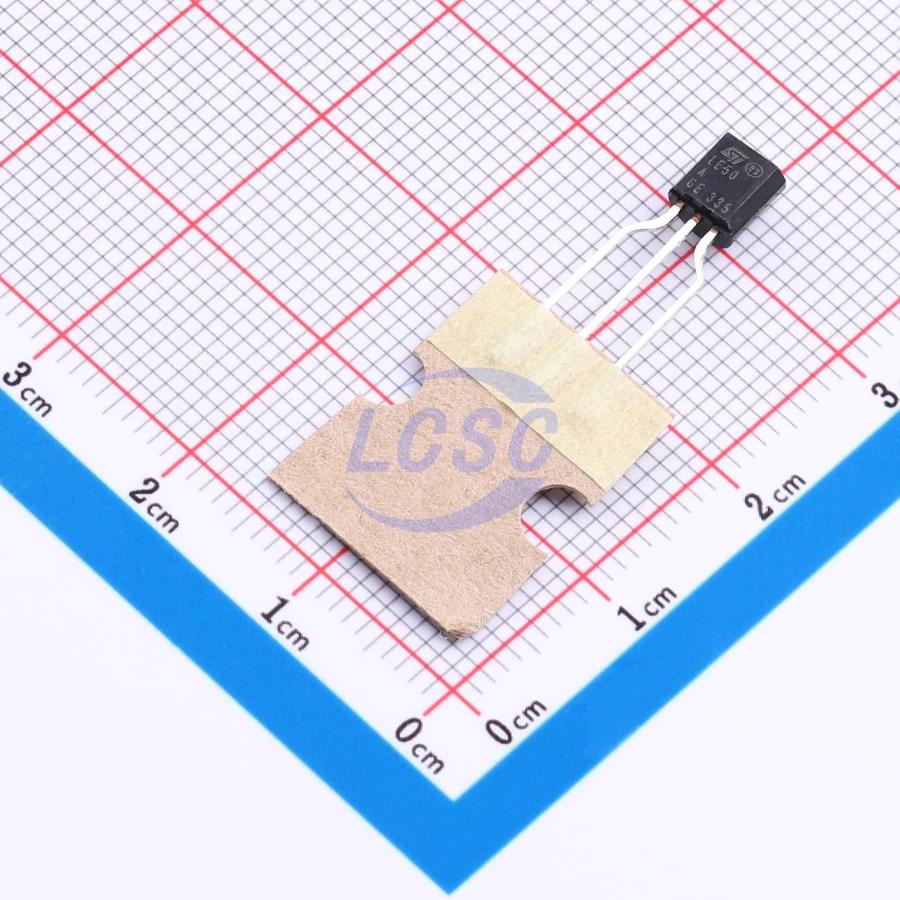

LE50ABZ-AP
5V Positive Fixed TO-92-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-92-3ROHS3 CompliantActive
Very low drop voltage regulators with inhibit
- Manufacturer
- ST
- Manufacturer part #
- LE50ABZ-AP
- Store part #
- C2832777
- Package / case
- TO-92-3
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
496 in stock
#C2832777
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹124.86 | ₹124.86 |
| 10+ | ₹99.81 | ₹998.10 |
| 30+ | ₹87.28 | ₹2,618.40 |
| 100+ | ₹74.96 | ₹7,496.00 |
| 500+ | ₹67.62 | ₹33,810.00 |
| 1,000+ | ₹63.73 | ₹63,730.00 |
1 × ₹124.86
₹124.86
excl. GST
₹147.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per box
LE50ABZ-AP
₹124.86 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Output Current
- 150mA
- Operating Voltage
- 18V
- Features
- Enable control;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Box-packed
- Standard pack
- 2,000 / Box
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.304 g
Overview
The LExxAB and LExxC are very low dropout voltage regulators available in SO-8 and TO-92 packages and in a wide range of output voltages. The very low drop voltage (0.2 V) and the very low quiescent current make them ideal for low noise, low power applications and especially in battery powered systems. They are pin to pin compatible with the older L78Lxx series. Furthermore in the 8 pin configuration (SO-8) they employ a shutdown function, it’s possible to put in stand by a part of the board, even more decreasing the total power consumption. In the three terminal configuration (TO-92) the device is even in ON STATE, maintaining the same electrical characteristics.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LT1121IZ-5#PBF#C661137ADI · TO-92 | ADI | TO-92 | 40 | ₹1,063.02 · 40 in stock | View |
 | AP7381-50V-A#C3746499DIODES · TO-92 | DIODES | TO-92 | 2,330 | ₹21.72 · 2,330 in stock | View |
 | QN7550A-1#C45360138QNHCHIP · TO-92 | QNHCHIP | TO-92 | 280 | ₹8.45 · 280 in stock | View |
 | MD7350#C2978569Mingda Microelectronics · TO-92-3 | Mingda Microelectronics | TO-92-3 | 40 | ₹15.60 · 40 in stock | View |
 | TL750L05CLP#C2868835TI · TO-92-3 | TI | TO-92-3 | 5 | ₹746.28 · 5 in stock | View |
