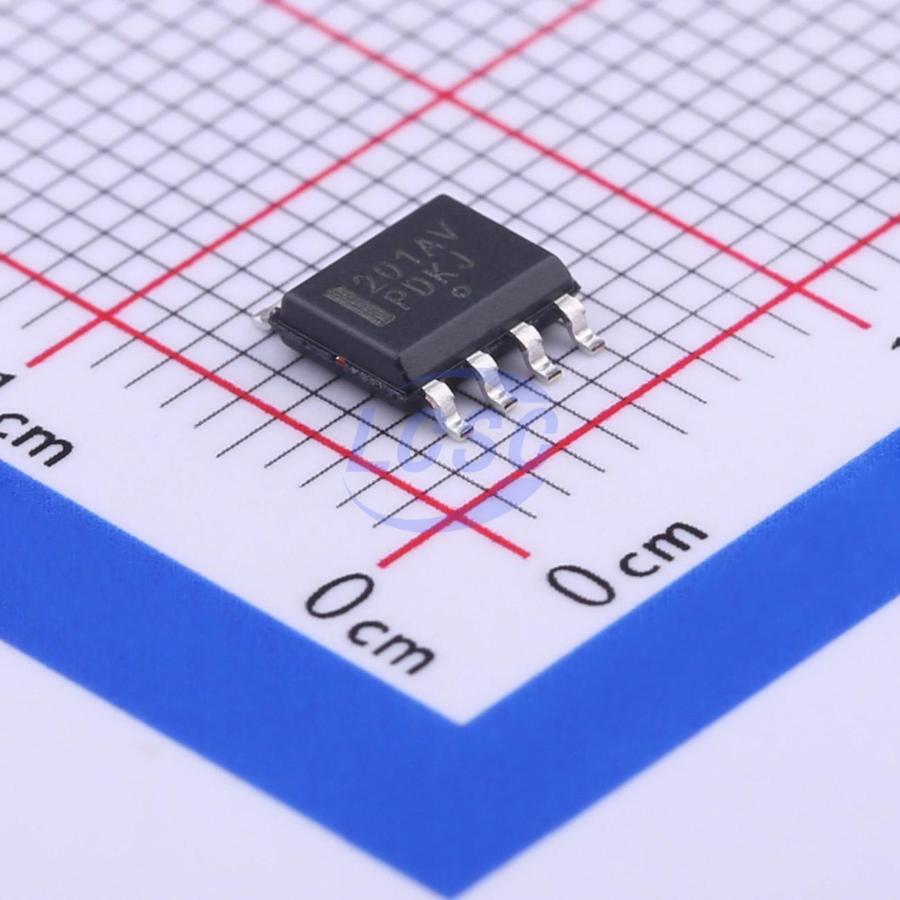

LM201AVDR2G
1 2mV 10V/us 96dB 75nA 1.8mA SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Non Compensated Single Operational Amplifiers
- Manufacturer
- onsemi
- Manufacturer part #
- LM201AVDR2G
- Store part #
- C415722
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
66 in stock
#C415722
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.01 | ₹64.01 |
| 10+ | ₹50.72 | ₹507.20 |
| 30+ | ₹45.06 | ₹1,351.80 |
| 100+ | ₹38.10 | ₹3,810.00 |
| 500+ | ₹34.83 | ₹17,415.00 |
| 1,000+ | ₹33.10 | ₹33,100.00 |
1 × ₹64.01
₹64.01
excl. GST
₹75.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM201AVDR2G
₹64.01 for 1 + GST
Specifications
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 10V/us
- Input Offset Current(Ios)
- 1.5nA
- Operating Temperature
- -40℃~+105℃
- Common Mode Rejection Ratio(CMRR)
- 96dB
- Ib - Input Bias Current
- 75nA
- Input Offset Voltage Drift(Vos TC)
- 15uV/℃
- Quiescent Current
- 1.8mA
- Features
- Decompensated stable
- Dual Supply
- -20V~-5V;5V~20V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
A general purpose operational amplifier that allows the user to choose the compensation capacitor best suited to his needs. With proper compensation, summing amplifier slew rates to 10 V/µs can be obtained.
Key features
- Low Input Offset Current: 20 nA Maximum Over Temperature Range
- External Frequency Compensation for Flexibility
- Class AB Output Provides Excellent Linearity
- Output Short Circuit Protection
- Guaranteed Drift Characteristics
- Pb−Free Packages are Available
