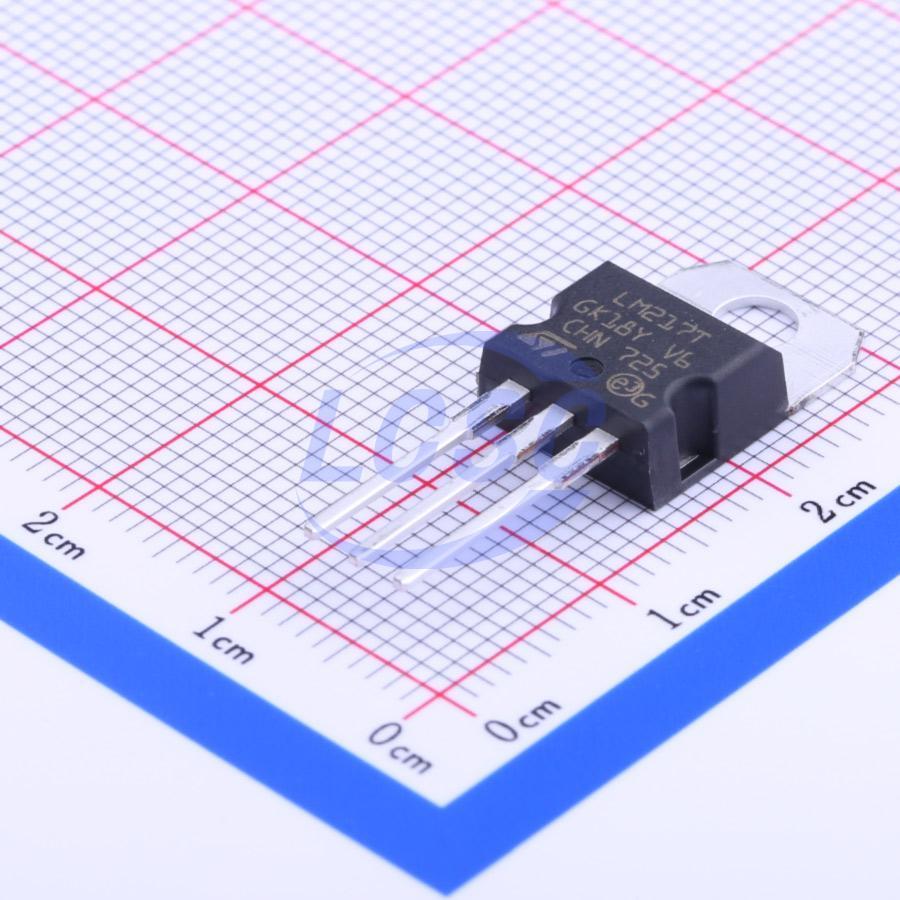

LM217T
1.2V~37V Positive Adjustable TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS3 CompliantActive
1.2V to 37V Adjustable Voltage Regulator
- Manufacturer
- ST
- Manufacturer part #
- LM217T
- Store part #
- C127073
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
198 in stock
#C127073
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹155.77 | ₹155.77 |
| 10+ | ₹131.66 | ₹1,316.60 |
| 50+ | ₹119.49 | ₹5,974.50 |
| 100+ | ₹107.55 | ₹10,755.00 |
| 500+ | ₹100.38 | ₹50,190.00 |
| 1,000+ | ₹96.68 | ₹96,680.00 |
1 × ₹155.77
₹155.77
excl. GST
₹183.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM217T
₹155.77 for 1 + GST
Specifications
- Output Voltage
- 1.2V~37V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+150℃
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 1.5A;400mA
- Features
- Over Current Protection;Thermal shutdown
- Output Type
- Adjustable
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.74 g
Overview
The LM217, LM317 are monolithic integrated circuits in TO - 220, TO - 220FP and D²PAK packages intended for use as positive adjustable voltage regulators. They are designed to supply more than 1.5 A of load current with an output voltage adjustable over a 1.2 to 37 V range. The nominal output voltage is selected by means of a resistive divider, making the device exceptionally easy to use and eliminating the stocking of many fixed regulators.
Key features
- Output voltage range: 1.2 to 37 V
- Output current in excess of 1.5 A
- 0.1 % line and load regulation
- Floating operation for high voltages
- Complete series of protections: current limiting, thermal shutdown and SOA control
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM317T#C22359891KTP · TO-220 | KTP | TO-220 | 110 | ₹28.88 · 110 in stock | View |
 | LM317BTG#C14502onsemi · TO-220 | onsemi | TO-220 | 5,182 | ₹83.43 · 5,182 in stock | View |
 | LM317C#C17730787JSCJ · TO-220-3L | JSCJ | TO-220-3L | 102 | ₹61.72 · 102 in stock | View |
 | LM317T-DG#C18718ST · TO-220 | ST | TO-220 | 24,417 | ₹72.84 · 24,417 in stock | View |
 | LM317ATG#C19723800HANSCHIP semiconductor · TO-220-3 | HANSCHIP semiconductor | TO-220-3 | 790 | ₹34.19 · 790 in stock | View |
