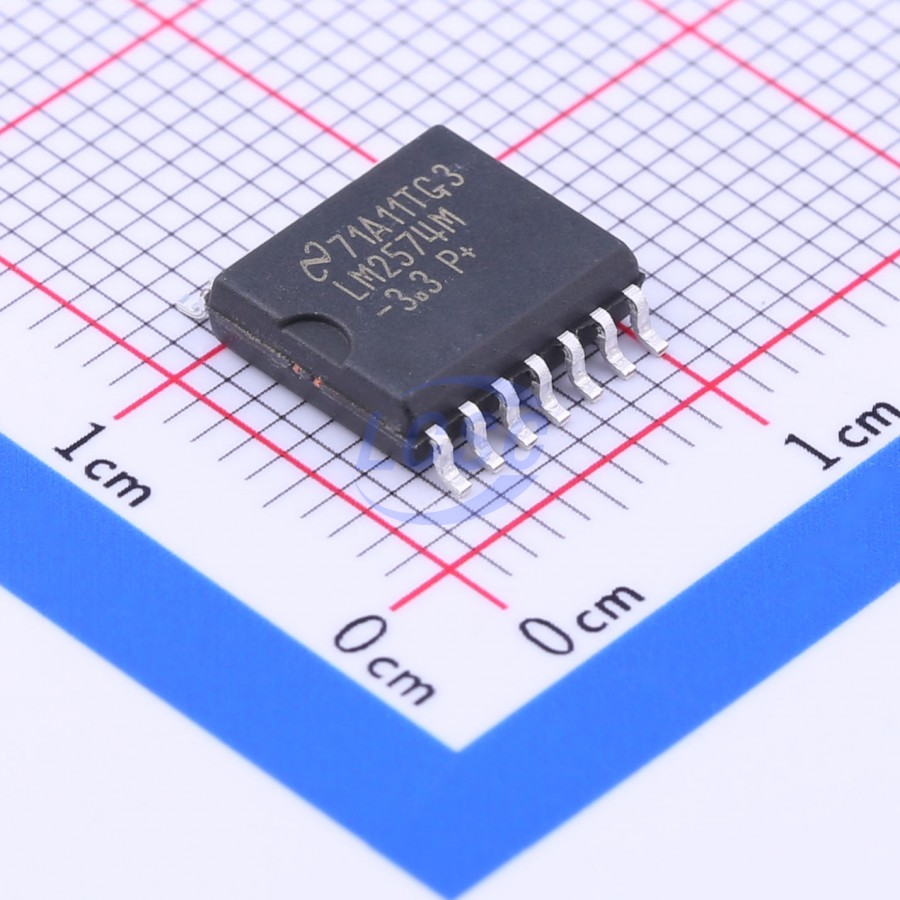

LM2574MX-3.3/NOPB

52kHz Step-down type Fixed 3.3V 500mA SOIC-14-300mil Voltage Regulators - DC DC Switching Regulators RoHS

SOIC-14-300milROHS3 CompliantActive

0.5A Buck Voltage Regulator

Manufacturer: TI
Manufacturer part #: LM2574MX-3.3/NOPB
Store part #: C140238
Package / case: SOIC-14-300mil
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

645 in stock

#C140238

Stock & price checked 10 days ago

Quantity	Unit price	Pack price
1+	₹222.20	₹222.20
10+	₹202.87	₹2,028.70
30+	₹190.71	₹5,721.30
100+	₹178.33	₹17,833.00
500+	₹172.89	₹86,445.00
1,000+	₹170.28	₹1,70,280.00

Quantity (min 1)

1 × ₹222.20

₹222.20

excl. GST

₹262.20 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

LM2574MX-3.3/NOPB

₹222.20 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 52kHz
Function: Step-down type
Number of Outputs: 1
Features: Overcurrent Protection;Cycle-by-cycle current limiting
Output Type: Fixed
Topology: Buck
Operating Voltage: 4V~40V
Switch tube (built-in/external): Built-in
Output Voltage: 3.3V
Output Current: 500mA
Quiescent Current: 5mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.4 g

Overview

The LM2574xx series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 0.5-A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5 V, 12 V, 15 V, and an adjustable output version. Requiring a minimum number of external components, these regulators are simple to use and include internal frequency compensation and a fixed - frequency oscillator. The LM2574xx series offers a high - efficiency replacement for popular three - terminal linear regulators. Because of its high efficiency, the copper traces on the printed - circuit board (PCB) are normally the only heat sinking needed. A standard series of inductors optimized for use with the LM2574 are available from several different manufacturers. This feature greatly simplifies the design of switch - mode power supplies. Other features include a specified ±4% tolerance on output voltage within specified input voltages and output load conditions, and ±10% on the oscillator frequency. External shutdown is included, featuring 50 - μA (typical) standby current. The output switch includes cycle - by - cycle current limiting, as well as thermal shutdown for full protection under fault conditions.

Applications

Simple High - Efficiency Step - Down (Buck) Regulator
Efficient Preregulator for Linear Regulators
On - Card Switching Regulators
Positive - to - Negative Converter (Buck - Boost)

Key features

3.3 - V, 5 - V, 12 - V, 15 - V, and Adjustable Output Versions
Adjustable Version Output Voltage Range: 1.23 V to 37 V (57 V for HV version) ±4% Maximum Over Line and Load Conditions
Specified 0.5 - A Output Current
Wide Input Voltage Range: 40 V, up to 60 V for HV Version
Requires Only 4 External Components
52 - kHz Fixed - Frequency Internal Oscillator
TTL Shutdown Capability, Low - Power Standby Mode
High Efficiency
Uses Readily Available Standard Inductors
Thermal Shutdown and Current - Limit Protection
