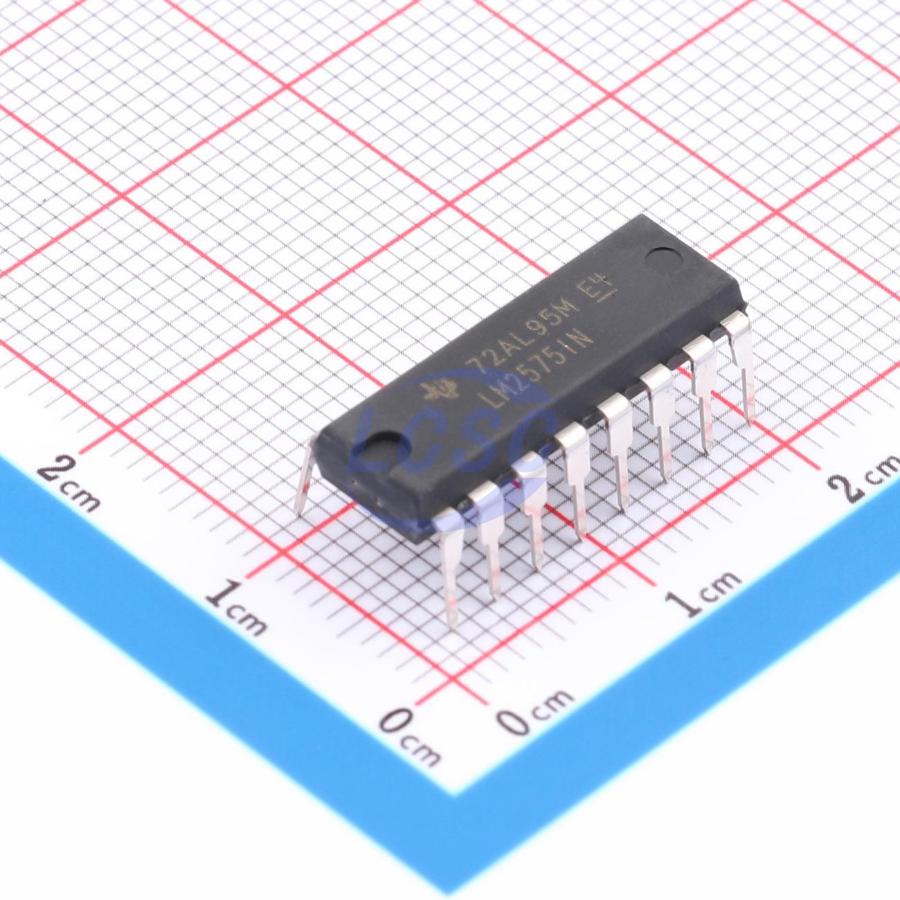

LM2575IN
52kHz Step-down type Adjustable 1A 1.23V~37V PDIP-16 Voltage Regulators - DC DC Switching Regulators RoHS
PDIP-16ROHS3 CompliantActive
High-Efficiency Step-Down Switching Regulator
- Manufacturer
- TI
- Manufacturer part #
- LM2575IN
- Store part #
- C1355968
- Package / case
- PDIP-16
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C1355968
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹474.15 | ₹474.15 |
| 10+ | ₹463.06 | ₹4,630.60 |
| 25+ | ₹455.68 | ₹11,392.00 |
| 100+ | ₹448.29 | ₹44,829.00 |
1 × ₹474.15
₹474.15
excl. GST
₹559.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
LM2575IN
₹474.15 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 52kHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.75V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Output Voltage
- 1.23V~37V
- Quiescent Current
- 5mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 7.16 g
Overview
Adjustable With a Range of 1.23 V to 37 V and ±4% Regulation (Max) Over Line, Load, and Temperature Conditions Specified 1-A Output Current Wide Input Voltage Range 4.75 V to 40 V Uses Readily Available Standard Inductors 52-kHz (Typical) Fixed-Frequency Internal Oscillator TTL Shutdown Capability With 50 μA (Typical) Standby Current High Efficiency…as High as 88% (Typical) Thermal Shutdown and Current-Limit Protection With Cycle-by-Cycle Current Limiting
Applications
- Simple High-Efficiency Step-Down (Buck) Regulator
- Pre-Regulator for Linear Regulators
- On-Card Switching Regulators
- Positive-to-Negative Converter (Buck-Boost)
Key features
- Adjustable With a Range of 1.23 V to 37 V and ±4% Regulation (Max) Over Line, Load, and Temperature Conditions
- Specified 1-A Output Current
- Wide Input Voltage Range 4.75 V to 40 V
- Uses Readily Available Standard Inductors
- 52-kHz (Typical) Fixed-Frequency Internal Oscillator
- TTL Shutdown Capability With 50 μA (Typical) Standby Current
- High Efficiency…as High as 88% (Typical)
- Thermal Shutdown and Current-Limit Protection With Cycle-by-Cycle Current Limiting
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| TL2575-ADJIN#C2866915TI · PDIP-16 | TI | PDIP-16 | On request | ₹231.56 · 0 in stock | View | |
| LM2575YN#C646740MICROCHIP · PDIP-16 | MICROCHIP | PDIP-16 | On request | ₹282.01 · 0 in stock | View | |
