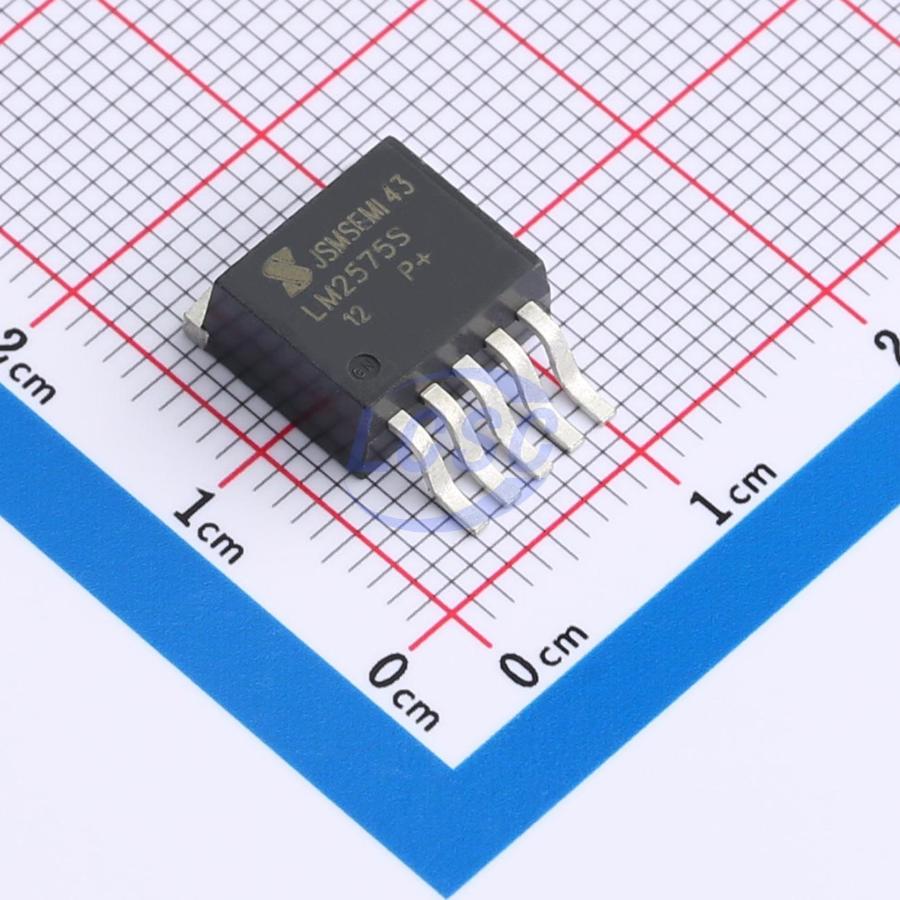

LM2575S-12-JSM
Buck Switching Regulator IC Fixed 12V 1 Output 1A TO-263-5
TO-263-5ROHS CompliantActive
LM2575S-12-JSM is a high-efficiency DC-DC buck converter with a maximum output current of 1A and an input voltage range of 4V to 40V
- Manufacturer
- JSMSEMI
- Manufacturer part #
- LM2575S-12-JSM
- Store part #
- C22470434
- Package / case
- TO-263-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
695 in stock
#C22470434
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.44 | ₹212.20 |
| 50+ | ₹33.84 | ₹1,692.00 |
| 150+ | ₹30.16 | ₹4,524.00 |
| 1,000+ | ₹25.56 | ₹25,560.00 |
| 2,000+ | ₹23.51 | ₹47,020.00 |
| 5,000+ | ₹22.28 | ₹1,11,400.00 |
5 × ₹42.44
₹212.20
excl. GST
₹250.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
LM2575S-12-JSM
₹212.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Function
- Step-down type
- Frequency - Switching
- 52kHz
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Topology
- Buck
- Output Type
- Fixed
- Operating Voltage
- 4V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 12V
- Output Current
- 1A
- Quiescent Current
- 5mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 1.56 g
Overview
Applications
- Micro controller power supplies
- Medical equipment
- Industrial power supplies
- Instrumentation power supplies
Key features
- Pin for pin replacement for National's LM2575T/6T series
- DC-to-DC buck or buck/boost converter requiring only 4 support components
- Fixed or adjustable voltages
- Preset output voltages of 3.3V, 5V and 12V
- Wide output voltage range, 1.23V to 35V
- 82% typical efficiency @ 5V out
- Wide input voltage range, 4V to 40V
- Inhibit/enable control pin
- Industrial temperature range
- T0-220 and T0-263 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM2575SX-12-JSM#C22470432JSMSEMI · TO-263-5 | JSMSEMI | TO-263-5 | 95 | ₹116.58 · 95 in stock | View |
 | LM2576SX-12-JSM#C22470424JSMSEMI · TO-263-5 | JSMSEMI | TO-263-5 | 995 | ₹38.34 · 995 in stock | View |
 | LM2576S-12-JSM#C22470425JSMSEMI · TO-263-5 | JSMSEMI | TO-263-5 | 671 | ₹86.96 · 671 in stock | View |
