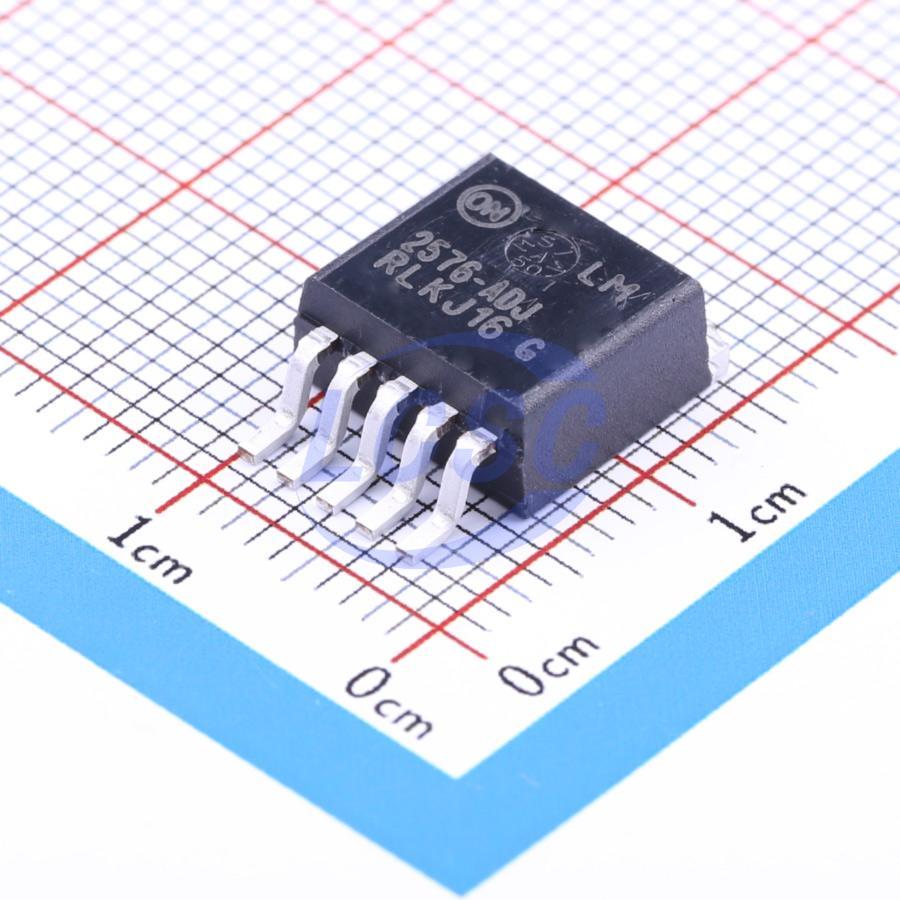

LM2576D2T-ADJG

52kHz Step-down type Adjustable 1.23V~37V 3A D2PAK-5 Voltage Regulators - DC DC Switching Regulators RoHS

D2PAK-5ROHS3 CompliantActive

3.0 A, 15 V, Step-Down Switching Regulator

Manufacturer: onsemi
Manufacturer part #: LM2576D2T-ADJG
Store part #: C69819
Package / case: D2PAK-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

91 in stock

#C69819

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹387.44	₹387.44
10+	₹328.99	₹3,289.90
50+	₹288.57	₹14,428.50
100+	₹253.38	₹25,338.00
500+	₹237.29	₹1,18,645.00
1,000+	₹229.91	₹2,29,910.00

Quantity (min 1)

1 × ₹387.44

₹387.44

excl. GST

₹457.18 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 50 per tube

LM2576D2T-ADJG

₹387.44 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 52kHz
Function: Step-down type
Number of Outputs: 1
Features: Cycle-by-cycle current limiting;Overcurrent Protection
Topology: Buck
Output Type: Adjustable
Operating Voltage: 7V~40V
Switch tube (built-in/external): Built-in
Output Voltage: 1.23V~37V
Output Current: 3A
Quiescent Current: 5mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 50 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 33.33 g

Overview

The LM2576 series of regulators are monolithic integrated circuits ideally suited for easy and convenient design of a step−down switching regulator (buck converter). All circuits of this series are capable of driving a 3.0 A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3 V, 5.0 V, 12 V, 15 V, and an adjustable output version.

Applications

Simple High−Efficiency Step−Down (Buck) Regulator
Efficient Pre−Regulator for Linear Regulators
On−Card Switching Regulators
Positive to Negative Converter (Buck−Boost)
Negative Step−Up Converters
Power Supply for Battery Chargers

Key features

3.3 V, 5.0 V, 12 V, 15 V, and Adjustable Output Versions
Adjustable Version Output Voltage Range, 1.23 to 37 V ±4% Maximum Over Line and Load Conditions
Guaranteed 3.0 A Output Current
Wide Input Voltage Range
Requires Only 4 External Components
52 kHz Fixed Frequency Internal Oscillator
TTL Shutdown Capability, Low Power Standby Mode
High Efficiency
Uses Readily Available Standard Inductors
Thermal Shutdown and Current Limit Protection
Moisture Sensitivity Level (MSL) Equals 1
Pb−Free Packages are Available
