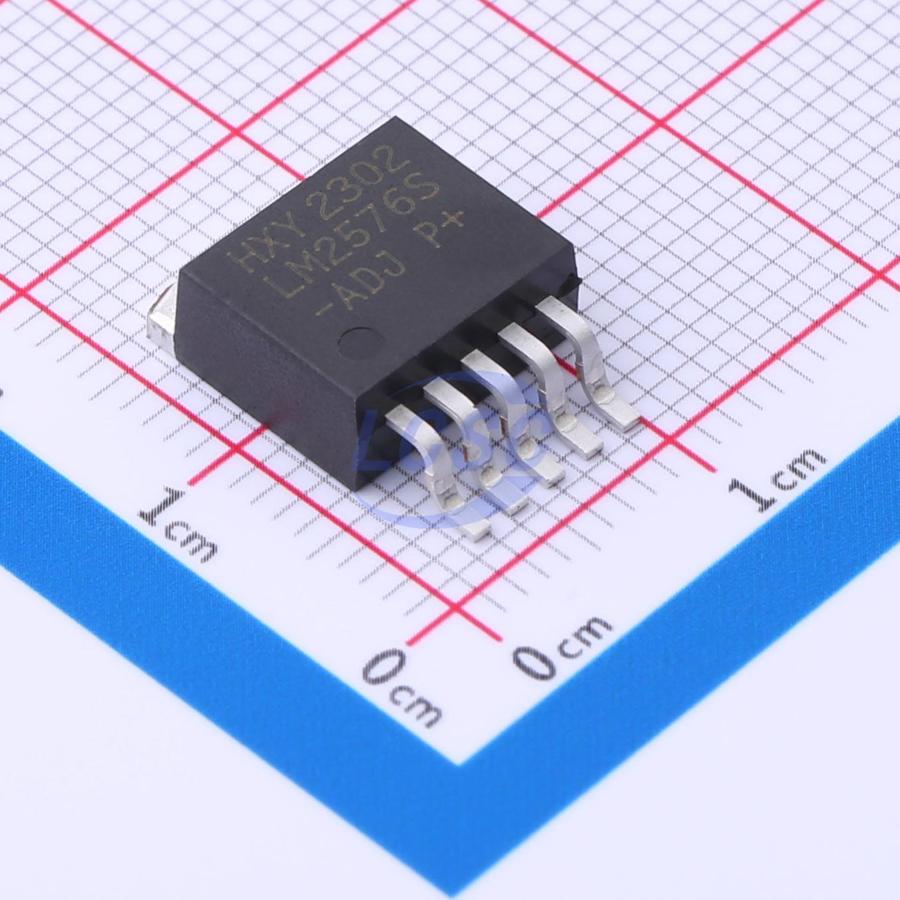

LM2576S-ADJ

The LM2576 series are easy-to-use fixed and adjustable step-down switching mode voltage regulators. These devices offer fixed output voltage versions (3.3V, 5V, 12V) as well as an adjustable output version. Both versions are capable of driving a 2A load with excellent line and load regulation. These regulators require a minimum number of external components, are simple to use, and include internal frequency compensation and a fixed-frequency oscillator. Output voltage is guaranteed to ±3% tolerance under specified input voltage and output load conditions. Oscillator frequency is guaranteed to ±15% tolerance. An external shutdown function is included, with a typical standby current of 8μA. Self-protection features include two-stage frequency-reducing current limiting for the output switch, and thermal shutdown to provide full protection under fault conditions.

Applications

• High-efficiency step-down regulator
• On-board switching regulator
• Positive-to-negative converter
• LCD monitors and LCD TVs
• DVD recorders and PDP TVs
• Battery chargers
• Step-down to 3.3V for microprocessors

Key features

• 3.3V, 5V, 12V, and adjustable output versions
• Output adjustable from 1.23V to 37V
• Fixed 52kHz internal oscillator frequency
• Guaranteed 2A output load current
• Input voltage range up to 40V
• Low quiescent current standby mode, IQ typical 8μA
• TTL shutdown capability
• Excellent line and load regulation
• Only 4 external components required
• High efficiency
• Thermal shutdown and current limiting protection
