Slkor

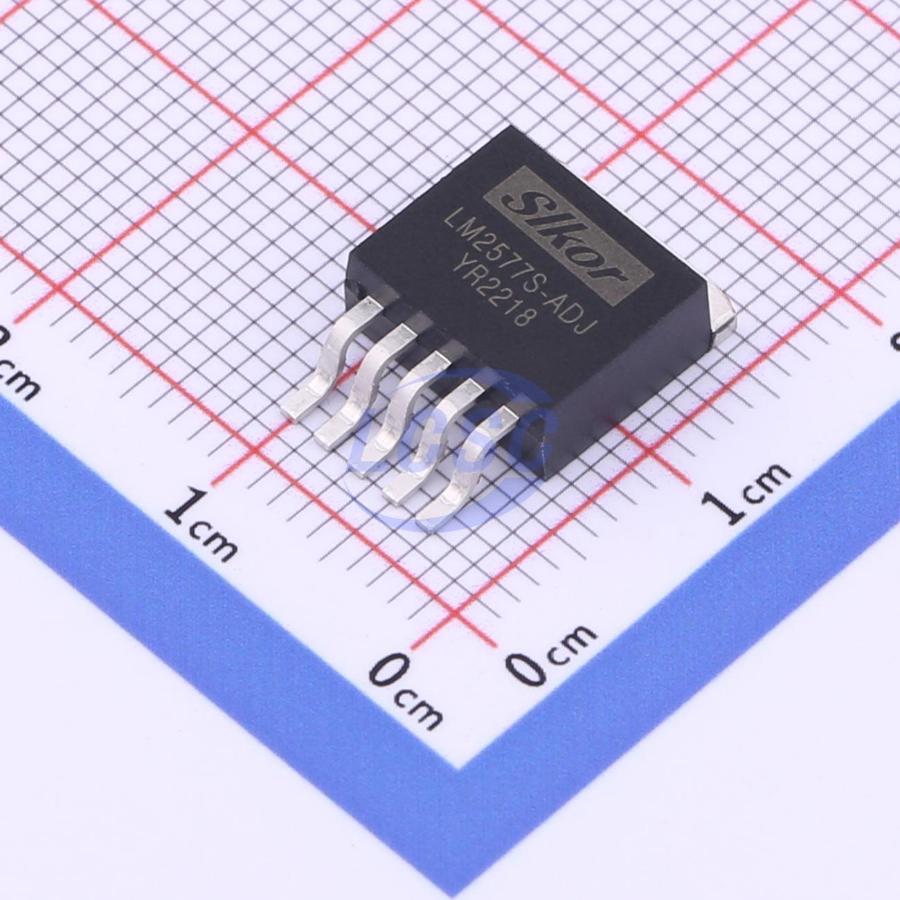

LM2577S-ADJ

52kHz Boost Adjustable 3A TO-263 Voltage Regulators - DC DC Switching Regulators

TO-263RoHSActive

LM2577S-ADJ is a versatile boost, flyback, and forward converter

Manufacturer: Slkor
Manufacturer part #: LM2577S-ADJ
Store part #: C5122561
Package / case: TO-263
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,600 in stock

#C5122561

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
1+	₹241.78	₹241.78
10+	₹204.06	₹2,040.60
30+	₹183.34	₹5,500.20
100+	₹160.02	₹16,002.00
500+	₹142.14	₹71,070.00
800+	₹137.57	₹1,10,056.00

Quantity (min 1)

1 × ₹241.78

₹241.78

excl. GST

₹285.30 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 800 per reel

LM2577S-ADJ

₹241.78 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 52kHz
Function: Boost
Number of Outputs: 1
Features: Overcurrent Protection
Topology: Boost;Flyback;Forward
Output Type: Adjustable
Operating Voltage: 3.5V~40V
Switch tube (built-in/external): Built-in
Output Current: 3A
Quiescent Current: 7.5mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 800 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.66 g

Overview

The LM2577S/T-ADJ is a monolithic integrated circuit that provide all of the power and control functions for step-up (boost), flyback, and forward converter switching regulators. Requiring a minimum number of external components, these regulators are cost effective, and simple to use. Included on the chip is a 3.0A NPN switch and its associated protection circuitry, consisting of current and thermal limiting, and undervoltage lockout. Other features include a 52 kHz fixed-frequency oscillator that requires no external components, a soft start mode to reduce in-rush current during start-up, and current mode control for improved rejection of input voltage and output load transients. The LM2577S is available in TO263-5L package. The LM2577T is available in TO220-5L package.

Applications

Simple boost regulator
Flyback and forward regulators
Multiple-output regulator

Key features

Requires few external components
NPN output switches 3.0A, can stand off 65V
Wide input voltage range: 3.5V to 40V
Current-mode operation for improved transient response, line regulation, and current limit
52 kHz internal oscillator
Soft-start function reduces in-rush current during start-up
Output switch protected by current limit, under-voltage lockout, and thermal shutdown
