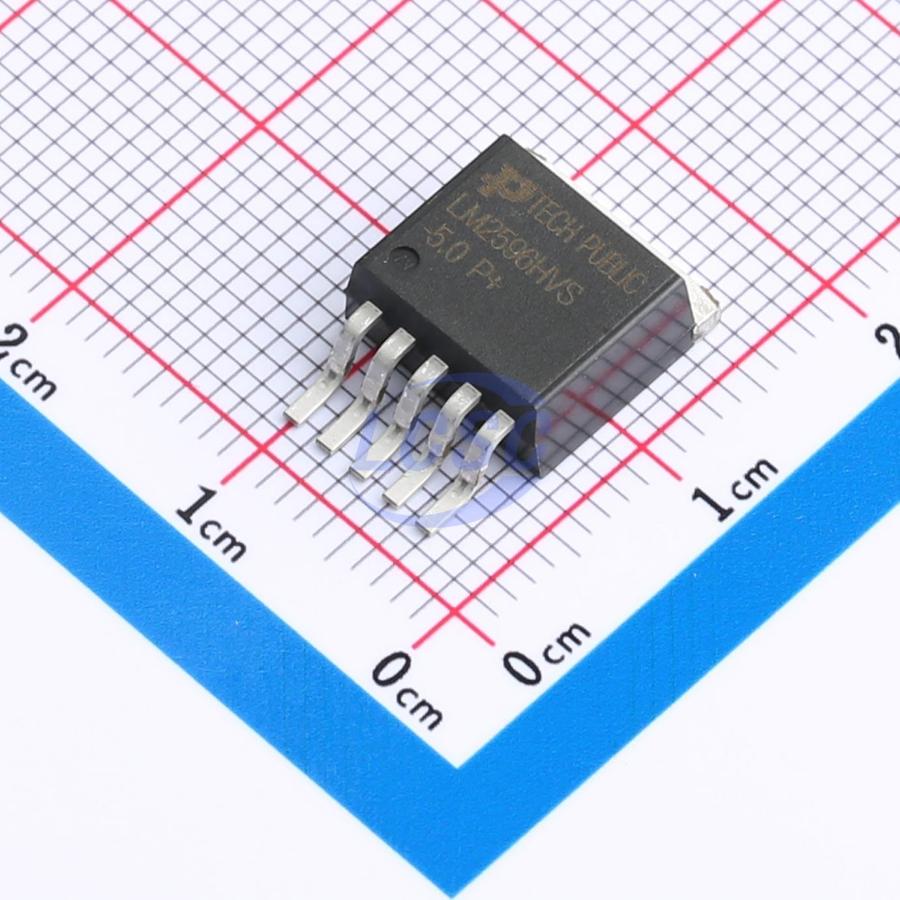

LM2596HVS-5.0
Step-down type 150kHz Fixed 5V 3A TO-263-5L Voltage Regulators - DC DC Switching Regulators
TO-263-5LRoHSActive
60V/3A/150kHz Step-Down Switching Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LM2596HVS-5.0
- Store part #
- C18197847
- Package / case
- TO-263-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
324 in stock
#C18197847
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹133.81 | ₹133.81 |
| 10+ | ₹107.73 | ₹1,077.30 |
| 30+ | ₹94.81 | ₹2,844.30 |
| 100+ | ₹81.88 | ₹8,188.00 |
| 500+ | ₹74.13 | ₹37,065.00 |
| 800+ | ₹70.03 | ₹56,024.00 |
1 × ₹133.81
₹133.81
excl. GST
₹157.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
LM2596HVS-5.0
₹133.81 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Function
- Step-down type
- Frequency - Switching
- 150kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Fixed
- Topology
- Buck
- Operating Voltage
- 4.5V~60V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 5V
- Output Current
- 3A
- Quiescent Current
- 5mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.848 g
Overview
The LM2596HVS series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 3A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V, 5V, 12V, and an adjustable output version. Available in a standard 5-lead TO-220 package and a 5-lead TO-263 surface mount package. External shutdown is included, featuring typically 30uA standby current. The output switch includes cycle-bycycle current limiting, as well as thermal shutdown, and protection from output short for full protection under fault conditions.
Key features
- Simple high-efficiency step-down (buck) regulator
- Efficient pre-regulator for linear regulators
- On-card switching regulators
- 3.3V, 5V, 12V and Adjustable output versions
- Adjustable version output voltage range, 1.23V to 57V ±4% max over line and load condition
- Available in TO-263
- Guaranteed 3A output load current
- Input voltage range up to 60V
- Requires only 4 external components
- Excellent line and load regulation specifications
- 150kHz fixed frequency internal oscillator
- Low power standby mode, ISTB typically 30uA
- High efficiency
- Thermal shutdown and current limit protection
- Output short protection by reduction of frequency by 3 times
