TECH PUBLICDatasheet (PDF)

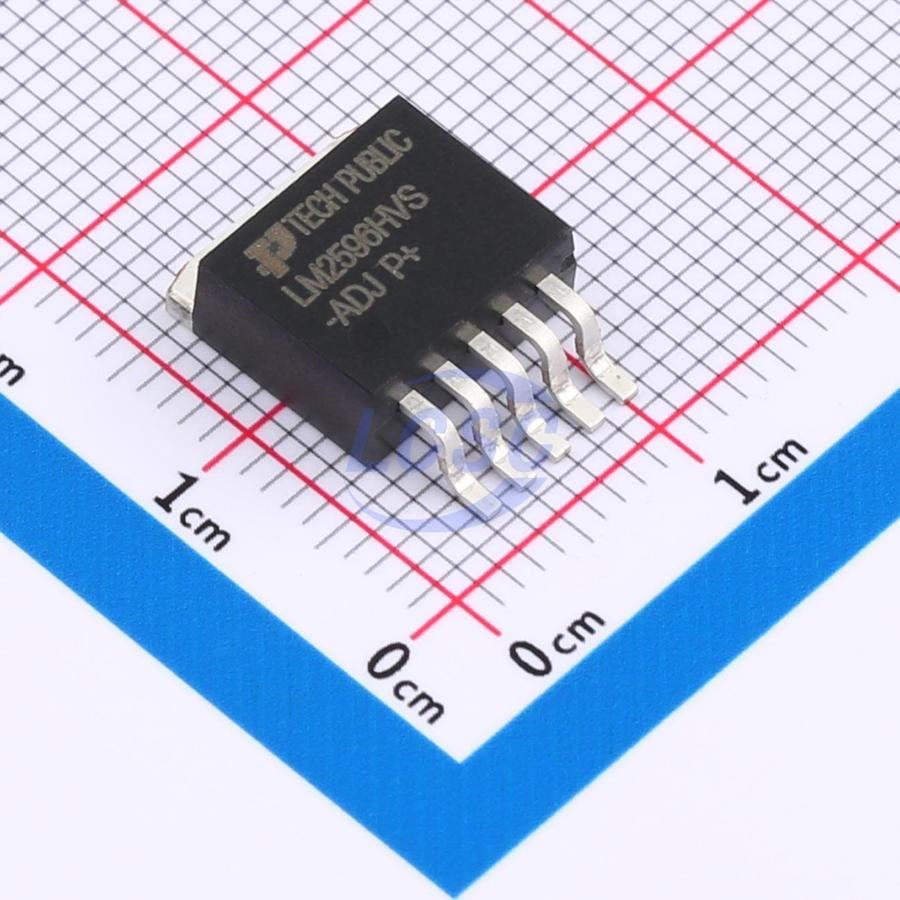

LM2596HVS-ADJ
Step-down type 120kHz~180kHz Adjustable 1.23V~57V 3A TO-263-5 Voltage Regulators - DC DC Switching Regulators
TO-263-5RoHSActive
60V/3A/150kHz Step-Down Switching Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LM2596HVS-ADJ
- Store part #
- C18221477
- Package / case
- TO-263-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,991 in stock
#C18221477
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹160.22 | ₹160.22 |
| 10+ | ₹128.30 | ₹1,283.00 |
| 30+ | ₹112.24 | ₹3,367.20 |
| 100+ | ₹96.39 | ₹9,639.00 |
| 500+ | ₹84.46 | ₹42,230.00 |
| 800+ | ₹79.46 | ₹63,568.00 |
1 × ₹160.22
₹160.22
excl. GST
₹189.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
LM2596HVS-ADJ
₹160.22 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Function
- Step-down type
- Frequency - Switching
- 120kHz~180kHz
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~60V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.23V~57V
- Output Current
- 3A
- Quiescent Current
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.971 g
Overview
The LM2596HVS series of regulators are monolithic integrated circuits that provide all the active functions for a step-down (buck) switching regulator, capable of driving a 3A load with excellent line and load regulation. These devices are available in fixed output voltages of 3.3V, 5V, 12V, and an adjustable output version. Available in a standard 5-lead TO-220 package and a 5-lead TO-263 surface mount package. External shutdown is included, featuring typically 30 μA standby current. The output switch includes cycle-by-cycle current limiting, as well as thermal shutdown, and protection from output short for full protection under fault conditions.
Applications
- On-card switching regulators
Key features
- Simple high-efficiency step-down (buck) regulator
- Efficient pre-regulator for linear regulators
- 3.3V, 5V, 12V and Adjustable output versions
- Adjustable version output voltage range, 1.23V to 57V ±4% max over line and load condition
- Available in TO-263
- Guaranteed 3A output load current
- Input voltage range up to 60V
- Requires only 4 external components
- Excellent line and load regulation specifications
- 150kHz fixed frequency internal oscillator
- Low power standby mode, ISTB typically 30uA
- High efficiency
- Thermal shutdown and current limit protection
- Output short protection by reduction of frequency by 3 times
