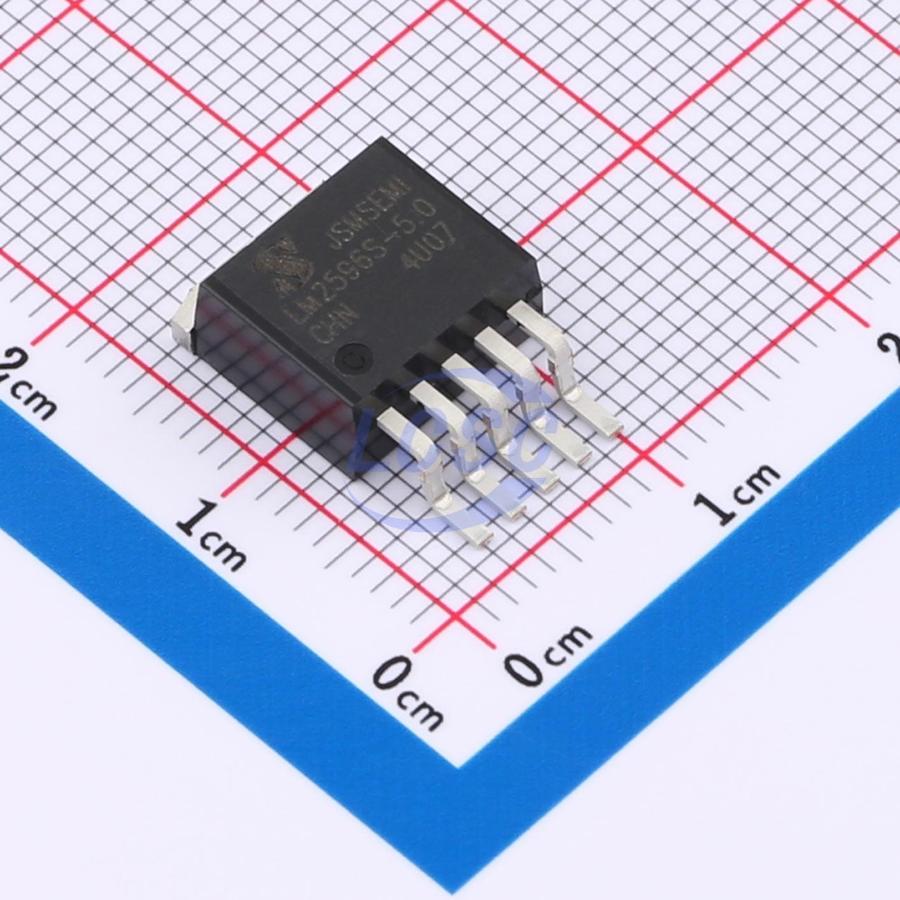

LM2596SX-5.0-JSM

Buck Switching Regulator IC Fixed 1.23V~37V 1 Output 3A TO-263-5

TO-263-5ROHS CompliantActive

3A 150KHz DC regulated power supply converter

Manufacturer: JSMSEMI
Manufacturer part #: LM2596SX-5.0-JSM
Store part #: C22470412
Package / case: TO-263-5
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,180 in stock

#C22470412

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
5+	₹38.71	₹193.55
50+	₹30.48	₹1,524.00
150+	₹26.95	₹4,042.50
500+	₹22.56	₹11,280.00
2,500+	₹20.60	₹51,500.00
5,000+	₹19.42	₹97,100.00

Quantity (min 5, multiples of 5)

5 × ₹38.71

₹193.55

excl. GST

₹228.39 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 500 per reel

LM2596SX-5.0-JSM

₹193.55 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃@(TJ)
Frequency - Switching: 127kHz~173kHz
Function: Step-down type
Number of Outputs: 1
Features: Overcurrent Protection
Topology: Buck
Output Type: Fixed
Operating Voltage: 5V~40V
Switch tube (built-in/external): Built-in
Output Voltage: 1.23V~37V
Output Current: 3A
Quiescent Current: 2mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 1.61 g

Overview

The LM2596SX/LM2596HV is a 150KHz fixed-frequency PWM DC-DC switching voltage regulator featuring 3A output current drive capability, high efficiency, low ripple, and excellent line and load regulation. The device operates in PWM modulation mode with a linearly adjustable duty cycle range of 0~100%. The LM2596SX/LM2596HV integrates a fixed-frequency oscillator and frequency compensation module, requiring minimal external components for a simple implementation. Additional features include enable with hysteresis, over-temperature protection, overcurrent protection, and hiccup overcurrent protection. When secondary overcurrent protection is triggered, the built-in frequency reduction function decreases the switching frequency from 150KHz to 50KHz.

Applications

LCD monitors, LCD TVs
Digital photo frames
TV set-top boxes
Modems
Various telephony and networking equipment

Key features

Input voltage range 4.5V to 40V, 60V for HV models
Regulated output options: 3.3V, 5V, 12V, and adjustable output version with adjustment range 1.23V to 37V, 57V for HV models
Duty cycle adjustable range 0~100%
Minimum saturation voltage drop 1.5V
150KHz fixed operating frequency
3A fixed current output capability
ON_OFF hysteresis switching function
Built-in over-temperature protection and overcurrent protection
Built-in frequency compensation
High efficiency, line regulation, and load regulation
