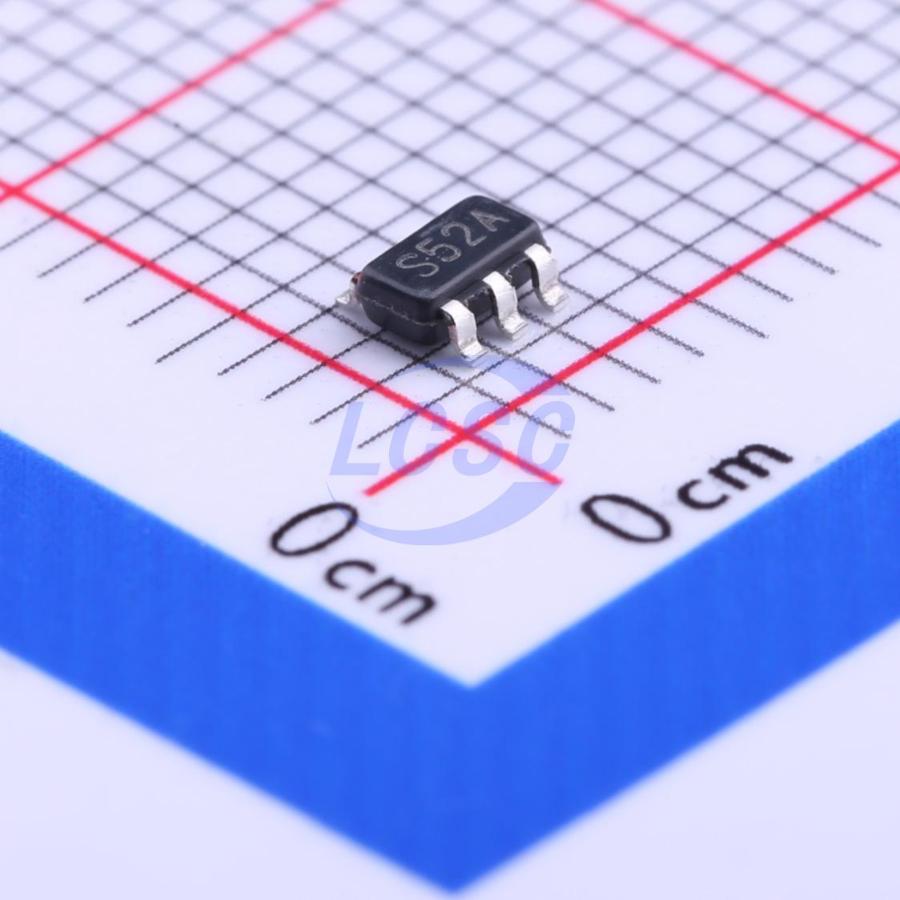

LM2733XMFX/NOPB
1.6MHz Boost Adjustable 2.7V~40V 1A SOT-23-5 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-5ROHS3 CompliantActive
High-Frequency Switching Boost Converter
- Manufacturer
- TI
- Manufacturer part #
- LM2733XMFX/NOPB
- Store part #
- C80169
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,222 in stock
#C80169
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹98.33 | ₹98.33 |
| 10+ | ₹79.62 | ₹796.20 |
| 30+ | ₹70.05 | ₹2,101.50 |
| 100+ | ₹60.70 | ₹6,070.00 |
| 500+ | ₹55.26 | ₹27,630.00 |
| 1,000+ | ₹52.22 | ₹52,220.00 |
1 × ₹98.33
₹98.33
excl. GST
₹116.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM2733XMFX/NOPB
₹98.33 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 1.6MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 2.7V~14V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 2.7V~40V
- Output Current
- 1A
- Quiescent Current
- 400uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.067 g
Overview
The LM2733 switching regulators are current-mode boost converters operating fixed frequency of 1.6 MHz (“X” option) and 600 kHz (“Y” option). The use of SOT-23 package, made possible by the minimal power loss of the internal 1-A switch, and use of small inductors and capacitors result in the industry's highest power density. The 40-V internal switch makes these solutions perfect for boosting to voltages of 16 V or greater.
Applications
- White LED Current Source
- PDA’s and Palm-Top Computers
- Digital Cameras
- Portable Phones and Games
- Local Boost Regulator
Key features
- 40-V DMOS FET Switch
- 1.6 MHz (“X”), 0.6 MHz (“Y”) Switching Frequency
- Low RDS(ON) DMOS FET Switch Current up to 1A
- Wide Input Voltage Range (2.7 - 14 V)
- Low Shutdown Current (<1 μA)
- 5-Lead SOT-23 Package
- Uses Tiny Capacitors and Inductors
- Cycle-by-Cycle Current Limiting
- Internally Compensated
