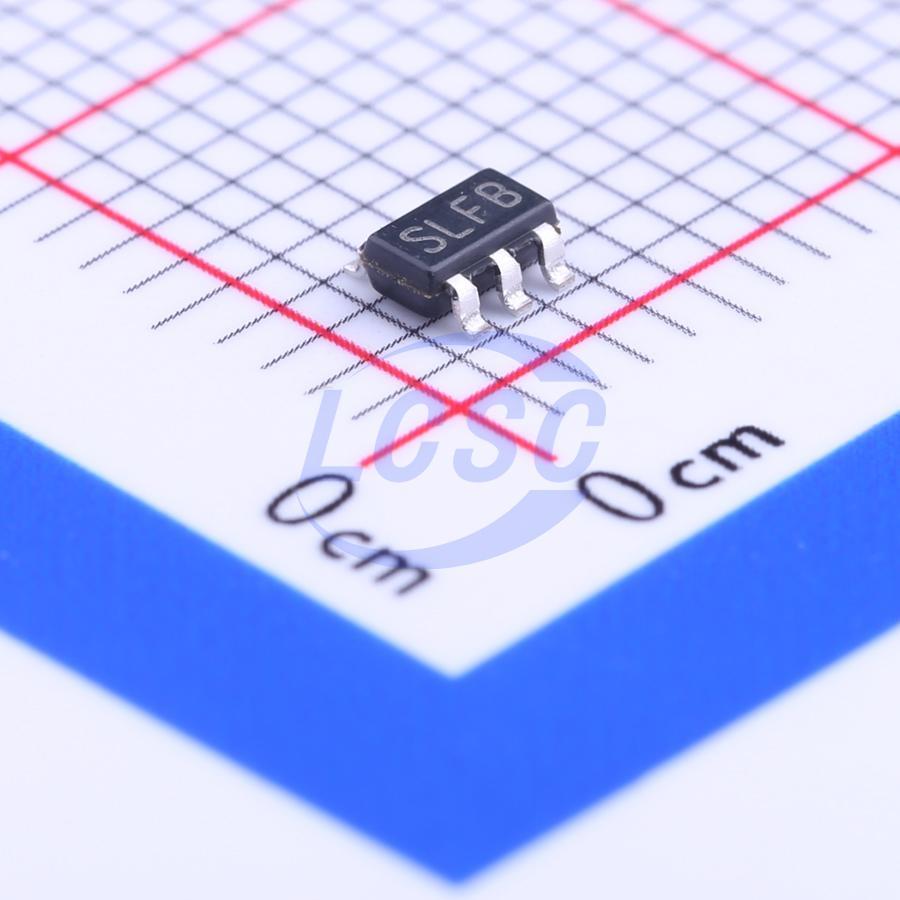

LM2735YMFX/NOPB

The LM2735 device is an easy-to-use, space-efficient 2.1-A low-side switch regulator, ideal for Boost and SEPIC DC-DC regulation. The device provides all the active functions to provide local DC-DC conversion with fast-transient response and accurate regulation in the smallest PCB area. Switching frequency is internally set to either 520 kHz or 1.6 MHz, allowing the use of extremely small surface mount inductor and chip capacitors, while providing efficiencies of up to 90%. Current-mode control and internal compensation provide ease-of-use, minimal component count, and high-performance regulation over a wide range of operating conditions. External shutdown features an ultra-low standby current of 80 nA, ideal for portable applications. Tiny SOT-23, WSON, and MSOP-PowerPAD packages provide space savings. Additional features include internal soft start, circuitry to reduce inrush current, pulse-bypulse current limit, and thermal shutdown.

Applications

• LCD Display Backlighting For Portable Applications
• OLED Panel Power Supply
• USB-Powered Devices
• Digital Still and Video Cameras
• White LED Current Source
• Automotive

Key features

• Input Voltage Range: 2.7 V to 5.5 V
• Output Voltage Range: 3 V to 24 V
• 2.1-A Switch Current Over Full Temperature Range
• Current-Mode Control
• Logic High Enable Pin
• Ultra-Low Standby Current of 80 nA in Shutdown
• 170 mΩ NMOS Switch
• ±2% Feedback Voltage Accuracy
• Ease-of-Use, Small Total Solution Size
• Internal Soft Start
• Internal Compensation
• Two Switching Frequencies: 520 kHz (LM2735-Y), 1.6 MHz (LM2735-X)
• Uses Small Surface Mount Inductors and Chip Capacitors
• Tiny SOT-23, WSON, and MSOP-PowerPAD Packages
• LM2735-Q1 is AEC-Q100 Grade 1 Qualified and is Manufactured on an Automotive Grade Flow
