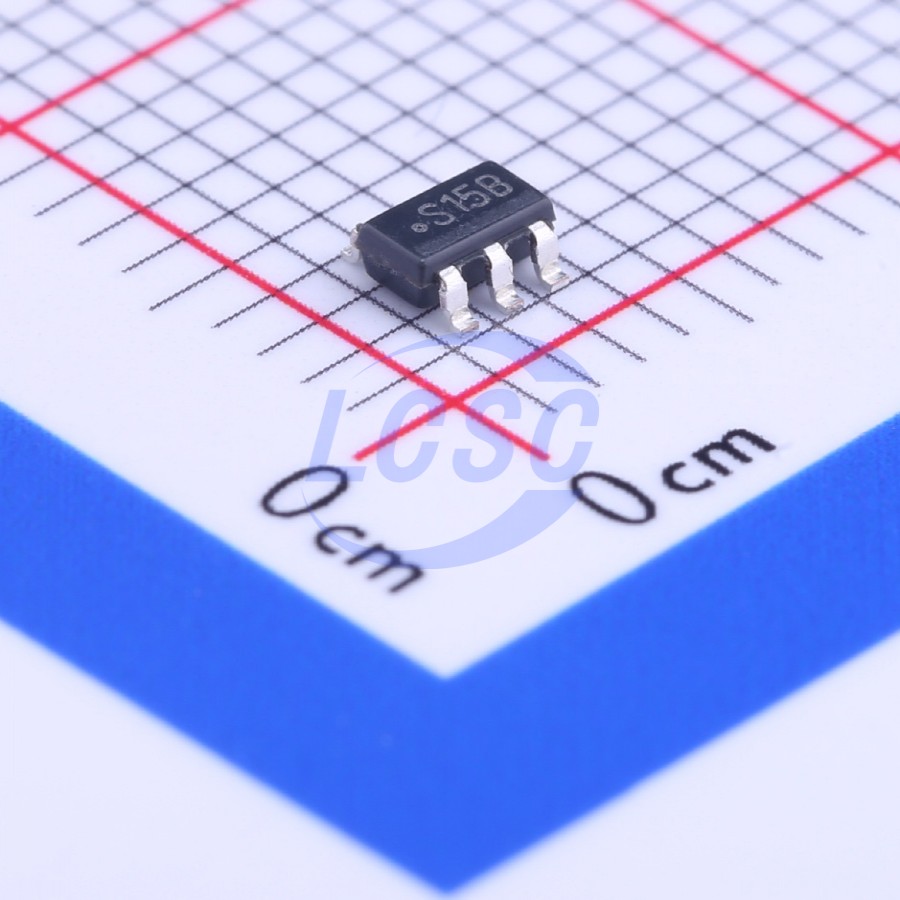

LM2765M6X/NOPB
50kHz boost converter 20mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators RoHS
SOT-23-6ROHS3 CompliantActive
Switched-Capacitor Voltage Converter
- Manufacturer
- TI
- Manufacturer part #
- LM2765M6X/NOPB
- Store part #
- C140270
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
563 in stock
#C140270
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹153.11 | ₹153.11 |
| 10+ | ₹127.21 | ₹1,272.10 |
| 30+ | ₹112.94 | ₹3,388.20 |
| 100+ | ₹96.75 | ₹9,675.00 |
| 500+ | ₹89.63 | ₹44,815.00 |
| 1,000+ | ₹86.39 | ₹86,390.00 |
1 × ₹153.11
₹153.11
excl. GST
₹180.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM2765M6X/NOPB
₹153.11 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 50kHz
- Function
- boost converter
- Features
- Cascade support;Low-power standby;Output short-circuit protection
- Operating Voltage
- 1.8V~5.5V
- Output Current
- 20mA
- Quiescent Current
- 130uA
- Energy Efficiency
- 92%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.057 g
Overview
The LM2765 CMOS charge-pump voltage converter operates as a voltage doubler for an input voltage in the range of 1.8 V to 5.5 V. Two low-cost capacitors and a diode are used in this circuit to provide up to 20 mA of output current. The LM2765 operates at 50 kHz switching frequency to reduce output resistance and voltage ripple. With an operating current of only 130 μA (operating efficiency greater than 90% with most loads) and 0.1 μA typical shutdown current, the LM2765 provides ideal performance for battery powered systems. The device is manufactured in a 6-pin SOT-23 package.
Applications
- Cellular Phones
- Pagers
- PDAs
- Operational Amplifier Power Supplies
- Interface Power Supplies
- Handheld Instruments
Key features
- Doubles Input Supply Voltage
- SOT-23 6-Pin Package
- 20-Ω Typical Output Impedance
- 90% Typical Conversion Efficiency at 20 mA
- 0.1 μA Typical Shutdown Current
