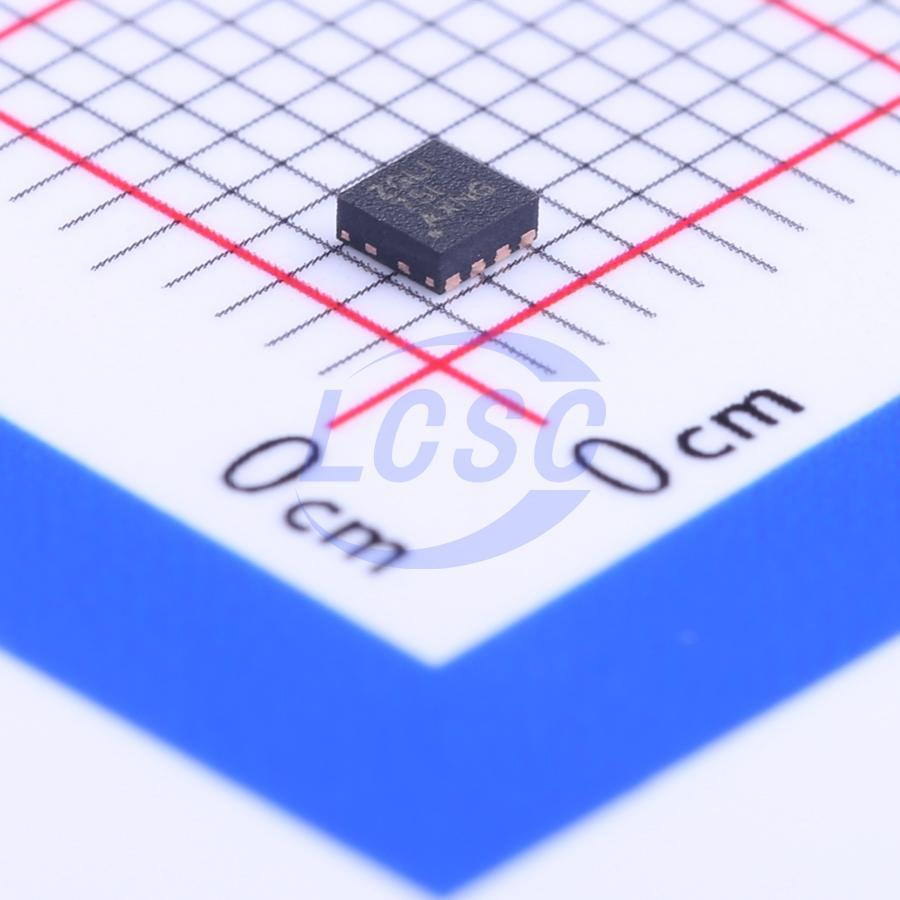

LM27761DSGR
Inverted 2MHz -5V~-1.5V 250mA WFDFN-8-EP(2x2) Voltage Regulators - DC DC Switching Regulators RoHS
WFDFN-8-EP(2x2)ROHS3 CompliantActive
Low-Noise, Regulated, Switched-Capacitor Voltage Inverter
- Manufacturer
- TI
- Manufacturer part #
- LM27761DSGR
- Store part #
- C129351
- Package / case
- WFDFN-8-EP(2x2)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20,005 in stock
#C129351
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹175.15 | ₹175.15 |
| 10+ | ₹154.94 | ₹1,549.40 |
| 30+ | ₹140.60 | ₹4,218.00 |
| 100+ | ₹128.86 | ₹12,886.00 |
| 500+ | ₹113.43 | ₹56,715.00 |
| 1,000+ | ₹111.04 | ₹1,11,040.00 |
1 × ₹175.15
₹175.15
excl. GST
₹206.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM27761DSGR
₹175.15 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- Inverted
- Frequency - Switching
- 2MHz
- Features
- Low ripple / low noise architecture;Low-power standby;Output short-circuit protection;Overcurrent Protection
- Operating Voltage
- 2.7V~5.5V
- Output Voltage
- -5V~-1.5V
- Output Current
- 250mA
- Energy Efficiency
- 80%
- Quiescent Current
- 370uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.283 g
Overview
Applications
- Operational Amplifier Power
- Wireless Communication Systems
- Cellular-Phone Power-Amplifier Biasing
- Interface Power Supplies
- Handheld Instrumentation
- Hi-Fi Headphone Amplifiers
- Powering Data Converters
- Driving power amplifiers
- DAC bias rails
- Other high-current, low-noise voltage applications
Key features
- Inverts and regulates the input supply voltage
- Low output ripple
- Shutdown lowers quiescent current to 7 μA (Typical)
- Up to 250-mA output current
- 2.5-Ω inverter output impedance, V_IN = 5 V
- ±4% regulation at peak load
- 370-μA quiescent current
- 2-MHz (Typical) low-noise fixed-frequency operation
- 35-dB (Typical) LDO PSRR at 2 MHz with 80-mA load current
- 30-mV LDO dropout voltage at 100 mA, V_OUT = -5 V
- Current limit and thermal protection
- Create a custom design using the LM27761 with the WEBENCH Power Designer
