onsemiDatasheet (PDF)

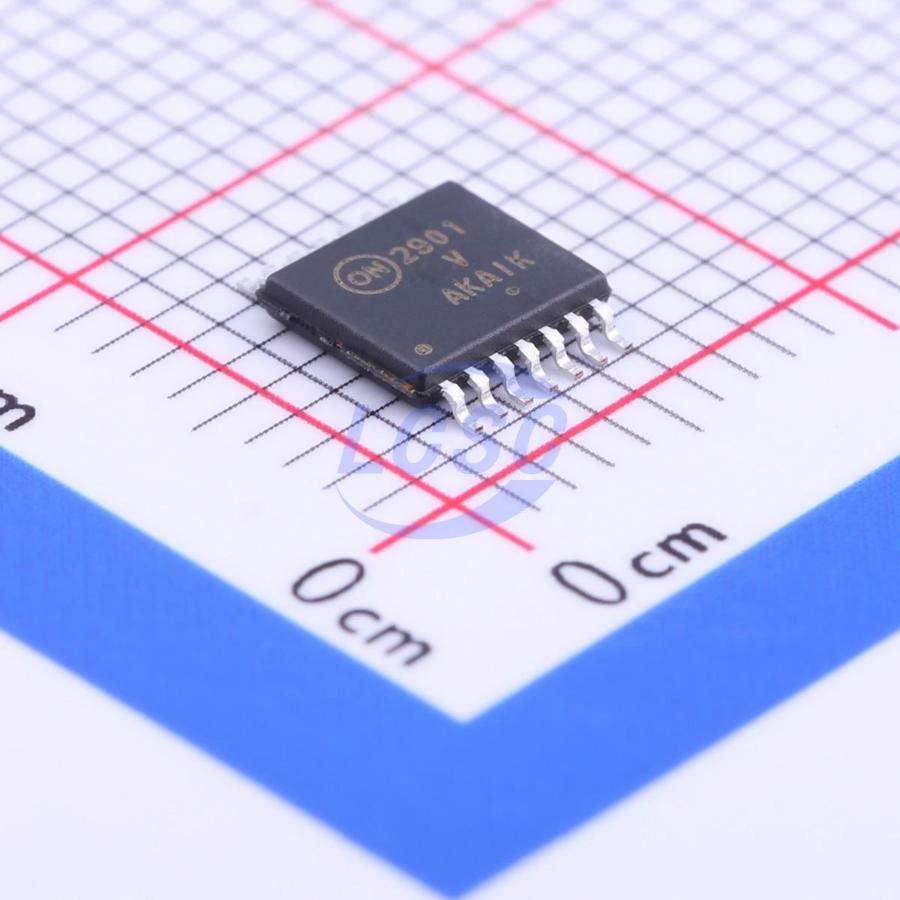

LM2901VDTBR2G
Four channels 800uA 2mV Rail-to-rail input TSSOP-14 Comparators RoHS
TSSOP-14ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- LM2901VDTBR2G
- Store part #
- C231843
- Package / case
- TSSOP-14
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,180 in stock
#C231843
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹54.60 | ₹54.60 |
| 10+ | ₹43.73 | ₹437.30 |
| 30+ | ₹38.95 | ₹1,168.50 |
| 100+ | ₹33.08 | ₹3,308.00 |
| 500+ | ₹30.46 | ₹15,230.00 |
| 1,000+ | ₹27.41 | ₹27,410.00 |
1 × ₹54.60
₹54.60
excl. GST
₹64.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM2901VDTBR2G
₹54.60 for 1 + GST
Specifications
- Number of Channels
- Four channels
- Input Offset Current(Ios)
- 5nA
- Output Mode
- TTL;CMOS
- Operating Temperature
- -40℃~+125℃
- Dual Supply
- -18V~-1.5V;1.5V~18V
- Features
- ESD protection
- Ib - Input Bias Current
- 25nA
- Propagation Delay(tpd)
- 1.3us
- Quiescent Current(Iq)
- 800uA
- Vos - Input Offset Voltage
- 2mV
- Rail to Rail
- Rail-to-rail input
- Single Supply
- 3V~36V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.188 g
Overview
These comparators are designed for use in level detection, low−level sensing and memory applications in consumer, automotive, and industrial electronic applications.
Key features
- Single Supply Operation: 3.0 V to 36 V
- Split Supply Operation: ±1.5 V to ±18 V
- Low Input Bias Current: 25 nA (Typ)
- Low Input Offset Current: ±5.0 nA (Typ)
- Low Input Offset Voltage
- Input Common Mode Voltage Range to GND
- Low Output Saturation Voltage: 130 mV (Typ) @ 4.0 mA
- TTL and CMOS Compatible
- ESD Clamps on the Inputs Increase Reliability without Affecting Device Operation
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
