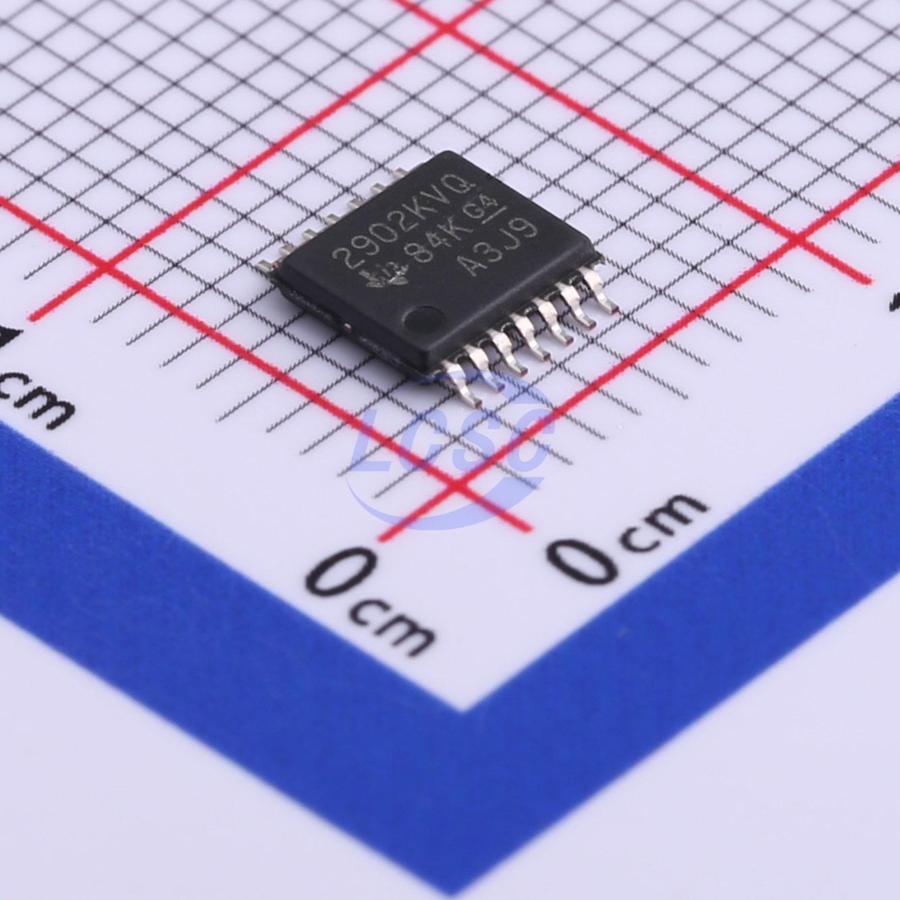

LM2902KVQPWRQ1

This device consists of four independent high-gain frequency-compensated operational amplifiers that are designed specifically to operate from a single supply over a wide range of voltages. Operation from split supplies is possible when the difference between the two supplies is 3 V to 26 V (3 V to 32 V for V-suffixed devices), and Vcc is at least 1.5 V more positive than the input common-mode voltage. The low supply-current drain is independent of the magnitude of the supply voltage.

Applications

• transducer amplifiers
• dc amplification blocks
• all the conventional operational-amplifier circuits that now can be more easily implemented in single-supply-voltage systems

Key features

• Qualified for Automotive Applications ESD Protection < ±500 V Per MIL-STD-883, Method 3015
• Exceeds 200 V Using Machine Model τ (C = 200 pF, R = 0)
• 1500 V Using Charged Device Model ESD
• Human Body Model > 2 kV
• Machine Model > 200 V and Charge Device Model = 2 kV For K-Suffix Devices
• Low Supply-Current Drain Independent of Supply Voltage... 0.8 mA Typ
• Low Input Bias and Offset Parameters:
• Input Offset Voltage... 3 mV Typ
• Input Offset Current... 2 nA Typ
• Input Bias Current... 20 nA Typ
• Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground
• Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage:
• Non-V devices... 26 V
• V-Suffix devices... 32 V
• Open-Loop Differential Voltage Amplification... 100 V/mV Typ
• Internal Frequency Compensation
