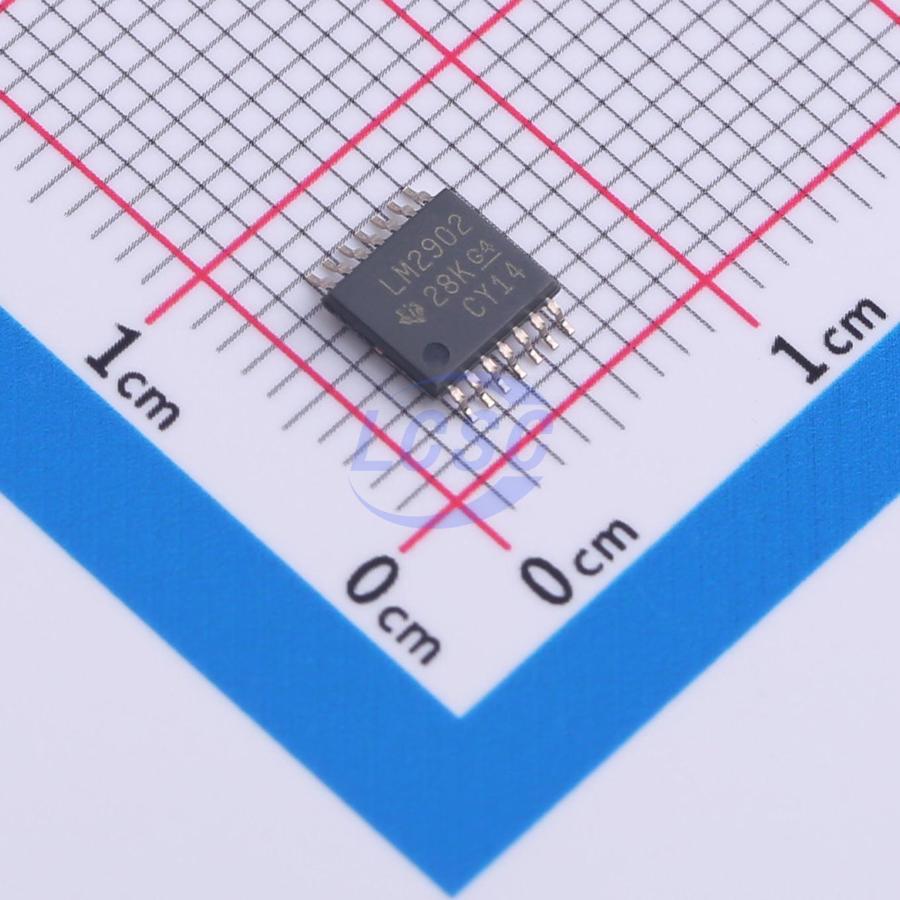

LM2902LVQPWRQ1

Industry-standard amplifiers suitable for cost-sensitive systems. These operational amplifiers can operate within a power supply voltage range of 2.7V to 5.5V. In cost-sensitive low-voltage applications, they can serve as replacements for the LM2904-Q1 and LM2902-Q1. They offer better performance than the LM290x-Q1 devices at low voltages and consume less power. They have unity-gain stability, do not experience phase reversal under overdrive conditions, and their ESD design provides an HBM rating of 2kV. They are available in industry-standard packages, including SOIC, VSSOP, and TSSOP packages.

Applications

• Optimized for AEC-Q100 Grade 1 applications
• Infotainment systems and instrument clusters
• Passive safety
• Body electronics and lighting
• HEV/EV inverters and motor control
• On-board chargers (OBC) and wireless chargers
• Powertrain current sensors
• Advanced driver assistance systems (ADAS)
• Single-supply, low-side, unidirectional current sensing circuits

Key features

• Low input offset voltage: ±1mV
• Common-mode voltage range includes ground
• Unity-gain bandwidth: 1MHz
• Low wideband noise: 40nV/√Hz
• Low quiescent current: 90μA/channel
• Unity-gain stable
• Operates from 2.7V to 5.5V supply voltage
• Available in dual and quad configurations
• Robust ESD specifications: 2kV HBM, 1kV CDM
• Extended operating temperature range: -40°C to 125°C
