DIODES

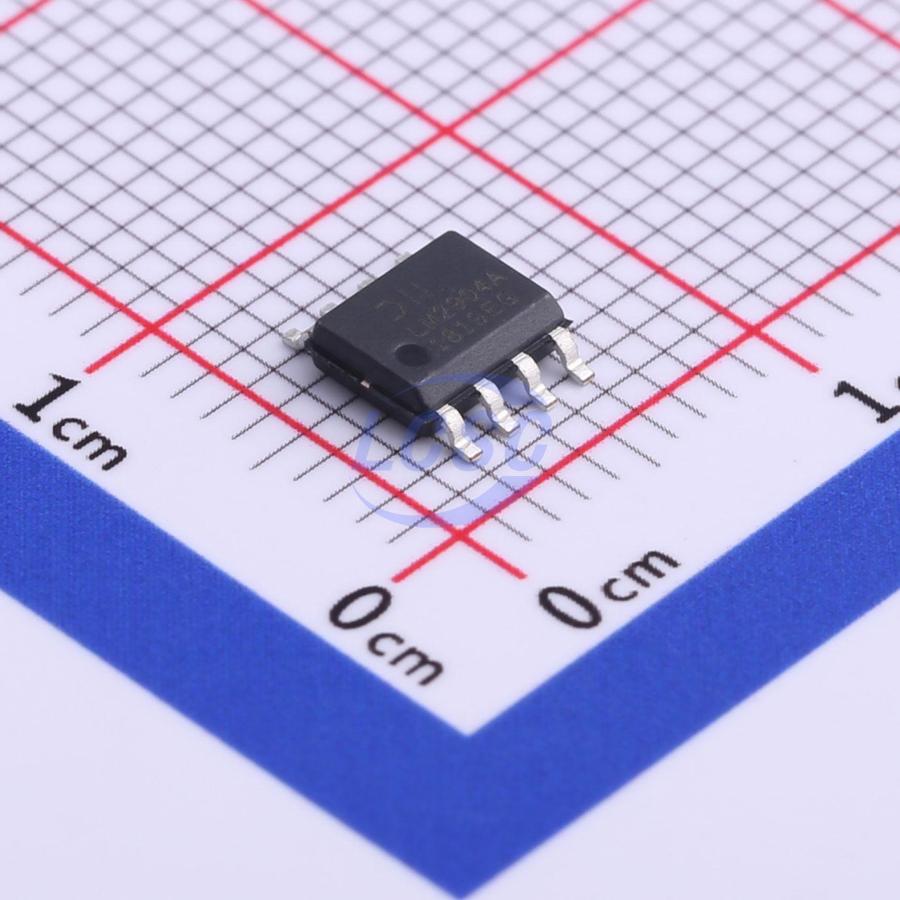

LM2904AS-13

40mA 2 2mV 300V/ms 100dB 500nA 500uA 700kHz SO-8 Instrumentation, Op Amps, Buffer Amps RoHS

SO-8ROHS3 CompliantActive

Dual and Quad Operational Amplifiers

Manufacturer: DIODES
Manufacturer part #: LM2904AS-13
Store part #: C526657
Package / case: SO-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,020 in stock

#C526657

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹27.35	₹136.75
50+	₹21.75	₹1,087.50
150+	₹19.34	₹2,901.00
500+	₹16.35	₹8,175.00
2,500+	₹15.03	₹37,575.00
5,000+	₹14.22	₹71,100.00

Quantity (min 5, multiples of 5)

5 × ₹27.35

₹136.75

excl. GST

₹161.36 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

LM2904AS-13

₹136.75 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Current: 40mA
Number of Channels: 2
Vos - Input Offset Voltage: 2mV
Slew Rate: 300V/ms
Input Offset Current(Ios): 2nA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 100dB
Ib - Input Bias Current: 500nA
Input Offset Voltage Drift(Vos TC): 7uV/℃
Quiescent Current: 500uA
Gain Bandwidth Product: 700kHz
Features: Built-in compensation
Input Voltage Noise Density: 40nV/√Hz@1kHz
Dual Supply: 1.5V~18V;-18V~-1.5V
Single Supply: 3V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.109 g

Overview

The LM2902/LM2904 series amplifiers consist of four and two independent high-gain operational amplifiers with very low input offset voltage specification. They have been designed to operate from a single power supply over a wide range of voltages; however operation from split power supplies is also possible. They offer low power supply current independent of the magnitude of the power supply voltage. The LM2902/LM2904 series are characterized for operation from -40°C to +125°C and the dual devices are available in SO-8, MSOP-8, TSSOP-8 and the quad devices available in SO-14 and TSSOP-14 with industry standard pin-outs. Both use green mold compound as standard.

Key features

Wide Power Supply Voltage Range:
Single Supply: 3V to 36V
Dual Supplies: ±1.5V to ±18V
Very Low Supply Current Drain
LM2904 500μA – Independent of Supply Voltage
LM2902 700μA – Independent of Supply Voltage
Low Input Bias Current: 20nA
Low Input Offset Voltage:
A Version: 1mV typ
Non-A Version: 2mV typ
Large DC Voltage Gain: 100dB
Wide Bandwidth (Unity Gain): 700kHz (Temperature Compensated)
Internally Compensated with Unity Gain
Input Common-Mode Voltage Range Includes Ground
Differential Input Voltage Range Equal to the Power Supply Voltage
Large Output Voltage Swing: 0 to VCC-1.5V
SO-8, MSOP-8, TSSOP-8 (Duals) and SO-14, TSSOP-14 (Quads) Packages Available
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
