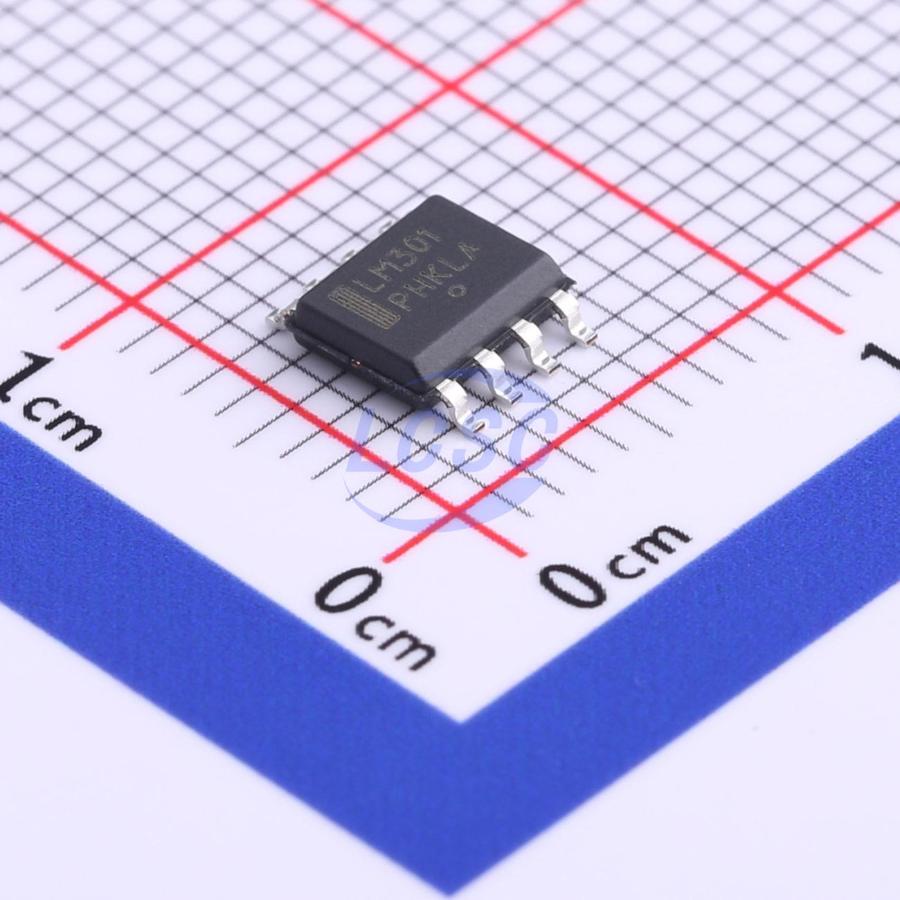

LM301ADR2G
1 7.5mV 500V/ms 90dB 70nA 1.8mA SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Non Compensated Single Operational Amplifiers
- Manufacturer
- onsemi
- Manufacturer part #
- LM301ADR2G
- Store part #
- C480782
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
89 in stock
#C480782
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.33 | ₹69.33 |
| 10+ | ₹54.98 | ₹549.80 |
| 30+ | ₹48.69 | ₹1,460.70 |
| 100+ | ₹41.08 | ₹4,108.00 |
| 500+ | ₹34.12 | ₹17,060.00 |
| 1,000+ | ₹32.16 | ₹32,160.00 |
1 × ₹69.33
₹69.33
excl. GST
₹81.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM301ADR2G
₹69.33 for 1 + GST
Specifications
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 7.5mV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 3nA
- Operating Temperature
- 0℃~+70℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 70nA
- Input Offset Voltage Drift(Vos TC)
- 30uV/℃
- Quiescent Current
- 1.8mA
- Features
- Decompensated stable
- Dual Supply
- -18V~18V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.106 g
Overview
A general purpose operational amplifier that allows the user to choose the compensation capacitor best suited to his needs. With proper compensation, summing amplifier slew rates to 10 V/µs can be obtained.
Key features
- Low Input Offset Current: 20 nA Maximum Over Temperature Range
- External Frequency Compensation for Flexibility
- Class AB Output Provides Excellent Linearity
- Output Short Circuit Protection
- Guaranteed Drift Characteristics
- Pb−Free Packages are Available
