COSINEDatasheet (PDF)

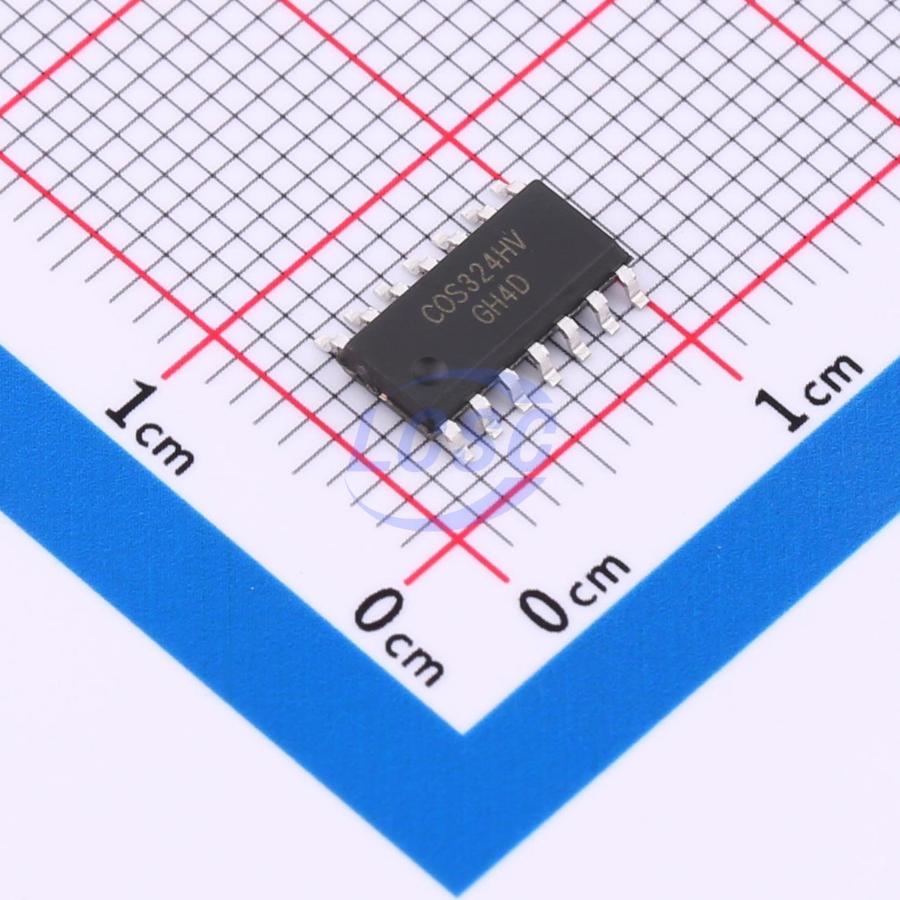

LM324SR
40mA 4 2mV 350V/ms 45nA 90dB 250uA 1MHz SOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-14ROHS CompliantActive
Low Cost, High Voltage Operational Amplifiers
- Manufacturer
- COSINE
- Manufacturer part #
- LM324SR
- Store part #
- C22447444
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,115 in stock
#C22447444
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.61 | ₹78.05 |
| 50+ | ₹12.07 | ₹603.50 |
| 150+ | ₹10.29 | ₹1,543.50 |
| 500+ | ₹8.97 | ₹4,485.00 |
| 3,000+ | ₹7.91 | ₹23,730.00 |
| 6,000+ | ₹7.38 | ₹44,280.00 |
5 × ₹15.61
₹78.05
excl. GST
₹92.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM324SR
₹78.05 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 350V/ms
- Input Offset Current(Ios)
- 3nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 45nA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 250uA
- Gain Bandwidth Product
- 1MHz
- Features
- Built-in compensation
- Dual Supply
- -15V~-1.5V;1.5V~15V
- Single Supply
- 3V~30V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.287 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | COS324HV#C22447445COSINE · SOP-14 | COSINE | SOP-14 | 1,935 | ₹13.93 · 1,935 in stock | View |
 | LM2902SR#C42437070COSINE · SOP-14 | COSINE | SOP-14 | 1,755 | ₹12.52 · 1,755 in stock | View |
 | LMV324SR#C22391246COSINE · SOP-14 | COSINE | SOP-14 | 970 | ₹20.15 · 970 in stock | View |
 | COS324SR#C693061COSINE · SOP-14 | COSINE | SOP-14 | 1,640 | ₹22.94 · 1,640 in stock | View |
 | COS2254SR#C2979744COSINE · SOP-14 | COSINE | SOP-14 | 262 | ₹71.28 · 262 in stock | View |
