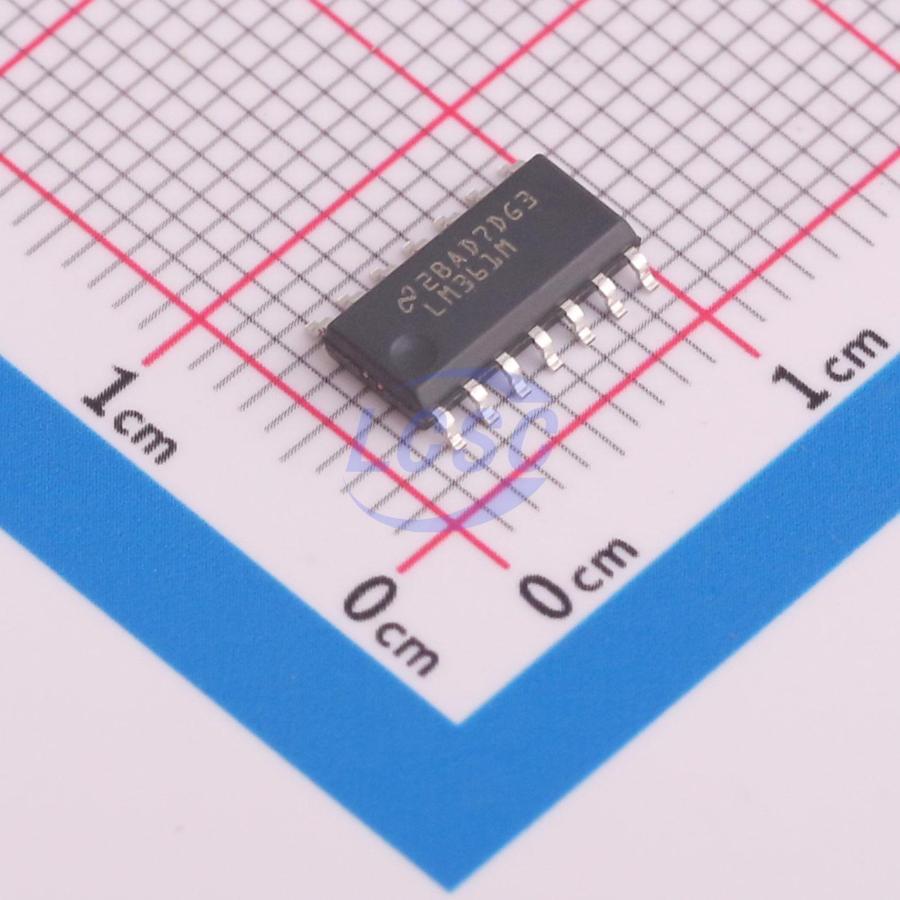

LM361MX/NOPB
1 5mA 5mV SOIC-14 Comparators RoHS
High Speed Differential Comparators
- Manufacturer
- TI
- Manufacturer part #
- LM361MX/NOPB
- Store part #
- C2868536
- Package / case
- SOIC-14
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,515 in stock
#C2868536
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹367.19 | ₹367.19 |
| 10+ | ₹323.46 | ₹3,234.60 |
| 30+ | ₹292.36 | ₹8,770.80 |
| 100+ | ₹264.30 | ₹26,430.00 |
| 500+ | ₹251.25 | ₹1,25,625.00 |
| 1,000+ | ₹246.03 | ₹2,46,030.00 |
1 × ₹367.19
₹367.19
excl. GST
₹433.28 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM361MX/NOPB
₹367.19 for 1 + GST
Specifications
- Number of Channels
- 1
- Input Offset Current(Ios)
- 2000nA
- Output Mode
- TTL
- Operating Temperature
- 0℃~+70℃
- Features
- Latch function
- Dual Supply
- ±15V
- Ib - Input Bias Current
- 10uA
- Propagation Delay(tpd)
- 20ns
- Quiescent Current(Iq)
- 5mA
- Vos - Input Offset Voltage
- 5mV
- Maximum Power Supply Range (Vdd-Vss)
- 32V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.34 g
Overview
The LM161/LM361 is a very high speed differential input, complementary TTL output voltage comparator with improved characteristics over the SE529/NE529 for which it is a pin-for-pin replacement. The device has been optimized for greater speed performance and lower input offset voltage. Typically delay varies only 3 ns for over-drive variations of 5 mV to 500 mV. It may be operated from op amp supplies (±15V). Complementary outputs having maximum skew are provided. Applications involve high speed analog to digital converters and zero-crossing detectors in disk file systems.
Applications
- High speed analog to digital converters
- Zero-crossing detectors in disk file systems
Key features
- Independent strobes
- Ensured high speed: 20 ns max
- Tight delay matching on both outputs
- Complementary TTL outputs
- Operates from op amp supplies: ±15V
- Low speed variation with overdrive variation
- Low input offset voltage
- Versatile supply voltage range
