STDatasheet (PDF)

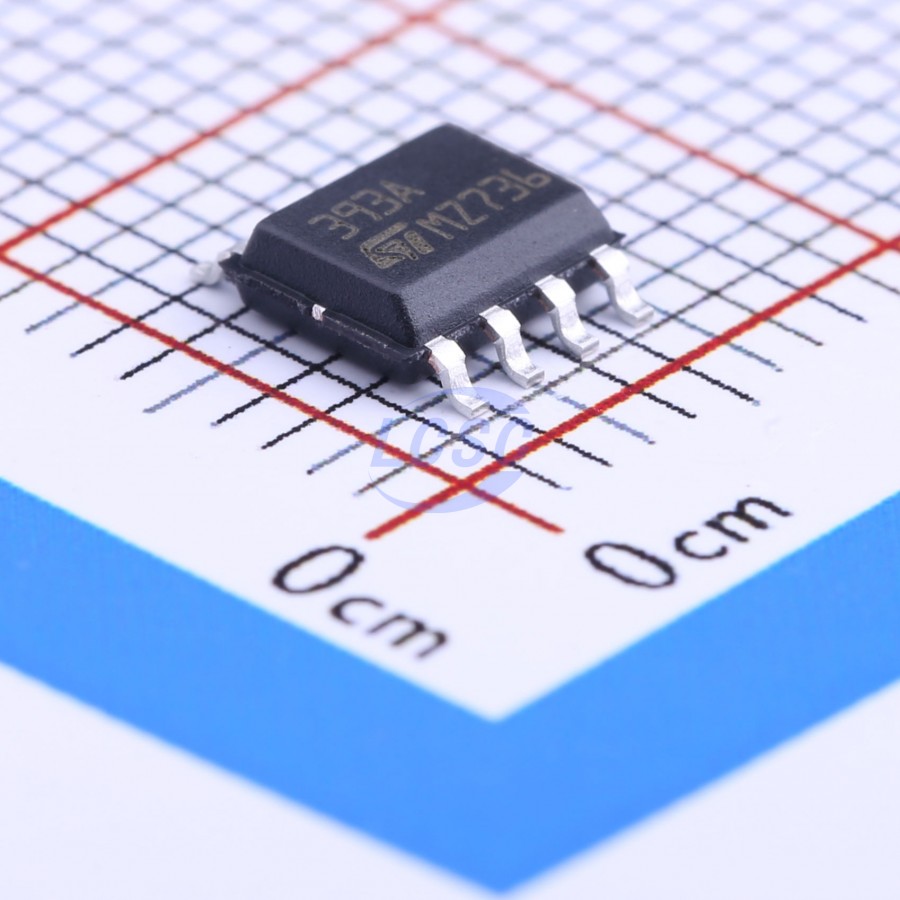

LM393ADT
2 2.5mA 2mV SO-8 Comparators RoHS
SO-8ROHS3 CompliantActive
Low-power, dual-voltage comparators
- Manufacturer
- ST
- Manufacturer part #
- LM393ADT
- Store part #
- C136033
- Package / case
- SO-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40,615 in stock
#C136033
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.12 | ₹250.60 |
| 50+ | ₹39.72 | ₹1,986.00 |
| 150+ | ₹35.26 | ₹5,289.00 |
| 500+ | ₹29.69 | ₹14,845.00 |
| 2,500+ | ₹23.36 | ₹58,400.00 |
| 5,000+ | ₹21.88 | ₹1,09,400.00 |
5 × ₹50.12
₹250.60
excl. GST
₹295.71 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM393ADT
₹250.60 for 5 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 3nA
- Output Mode
- TTL;CMOS
- Operating Temperature
- 0℃~+70℃
- Dual Supply
- 1V~18V;-18V~-1V
- Ib - Input Bias Current
- 100nA
- Output Type
- Open-drain
- Quiescent Current(Iq)
- 2.5mA
- Vos - Input Offset Voltage
- 2mV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Single Supply
- 2V~36V
- Response Time (tr)
- 1.3us
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.235 g
Overview
The LM193, LM293, and LM393 devices consist of two independent low voltage comparators designed specifically to operate from a single supply over a wide range of voltages. Operation from split power supplies is also possible. These comparators also have a unique characteristic in that the input common-mode voltage range includes ground even though operated from a single power supply voltage.
Key features
- Wide single-supply voltage range or dual supplies: 2 V to 36 V or ±1 V to ±18 V
- Very low supply current (0.45 mA) independent of supply voltage (1 mW/comparator at 5 V)
- Low input bias current: 20 nA typ.
- Low input offset current: ±3 nA typ.
- Low input offset voltage: ±1 mV typ.
- Input common-mode voltage range includes ground
- Low output saturation voltage: 80 mV typ. (I sink = 4 mA)
- Differential input voltage range equal to the supply voltage
- TTL, DTL, ECL, MOS, CMOS compatible outputs
- Available in DFN8 2x2, MiniSO8, TSSOP8, and SO8 packages
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | EG393#C111034EG Micro · SOP-8 | EG Micro | SOP-8 | 12,060 | ₹7.91 · 12,060 in stock | View |
 | LM393DTR(XBLW)#C18723572XBLW · SOP-8 | XBLW | SOP-8 | 45,320 | ₹4.87 · 45,320 in stock | View |
 | LM393G-S08-R#C71103UTC · SOIC-8 | UTC | SOIC-8 | 340 | ₹10.46 · 340 in stock | View |
 | LM393DR#C67470TI · SOIC-8 | TI | SOIC-8 | 1,91,600 | ₹8.47 · 1,91,600 in stock | View |
 | LM2903SR#C42437067COSINE · SOP-8 | COSINE | SOP-8 | 8,870 | ₹6.48 · 8,870 in stock | View |
