HTCDatasheet (PDF)

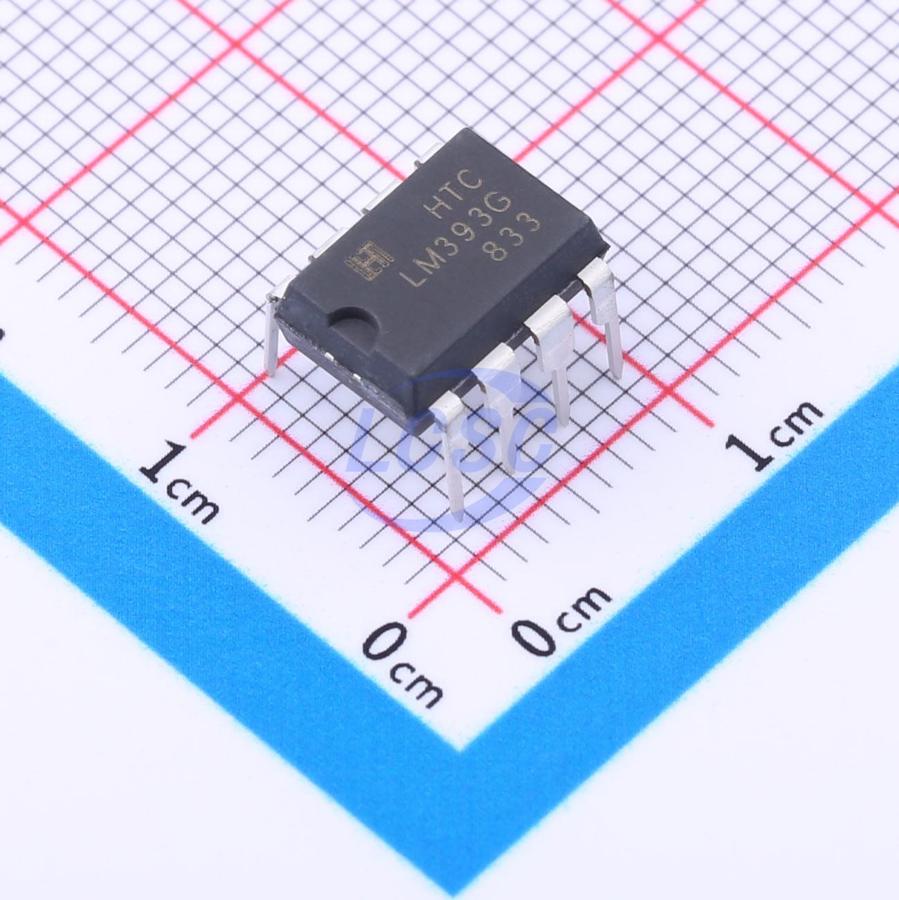

LM393GN
2 800uA 2mV DIP-8 Comparators RoHS
DIP-8ROHS CompliantActive
Dual Differential Comparators
- Manufacturer
- HTC
- Manufacturer part #
- LM393GN
- Store part #
- C2904150
- Package / case
- DIP-8
- Category
- Comparators
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,820 in stock
#C2904150
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.49 | ₹112.45 |
| 50+ | ₹17.85 | ₹892.50 |
| 150+ | ₹15.86 | ₹2,379.00 |
| 500+ | ₹13.39 | ₹6,695.00 |
| 2,000+ | ₹12.29 | ₹24,580.00 |
| 4,000+ | ₹11.63 | ₹46,520.00 |
5 × ₹22.49
₹112.45
excl. GST
₹132.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM393GN
₹112.45 for 5 + GST
Specifications
- Number of Channels
- 2
- Input Offset Current(Ios)
- 5nA
- Output Mode
- TTL;CMOS
- Operating Temperature
- -40℃~+125℃
- Dual Supply
- ±18V
- Ib - Input Bias Current
- 25nA
- Output Type
- Open Collector
- Propagation Delay(tpd)
- 1.3us
- Quiescent Current(Iq)
- 800uA
- Vos - Input Offset Voltage
- 2mV
- Maximum Power Supply Range (Vdd-Vss)
- 36V
- Single Supply
- 2V~30V
- Response Time (tr)
- 0.3us
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.98 g
Overview
The LM393G consists of two independent voltage comparators. These were designed specifically to operate from a single power supply over a wide range of voltages. Operation from split power supplies is also possible and the low power supply current drain is independent of the magnitude of the power supply voltage. The outputs can be connected to other opencollector outputs to achieve wired-AND relationships.
Key features
- Wide range of supply voltages
- Low supply current drain independent of supply voltage
- Low input biasing current
- Low input offset current
- Low input offset voltage
- Input common-mode voltage range includes GND
- Differential input voltage range equal to the power supply voltage
- Low output saturation voltage
- Output voltage compatible with TTL, MOS and CMOS logic
