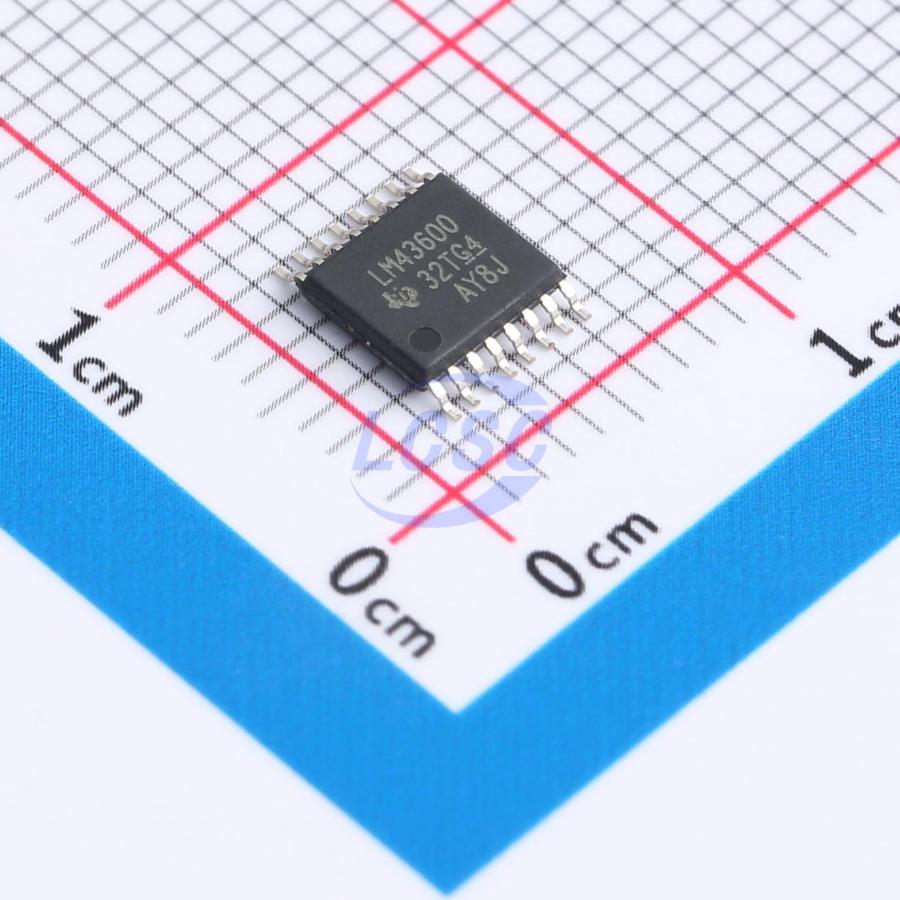

LM43600PWPT

The LM43600 regulator is an easy-to-use synchronous step-down DC/DC converter capable of driving load currents up to 0.5A, with an input voltage range of 3.5V to 36V (42V transient). It delivers excellent efficiency, output accuracy, and dropout voltage in an extremely compact solution size. The extended family offers 1A, 2A, and 3A load current options in pin-to-pin compatible packages. Peak current mode control provides simple control loop compensation and cycle-by-cycle current limiting. Optional features include programmable switching frequency, synchronization, power-good flag, precision enable, internal soft-start, scalable soft-start, and tracking, offering a flexible and easy-to-use platform for a wide range of applications. Discontinuous conduction mode and automatic frequency modulation at light loads improve light-load efficiency. The family requires minimal external components, and the pinout enables simple, optimized PCB layout and routing. Protection features include thermal shutdown, VCC undervoltage lockout, cycle-by-cycle current limiting, and output short-circuit protection. Pin-to-pin compatible with LM46000, LM46001, LM46002, LM43601, LM43602, and LM43603 devices.

Applications

• Industrial power supplies
• Telecom systems
• Automotive applications below AM band
• General-purpose wide VIN regulation, high-efficiency point-of-load regulation

Key features

• 33μA quiescent current
• High efficiency under light load (DCM and PFM)
• Compliant with EN55022/CISPR 22 EMI standards
• Integrated synchronous rectification
• Adjustable frequency range: 200kHz to 2.2MHz (default: 500kHz)
• Synchronization to external clock frequency
• Internal compensation
• Stable operation with virtually any combination of ceramic, solid electrolytic, tantalum, and aluminum capacitors
• Power Good flag
• Soft-start into pre-biased loads
• Internal soft-start: 4.1ms
• Soft-start time extendable via external capacitor
• Output voltage tracking
• Programmable UVLO accurate enable
• Output short-circuit protection with hiccup mode
• Thermal shutdown protection
• Create custom designs with LM43600 using WEBENCH Power Designer
