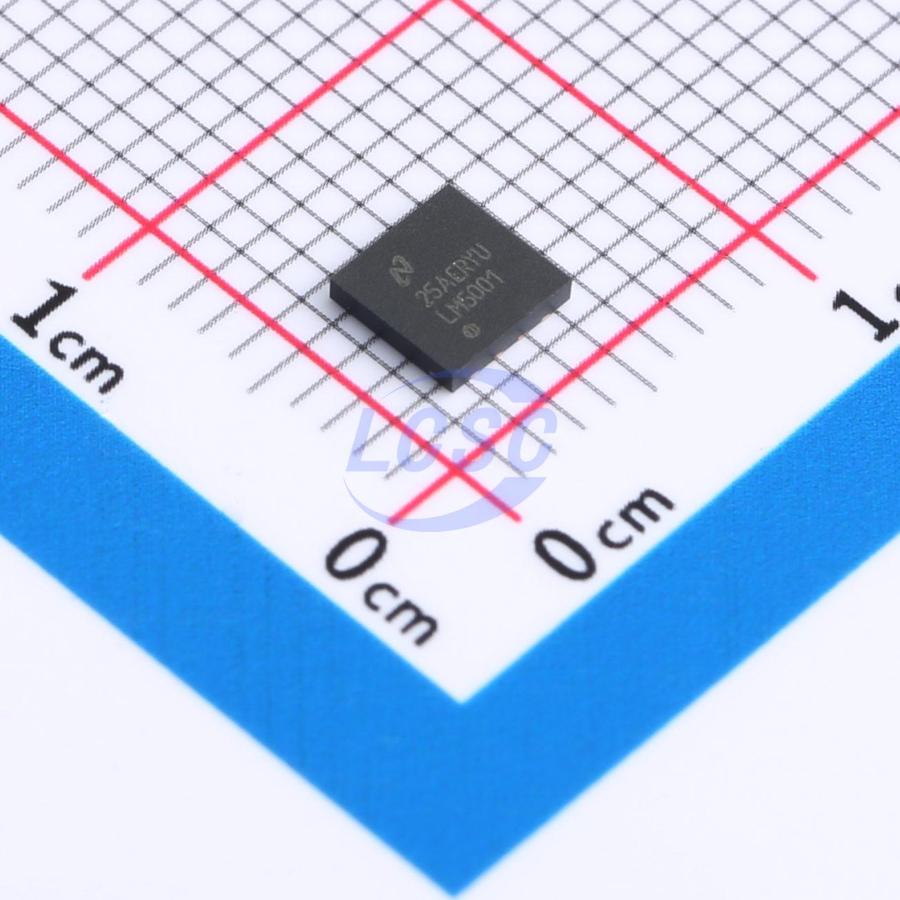

LM5001x High-Voltage Switch-Mode Regulator
- Manufacturer
- TI
- Manufacturer part #
- LM5001SDX/NOPB
- Store part #
- C2072649
- Package / case
- WSON-8-EP(4x4)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,165 in stock
#C2072649
Stock & price checked 17 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹328.73 | ₹328.73 |
| 10+ | ₹277.64 | ₹2,776.40 |
| 30+ | ₹245.68 | ₹7,370.40 |
| 100+ | ₹213.07 | ₹21,307.00 |
| 500+ | ₹198.29 | ₹99,145.00 |
| 1,000+ | ₹191.77 | ₹1,91,770.00 |
1 × ₹328.73
₹328.73
excl. GST
₹387.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,500 per reel
LM5001SDX/NOPB
₹328.73 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TJ)
- Frequency - Switching
- 1.5MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Frequency synchronization;Built-in LDO regulator;Built-in current sense resistor;Overcurrent Protection
- Topology
- Boost;Flyback;Forward;SEPIC
- Output Type
- Adjustable
- Operating Voltage
- 3.1V~75V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 800mA
- Quiescent Current
- 95uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.072 g
Overview
The LM5001 high-voltage switch-mode regulator features all of the functions necessary to implement efficient high-voltage Boost, Flyback, SEPIC and Forward converters, using few external components. This easy-to-use regulator integrates a 75-V NChannel MOSFET with a 1-A peak current limit. Current mode control provides inherently simple loop compensation and line-voltage feed-forward for superior rejection of input transients. The switching frequency is set with a single resistor and is programmable up to 1.5 MHz. The oscillator can also be synchronized to an external clock. Additional protection features include: current limit, thermal shutdown, undervoltage lockout and remote shutdown capability.
Applications
- DC-DC Power Supplies for Industrial, Communications, and Automotive Applications
- Boost, Flyback, SEPIC and Forward Converter Topologies
Key features
- AEC-Q100 Qualified (TJ=-40°C to 125°C )
- Integrated 75-V N-Channel MOSFET
- Ultra-Wide Input Voltage Range from 3.1 V to 75 V
- Integrated High Voltage Bias Regulator
- Adjustable Output Voltage
- 1.5% Output Voltage Accuracy
- Current Mode Control with Selectable Compensation
- Wide Bandwidth Error Amplifier
- Integrated Current Sensing and Limiting
- Integrated Slope Compensation
- 85% Maximum Duty Cycle Limit
- Single Resistor Oscillator Programming
- Oscillator Synchronization Capability
- Enable / Undervoltage Lockout (UVLO) Pin
- Thermal Shutdown
