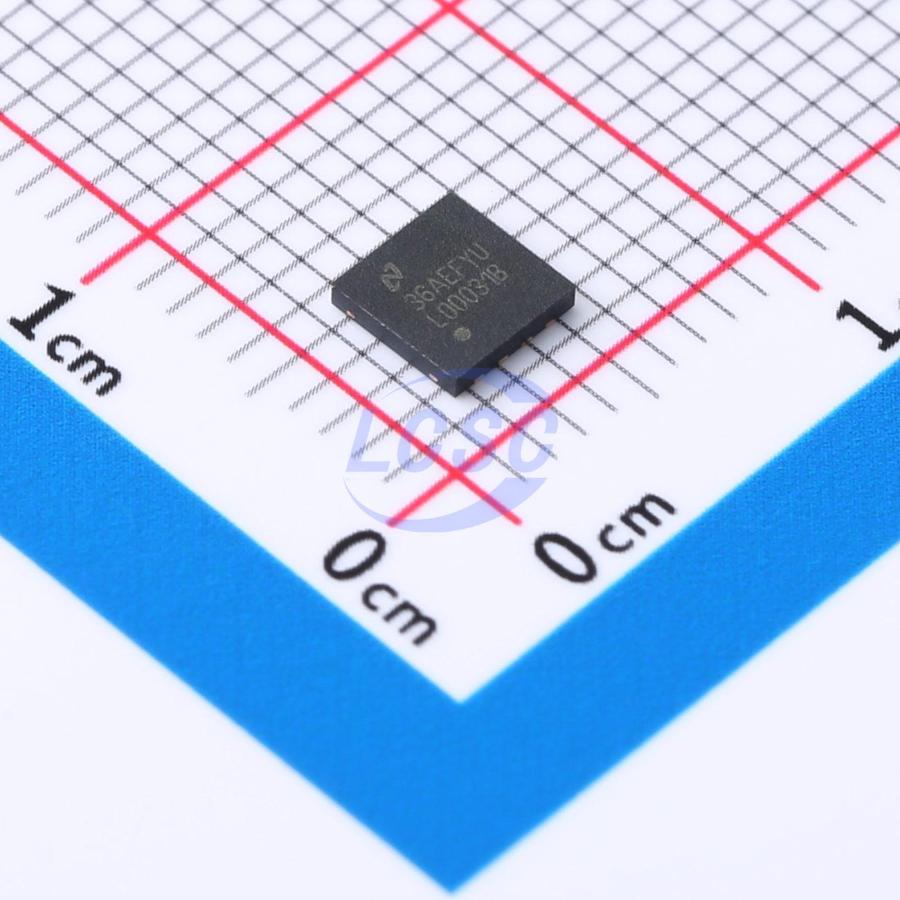

LM5007SDX/NOPB

The LM5007 0.5A step-down switching converter incorporates all the features required to implement a low-cost, high-efficiency buck regulator. This high-voltage converter features an integrated 80V, 0.7A N-channel buck switch, operating over an input voltage range of 9V to 75V. The device is easy to implement and is available in an 8-pin VSSOP package and a thermally enhanced 8-pin WSON package. The converter employs a hysteretic control scheme in which the PWM on-time is inversely proportional to VIN. This characteristic allows the operating frequency to remain relatively constant over variations in load and input voltage. Hysteretic control eliminates the need for loop compensation and provides fast transient response. The device implements an intelligent current limit with a forced off-time that is inversely proportional to VOUT. This current limiting scheme ensures short-circuit protection while minimizing load current foldback. Additional protection features include thermal shutdown with automatic recovery, VCC and gate drive UVLO, and a maximum duty cycle clamp.

Applications

• Non-isolated DC/DC buck regulator
• Secondary-side high-voltage post-regulator
• 48V automotive systems

Key features

• Versatile synchronous step-down DC/DC converter
• Operating input voltage range: 9V to 75V
• Integrated 80V 0.7A N-channel buck switch
• Internal high-voltage VCC regulator
• Adjustable output voltage
• High-efficiency operation
• Adaptive constant on-time control architecture
• Ultra-fast transient response
• No control loop compensation required
• High-accuracy 2.5V reference voltage
• Low quiescent input current
• Intelligent current limit protection
• VCC and gate drive UVLO protection
• Thermal shutdown protection with hysteresis
• External shutdown control
• 8-pin VSSOP and WSON packages
• Create custom regulator designs using WEBENCH Power Designer
