TIDatasheet (PDF)

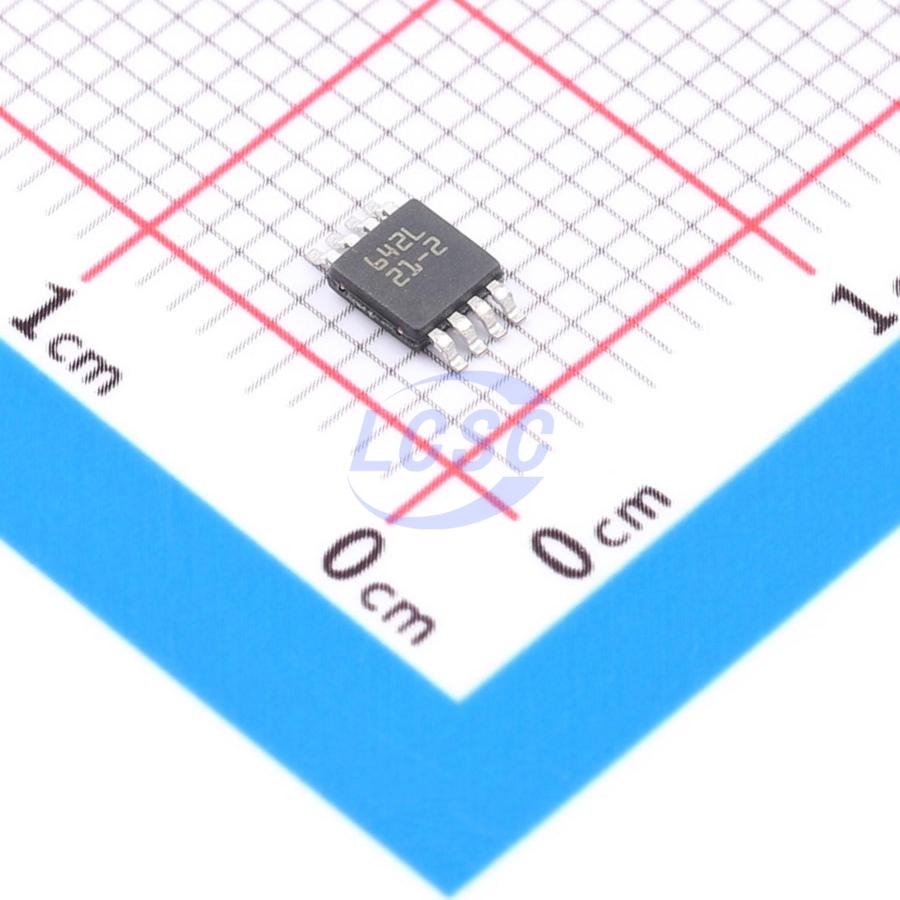

LM5021MMX-2/NOPB
Converter Offline Flyback Forward Topology 145kHz VSSOP-8-0.65mm
VSSOP-8-0.65mmROHS3 CompliantActive
Ultra-Low Startup Current PWM Controller
- Manufacturer
- TI
- Manufacturer part #
- LM5021MMX-2/NOPB
- Store part #
- C2865463
- Package / case
- VSSOP-8-0.65mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,839 in stock
#C2865463
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹207.10 | ₹207.10 |
| 10+ | ₹185.72 | ₹1,857.20 |
| 30+ | ₹165.64 | ₹4,969.20 |
| 100+ | ₹150.53 | ₹15,053.00 |
| 500+ | ₹144.48 | ₹72,240.00 |
| 1,000+ | ₹141.24 | ₹1,41,240.00 |
1 × ₹207.10
₹207.10
excl. GST
₹244.38 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
LM5021MMX-2/NOPB
₹207.10 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Output Current
- 700mA
- Frequency - Switching
- 145kHz
- Voltage - Supply
- 7.25V~30V
- Topology
- Flyback;Forward
- Features
- Adjustable soft-start;Light load efficient mode;Leading edge blanking;Under-voltage lockout;Hiccup current limiting;Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
- Duty Cycle(Max)
- 50%
- Feedback System
- Secondary-Side Feedback
- Working Mode
- DCM;CCM
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.065 g
Overview
The LM5021 offline PWM controller contains all the features necessary to implement a high-efficiency offline single-ended flyback/forward power converter using current-mode control. The LM5021 features an ultra-low (25μA) startup current to minimize power dissipation in the high-voltage startup network. Skip-cycle mode reduces power consumption under light-load conditions, enabling energy-saving applications (ENERGY STAR, CECP, etc.). Additional features include undervoltage lockout, cycle-by-cycle current limiting, discontinuous mode overload protection, slope compensation, soft-start, and oscillator synchronization. This high-performance 8-pin IC has a total propagation delay of less than 100ns and allows the oscillator to be set to 1MHz with a single resistor.
Applications
- DCM/CCM flyback converters
- Industrial power conversion
- SMPS for smart meters and audio amplifiers
- Building automation and white goods SMPS
- Isolated telecom power supplies
Key features
- Ultra-low startup current (25μA maximum)
- Current mode control
- Cycle-skip mode for reduced standby power
- Single-resistor programmable oscillator
- Synchronous oscillator
- Adjustable soft-start
- Integrated 0.7A peak current gate driver
- Direct optocoupler interface
- Maximum duty cycle limiting (80% for LM5021-1, 50% for LM5021-2)
- Slope compensation (LM5021-1 only)
- UVLO protection with hysteresis
- Cycle-by-cycle overcurrent protection
- Hiccup mode for sustained overload protection
- Leading-edge blanking of current sense signal
- Package: VSSOP-8 or PDIP-8
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM5021MMX-1/NOPB#C2872420TI · VSSOP-8-0.65mm | TI | VSSOP-8-0.65mm | 26,165 | ₹111.25 · 26,165 in stock | View |
