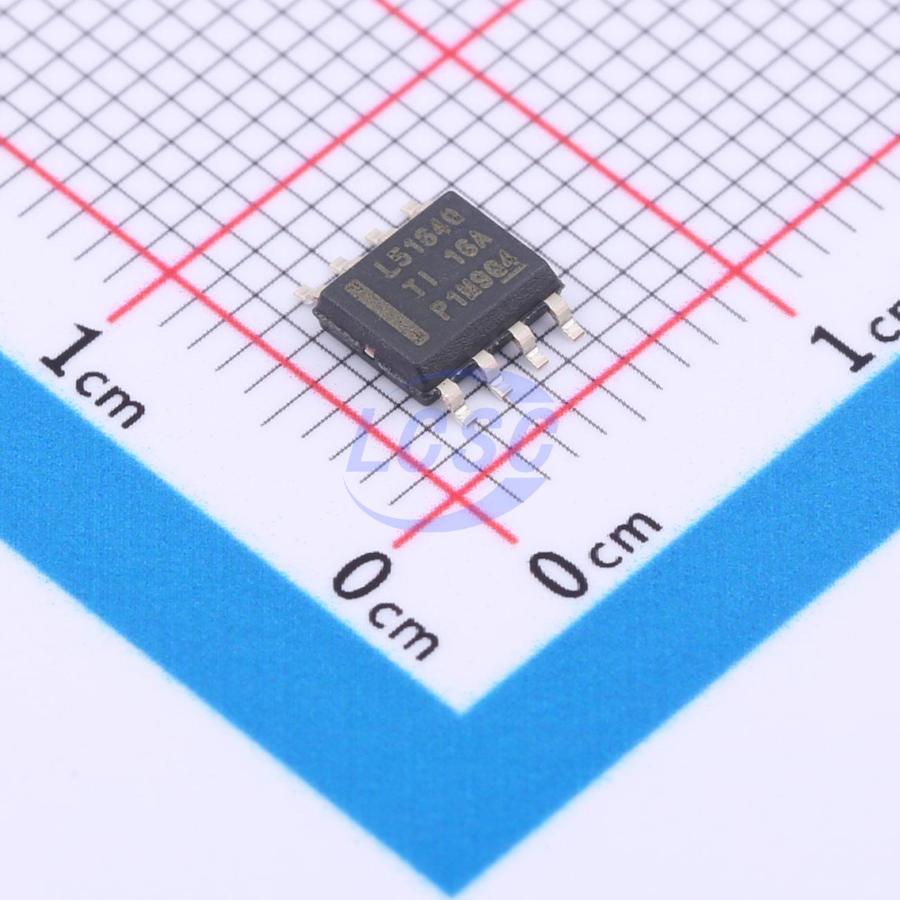

LM5164QDDARQ1

The LM5164-Q1 synchronous buck converter is designed for regulation across a wide input voltage range, minimizing the need for external surge suppression components. A 50ns minimum controllable on-time enables high step-down ratios, supporting direct conversion from a 48V nominal input to low-voltage rails, reducing system complexity and solution cost. The LM5164-Q1 can continue operating at near 100% duty cycle as needed when the input voltage drops to 6V, making it well-suited for high-performance 48V automotive battery applications and MHEV/EV systems. The LM5164-Q1 features integrated high-side and low-side power MOSFETs, delivering up to 1A of output current. The constant on-time (COT) control architecture provides near-constant switching frequency with excellent load and line transient response. Additional features of the LM5164-Q1 include ultra-low IQ and diode emulation mode operation for high light-load efficiency, innovative peak and valley overcurrent protection, integrated VCC bias supply and bootstrap diode, precision enable and input UVLO, and thermal shutdown protection with auto-recovery. An open-drain PGOOD indicator supports sequencing, fault reporting, and output voltage monitoring. The LM5164-Q1 is AEC-Q100 Grade 1 qualified and available in an 8-pin SO PowerPAD package. Its 1.27mm pin pitch provides sufficient spacing for high-voltage reliability.

Applications

• Automotive 48V mild hybrid ECU bias supply
• Automotive DC/DC converter
• Automotive HVAC compressor and PTC heater

Key features

• AEC-Q100 qualified, device temperature grade 1: -40°C to 125°C ambient temperature range
• Designed for reliable and robust applications
• Wide input voltage range: 6V to 100V; junction temperature range: -40°C to +150°C
• Fixed 3ms internal soft-start timer
• Peak and valley current limit protection
• Input UVLO and thermal shutdown protection
• Scalable automotive power supply applications
• Minimum on-time and off-time: 50ns
• Adjustable switching frequency up to 1MHz
• Diode emulation for high light-load efficiency
• 10.5μA no-load input quiescent current
• 3μA shutdown quiescent current
• Optimized for CISPR 25 EMI compliance
• Reduced solution size and cost through integrated technology
• COT mode control architecture
• Integrated 0.725Ω NFET buck switch supporting wide duty cycle range
• Integrated 0.34Ω NFET synchronous rectifier eliminates external Schottky diode
• 1.2V internal voltage reference
• No loop compensation components required
• Internal VCC bias regulator and bootstrap diode
• Custom design creation with WEBENCH Power Designer
