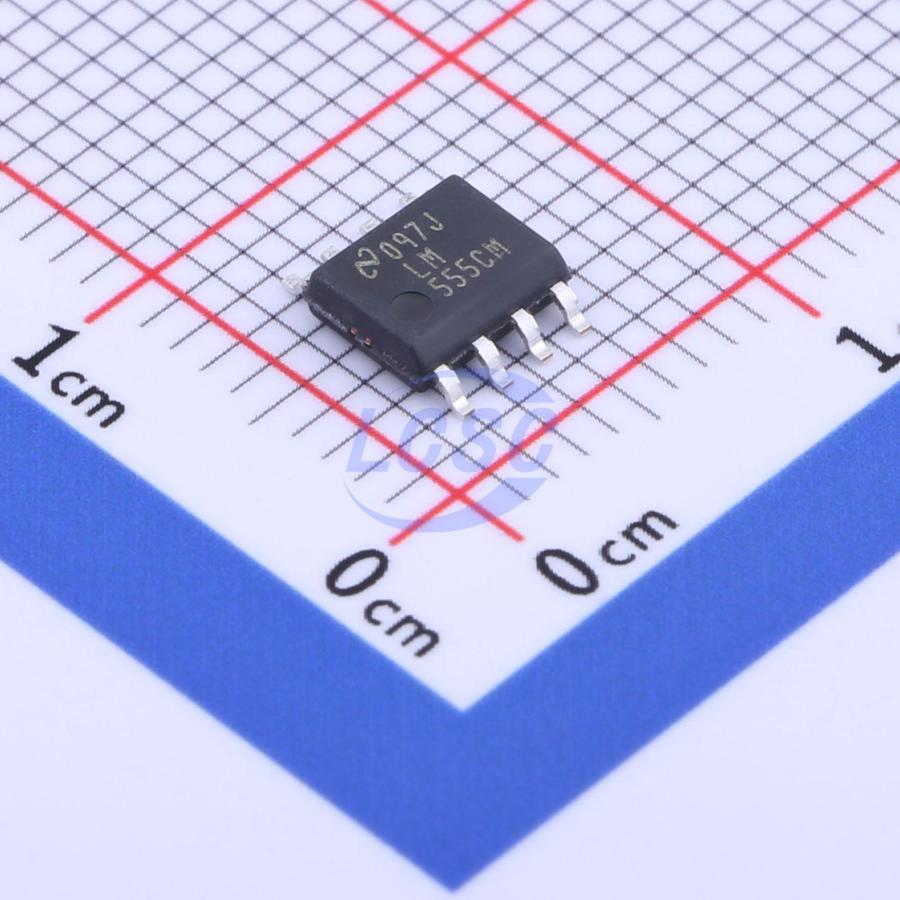

LM555CMX/NOPB
SOIC-8 Programmable Timers and Oscillators RoHS
555 Timer
- Manufacturer
- TI
- Manufacturer part #
- LM555CMX/NOPB
- Store part #
- C543060
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,107 in stock
#C543060
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹125.98 | ₹125.98 |
| 10+ | ₹112.10 | ₹1,121.00 |
| 30+ | ₹98.87 | ₹2,966.10 |
| 100+ | ₹89.12 | ₹8,912.00 |
| 500+ | ₹85.00 | ₹42,500.00 |
| 1,000+ | ₹83.04 | ₹83,040.00 |
1 × ₹125.98
₹125.98
excl. GST
₹148.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM555CMX/NOPB
₹125.98 for 1 + GST
Specifications
- Supply Current
- 3mA
- Operating Temperature
- 0℃~+70℃
- Features
- Adjustable duty cycle oscillation;Reset function
- Output Current
- 200mA
- Timer Number
- 1
- Voltage - Supply
- 4.5V~16V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Overview
The LM555 is a highly stable device for generating accurate time delays or oscillation. Additional terminals are provided for triggering or resetting if desired. In the time delay mode of operation, the time is precisely controlled by one external resistor and capacitor. For a stable operation as an oscillator, the free running frequency and duty cycle are accurately controlled with two external resistors and one capacitor. The circuit may be triggered and reset on falling waveforms, and the output circuit can source or sink up to 200 mA or drive TTL circuits.
Applications
- Precision Timing
- Pulse Generation
- Sequential Timing
- Time Delay Generation
- Pulse Width Modulation
- Pulse Position Modulation
- Linear Ramp Generator
Key features
- Direct Replacement for SE555/NE555
- Timing from Microseconds through Hours
- Operates in Both Astable and Monostable Modes
- Adjustable Duty Cycle
- Output Can Source or Sink 200 mA
- Output and Supply TTL Compatible
- Temperature Stability Better than 0.005% per °C
- Normally On and Normally Off Output
- Available in 8-pin VSSOP Package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM555CM/NOPB#C1520196TI · SOIC-8 | TI | SOIC-8 | 25 | ₹131.25 · 25 in stock | View |
 | NE555DR-CN#C42436866ChipNobo · SOP-8 | ChipNobo | SOP-8 | 5,600 | ₹8.71 · 5,600 in stock | View |
 | NE555DBS#C51927331GREENMICRO · SOP-8 | GREENMICRO | SOP-8 | 13,580 | ₹4.31 · 13,580 in stock | View |
 | NE555DTR(XBLW)#C18723595XBLW · SOP-8 | XBLW | SOP-8 | 1,23,840 | ₹5.05 · 1,23,840 in stock | View |
 | SA555DR-HXY#C20616347HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | On request | ₹11.50 · 0 in stock | View |
