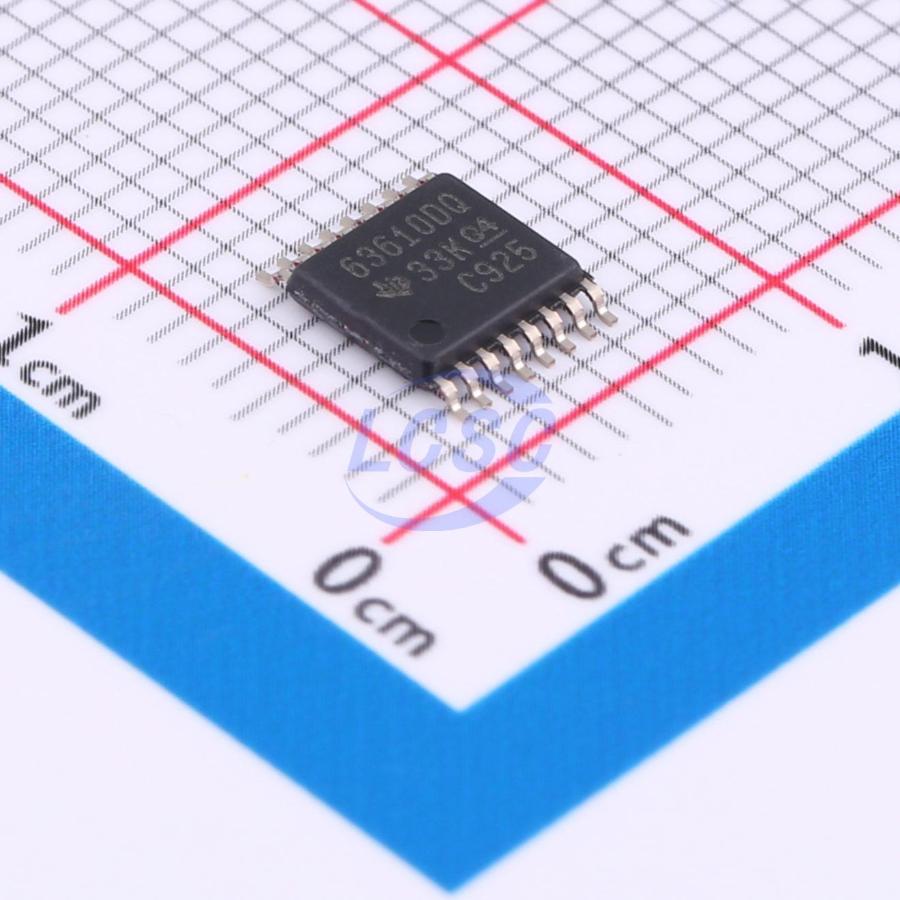

LM63610DQPWPRQ1
Buck Switching Regulator IC Adjustable 1V~20V 1 Output 1A HTSSOP-16-EP
HTSSOP-16-EPROHS3 CompliantActive
3.5V to 36V 1A automotive step-down converter
- Manufacturer
- TI
- Manufacturer part #
- LM63610DQPWPRQ1
- Store part #
- C2868124
- Package / case
- HTSSOP-16-EP
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4 in stock
#C2868124
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹652.20 | ₹652.20 |
| 10+ | ₹581.67 | ₹5,816.70 |
| 30+ | ₹536.36 | ₹16,090.80 |
| 100+ | ₹492.90 | ₹49,290.00 |
1 × ₹652.20
₹652.20
excl. GST
₹769.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
LM63610DQPWPRQ1
₹652.20 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+150℃@(TJ)
- Number of Outputs
- 1
- Function
- Step-down type
- Frequency - Switching
- 400kHz;2.1MHz;250kHz~2.2MHz
- Features
- Cycle-by-cycle current limiting;Hiccup current limiting;Frequency synchronization;EMI optimization (spread spectrum);Light load efficient mode;Output discharge;Operating status indication;Built-in LDO regulator
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 3.5V~36V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1A
- Output Voltage
- 1V~20V
- Quiescent Current
- 23uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.094 g
