TIDatasheet (PDF)

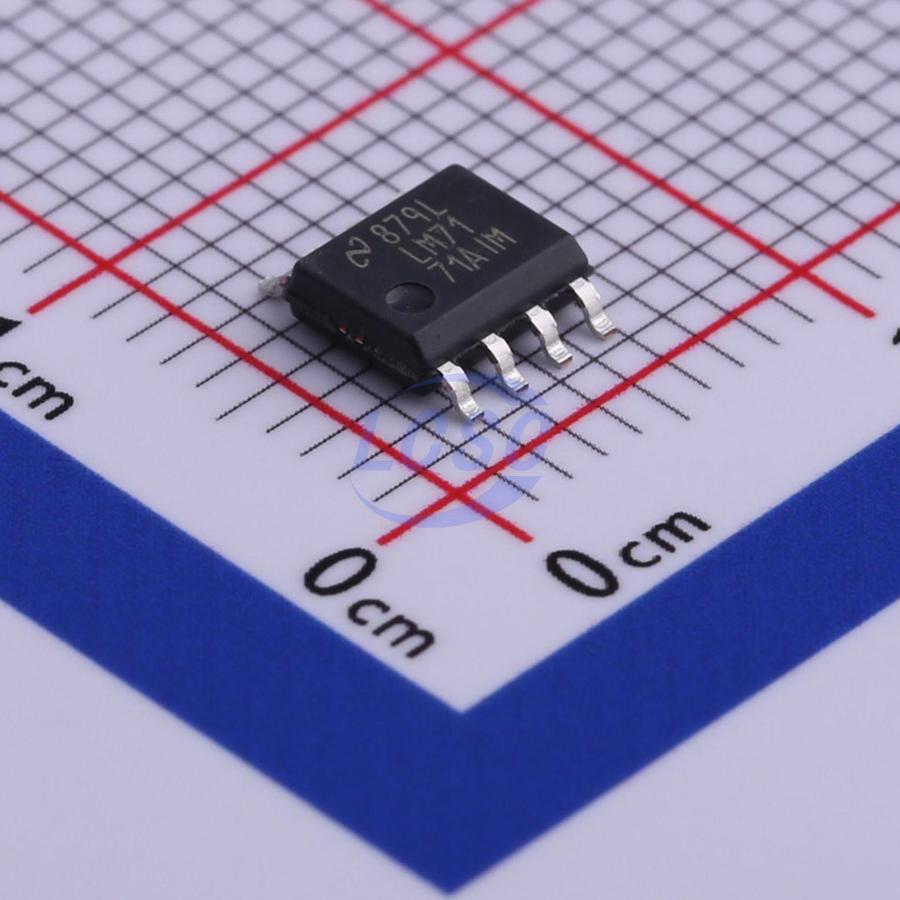

LM7171AIMX/NOPB
140mA 1 4mV 4.1V/ns 105dB 12uA 6.5mA SOIC-8 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-8ROHS3 CompliantActive
Very High Speed, High Output Current, Voltage Feedback Amplifier
- Manufacturer
- TI
- Manufacturer part #
- LM7171AIMX/NOPB
- Store part #
- C485814
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
780 in stock
#C485814
Stock & price checked 14 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹628.50 | ₹628.50 |
| 10+ | ₹534.77 | ₹5,347.70 |
| 30+ | ₹479.18 | ₹14,375.40 |
| 100+ | ₹422.71 | ₹42,271.00 |
| 500+ | ₹396.77 | ₹1,98,385.00 |
| 1,000+ | ₹385.01 | ₹3,85,010.00 |
1 × ₹628.50
₹628.50
excl. GST
₹741.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM7171AIMX/NOPB
₹628.50 for 1 + GST
Specifications
- Output Current
- 140mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 4mV
- Slew Rate
- 4.1V/ns
- Input Offset Current(Ios)
- 100nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 105dB
- Ib - Input Bias Current
- 12uA
- Input Offset Voltage Drift(Vos TC)
- 35uV/℃
- Quiescent Current
- 6.5mA
- Input Voltage Noise Density
- 14nV/√Hz@10kHz
- Dual Supply
- 5V~15V;-15V~-5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.111 g
Overview
The LM7171 is a high speed voltage feedback amplifier that has the slewing characteristic of a current feedback amplifier, yet it can be used in all traditional voltage feedback amplifier configurations. The LM7171 is stable for gains as low as +2 or -1. It provides a very high slew rate at 4100V/μs and a wide unity-gain bandwidth of 200 MHz while consuming only 6.5 mA of supply current. It is ideal for video and high speed signal processing applications such as HDSL and pulse amplifiers. With 100 mA output current, the LM7171 can be used for video distribution, as a transformer driver or as a laser diode driver.
Applications
- HDSL and ADSL Drivers
- Multimedia Broadcast Systems
- Professional Video Cameras
- Video Amplifiers
- Copiers/Scanners/Fax
- HDTV Amplifiers
- Pulse Amplifiers and Peak Detectors
- CATV/Fiber Optics Signal Processing
- ADC/DAC systems
- Portable applications
Key features
- Easy-to-Use Voltage Feedback Topology
- Very High Slew Rate: 4100 V/μs
- Wide Unity-Gain Bandwidth: 200 MHz
- -3 dB Frequency @ AV = +2: 220 MHz
- Low Supply Current: 6.5 mA
- High Open Loop Gain: 85 dB
- High Output Current: 100 mA
- Differential Gain and Phase: 0.01%, 0.02°
- Specified for ±15V and ±5V Operation
