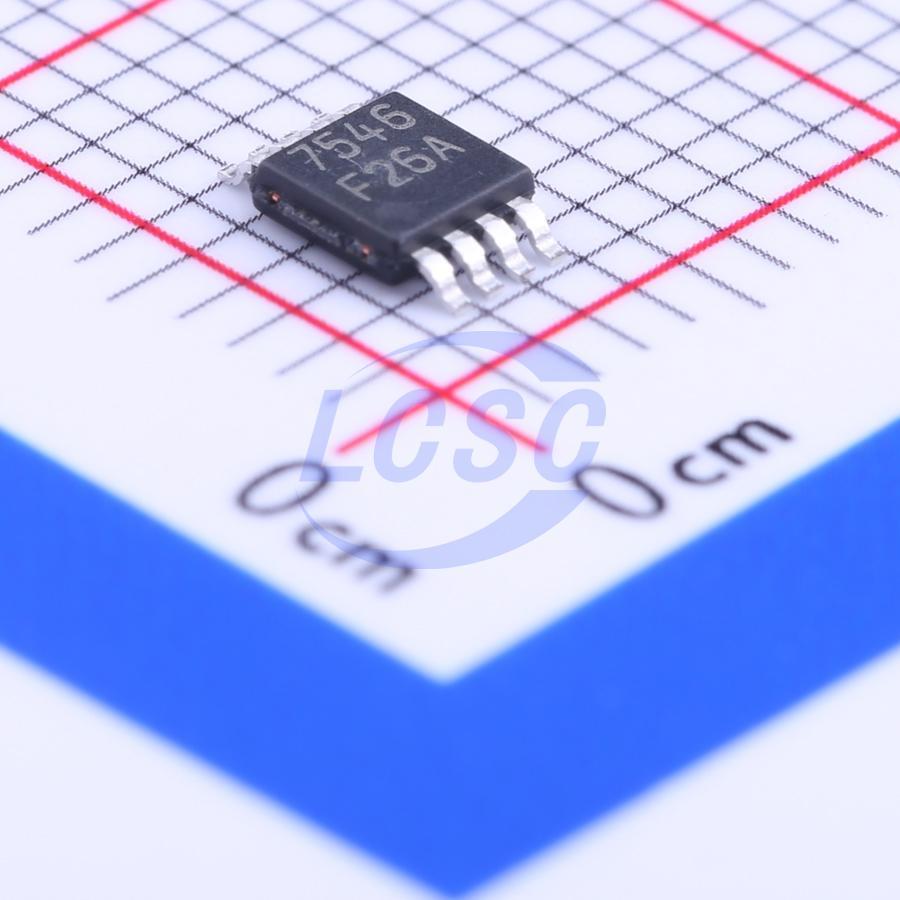

LM7705MM/NOPB

The LM7705 device is a switched capacitor voltage inverter with a low noise, -0.23 V fixed negative voltage regulator. This device is designed to be used with low voltage amplifiers to enable the amplifiers output to swing to zero volts. The -0.23 V is used to supply the negative supply pin of an amplifier while maintaining less then 5.5 V across the amplifier. Railto-Rail output amplifiers cannot output zero volts when operating from a single-supply voltage and can result in error accumulation due to amplifier output saturation voltage being amplified by following gain stages. A small negative supply voltage will prevent the amplifiers output from saturating at zero volts and will help maintain an accurate zero through a signal processing chain. Additionally, when an amplifier is used to drive an input of the ADC, the amplifier can output a zero voltage signal and the full input range of an ADC can be used. The LM7705 device has a shutdown pin to minimize standby power consumption.

Applications

• True Zero Amplifier Outputs
• Portable Instrumentation
• Low-Voltage Split-Power Supplies

Key features

• Regulated Output Voltage −0.232 V
• Output Voltage Tolerance 5%
• Output Voltage Ripple 4 mVPP
• Maximum Output Current 26 mA
• Supply Voltage 3 V to 5.25 V
• Conversion Efficiency Up to 98%
• Quiescent Current 78 μA
• Shutdown Current 20 nA
• Turnon Time 500 μs
• Operating Temperature Range -40°C to 125°C
• 8-Pin VSSOP Package
