TIDatasheet (PDF)

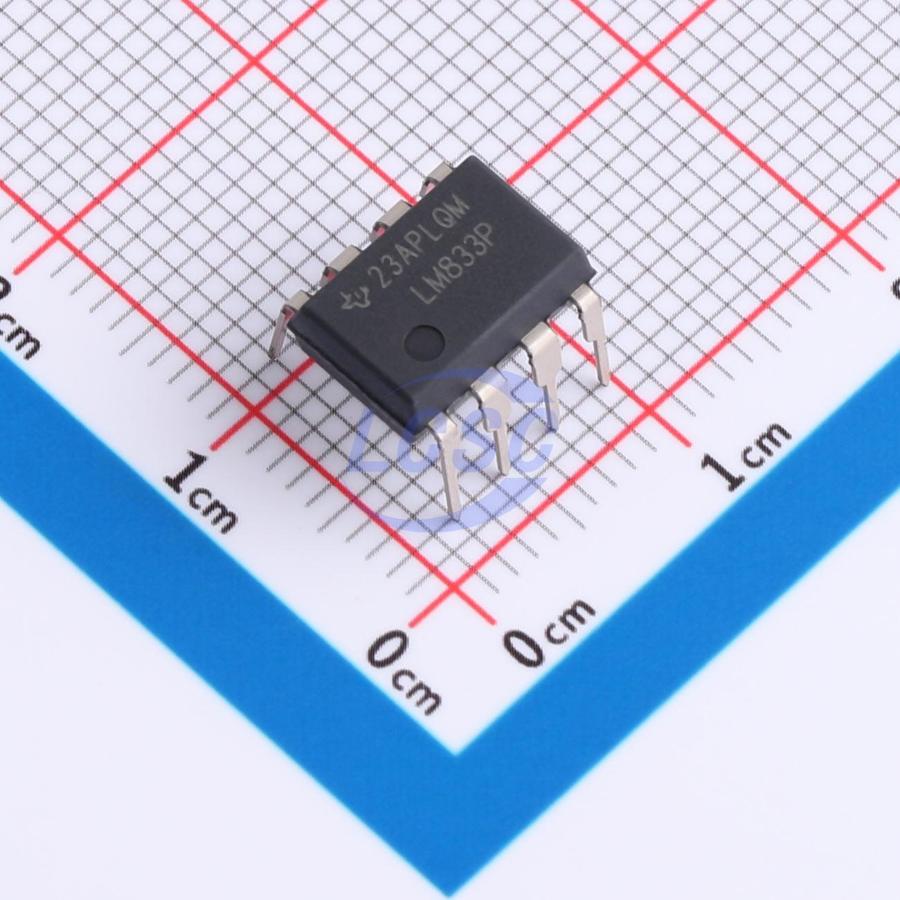

LM833P
PDIP-8 Instrumentation, Op Amps, Buffer Amps RoHS
PDIP-8ROHS3 CompliantActive
Dual High-Speed Audio Operational Amplifier
- Manufacturer
- TI
- Manufacturer part #
- LM833P
- Store part #
- C1346396
- Package / case
- PDIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C1346396
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,390.87 | ₹1,390.87 |
| 10+ | ₹1,189.02 | ₹11,890.20 |
| 30+ | ₹1,065.86 | ₹31,975.80 |
| 100+ | ₹962.67 | ₹96,267.00 |
1 × ₹1,390.87
₹1,390.87
excl. GST
₹1,641.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
LM833P
₹1,390.87 for 1 + GST
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.76 g
Overview
The LM833 device is a dual operational amplifier with high-performance specifications for use in quality audio and data-signal applications. This device operates over a wide range of single- and dual-supply voltage with low noise, high-gain bandwidth, and high slew rate. Additional features include low total harmonic distortion, excellent phase and gain margins, large output
Applications
- HiFi Audio System Equipment Preamplification and Filtering
- Set-Top Box Microphone Preamplifier Circuit
- General-Purpose Amplifier Applications
Key features
- Dual-Supply Operation: ±5 V to ±18 V
- Low Noise Voltage: 4.5 nV/√Hz
- Low Input Offset Voltage: 0.15 mV
- Low Total Harmonic Distortion: 0.002%
- High Slew Rate: 7 V/μs
- High-Gain Bandwidth Product: 16 MHz
- High Open-Loop AC Gain: 800 at 20 kHz
- Large Output-Voltage Swing: -14.6 V to 14.1 V
- Excellent Gain and Phase Margins
- Available in 8-Terminal MSOP Package (3.0 mm×4.9 mm×0.65 mm)
