HTCDatasheet (PDF)

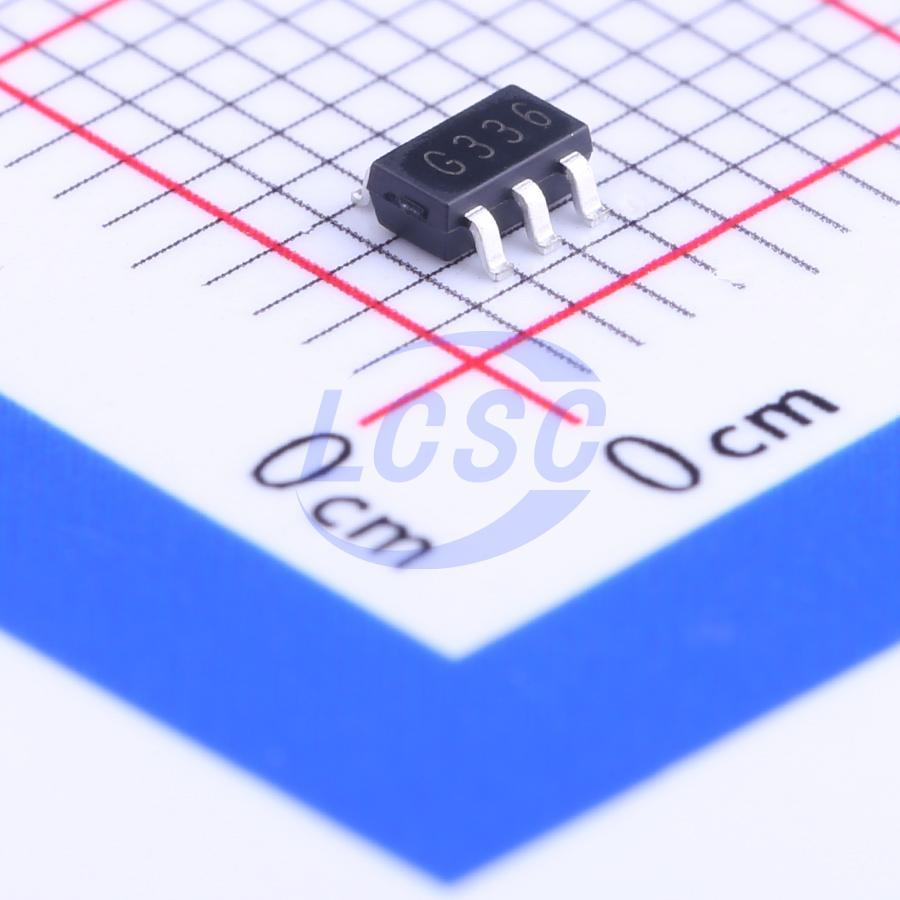

LM8805SF5-3.3
3.3V Positive Fixed SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-23-5LROHS CompliantActive
600mA CMOS L.D.O. Regulator
- Manufacturer
- HTC
- Manufacturer part #
- LM8805SF5-3.3
- Store part #
- C126077
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,495 in stock
#C126077
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.97 | ₹139.85 |
| 50+ | ₹21.68 | ₹1,084.00 |
| 150+ | ₹18.99 | ₹2,848.50 |
| 500+ | ₹15.62 | ₹7,810.00 |
| 3,000+ | ₹14.13 | ₹42,390.00 |
| 6,000+ | ₹13.23 | ₹79,380.00 |
5 × ₹27.97
₹139.85
excl. GST
₹165.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM8805SF5-3.3
₹139.85 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃
- Supply Current (Iq)
- 50uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 600mA
- Features
- Enable control;Noise bypass terminal;Thermal shutdown;Over Current Protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.049 g
Overview
The LM8805 series is a low-dropout linear regulator. There are devices designed specifically for battery-operated systems. Ground current is very small (50uATyp), that significantly extending battery life. Low power consumption and high accuracy is achieved through CMOS and programmable fuse technologies. Output voltage: 1.5V to 6.0V.
Applications
- Battery-Operated Systems
- Portable Computers
- Portable Cameras and Video Recorders
- Reference Voltage Sources
- Instrumentation
- Pagers
Key features
- Maximum output current: 600mA
- Highly accurate: Output voltage ±1.5%
- Stability with Low ESR Capacitors
- Low power consumption
- On-chip Protections: Thermal, Short Circuit
- Small input/output differential: 600mV at 600mA
- Adjustable version
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XC6210A332MR-G#C3743414TOREX · SOT-25 | TOREX | SOT-25 | 3,231 | ₹71.34 · 3,231 in stock | View |
 | PJ9650M33SE#C41368016PJSEMI · SOT-23-5 | PJSEMI | SOT-23-5 | 100 | ₹11.07 · 100 in stock | View |
 | SL9650M33SE#C7543309Slkor · SOT-23-5 | Slkor | SOT-23-5 | On request | ₹11.14 · 0 in stock | View |
 | TMI6050-33#C911079TMI · SOT-23-5 | TMI | SOT-23-5 | 8,103 | ₹4.60 · 8,103 in stock | View |
 | XC6210B332MR-G#C47719TOREX · SOT-25-5 | TOREX | SOT-25-5 | 16,901 | ₹52.36 · 16,901 in stock | View |
