TIDatasheet (PDF)

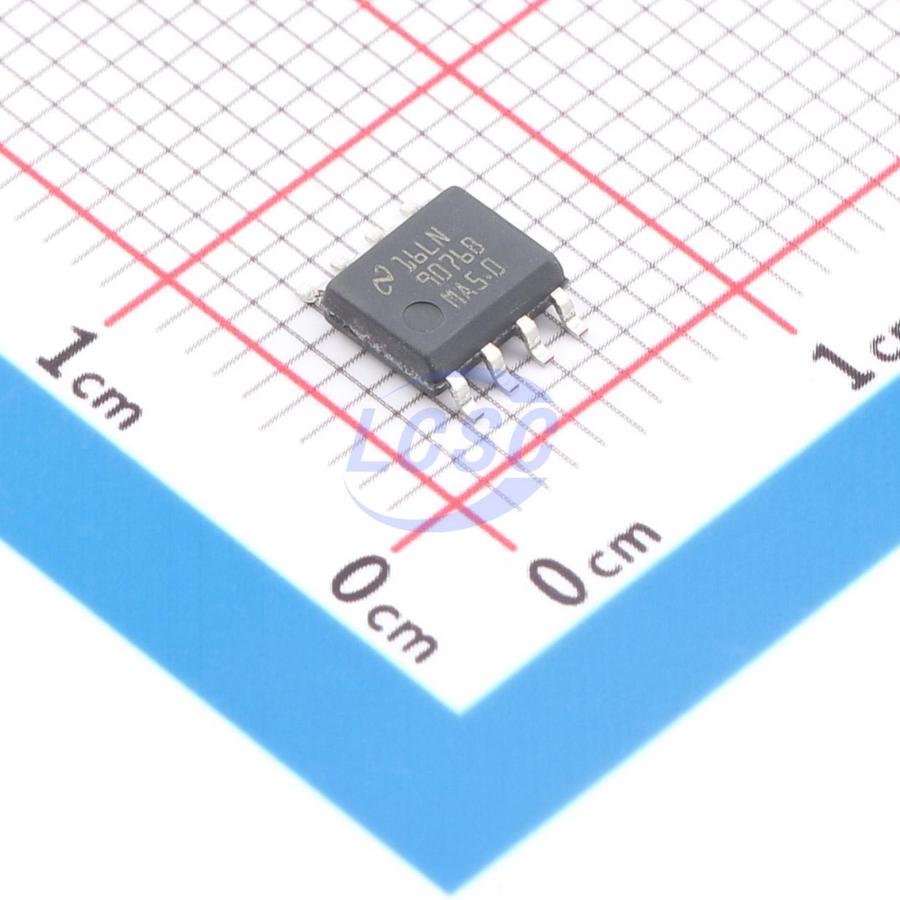

LM9076BMAX-5.0/NOPB
5V Positive Fixed SOIC-8 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOIC-8ROHS3 CompliantActive
150mA, 40V, Low Dropout Regulator
- Manufacturer
- TI
- Manufacturer part #
- LM9076BMAX-5.0/NOPB
- Store part #
- C2870231
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29 in stock
#C2870231
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹243.80 | ₹243.80 |
| 10+ | ₹238.35 | ₹2,383.50 |
| 30+ | ₹234.58 | ₹7,037.40 |
| 100+ | ₹230.81 | ₹23,081.00 |
1 × ₹243.80
₹243.80
excl. GST
₹287.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM9076BMAX-5.0/NOPB
₹243.80 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 25uA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 150mA
- Features
- Enable control;Reset function;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.175 g
Overview
The LM9076 is a ±3% , 150 mA logic controlled voltage regulator. The regulator features an active low delayed reset output flag which can be used to reset a microprocessor system at turn-ON and in the event that the regulator output voltage falls below a minimum value. An external capacitor programs a delay time interval before the reset output pin can return high. Designed for automotive and industrial applications, the LM9076 contains a variety of protection features such as thermal shutdown, input transient protection and a wide operating temperature range. The LM9076 uses an PNP pass transistor which allows low drop-out voltage operation.
Key features
- Available with 5.0V or 3.3V Output Voltage
- Ultra Low Ground Pin Current, 25 μA Typical for 100 μA Load
- VOUT Initial Accuracy of ±1.5%
- VOUT Accurate to ±3% Over Load and Temperature Conditions
- Low Dropout Voltage, 200 mV Typical with 150 mA Load
- Low Off State Ground Pin current for LM9076BMA
- Delayed RESET Output Pin for Low VOUT Detection
- +70V/-50V Voltage Transients
- Operational VIN up to +40V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM9076QBMAX-5.0/NOPB#C2878248TI · SOIC-8 | TI | SOIC-8 | 5 | ₹508.85 · 5 in stock | View |
 | TPS7A6950QDRQ1#C2869567TI · SOIC-8 | TI | SOIC-8 | 18 | ₹164.03 · 18 in stock | View |
 | TLS715B0EJ V50#C540264Infineon · DSO-8 | Infineon | DSO-8 | 42 | ₹177.92 · 42 in stock | View |
 | TLE4263GSXUMA2#C5295960Infineon · SOIC-8 | Infineon | SOIC-8 | 6 | ₹646.07 · 6 in stock | View |
| TLE42994G#C539754Infineon · DSO-8 | Infineon | DSO-8 | 300 | ₹279.22 · 300 in stock | View | |
