TIDatasheet (PDF)

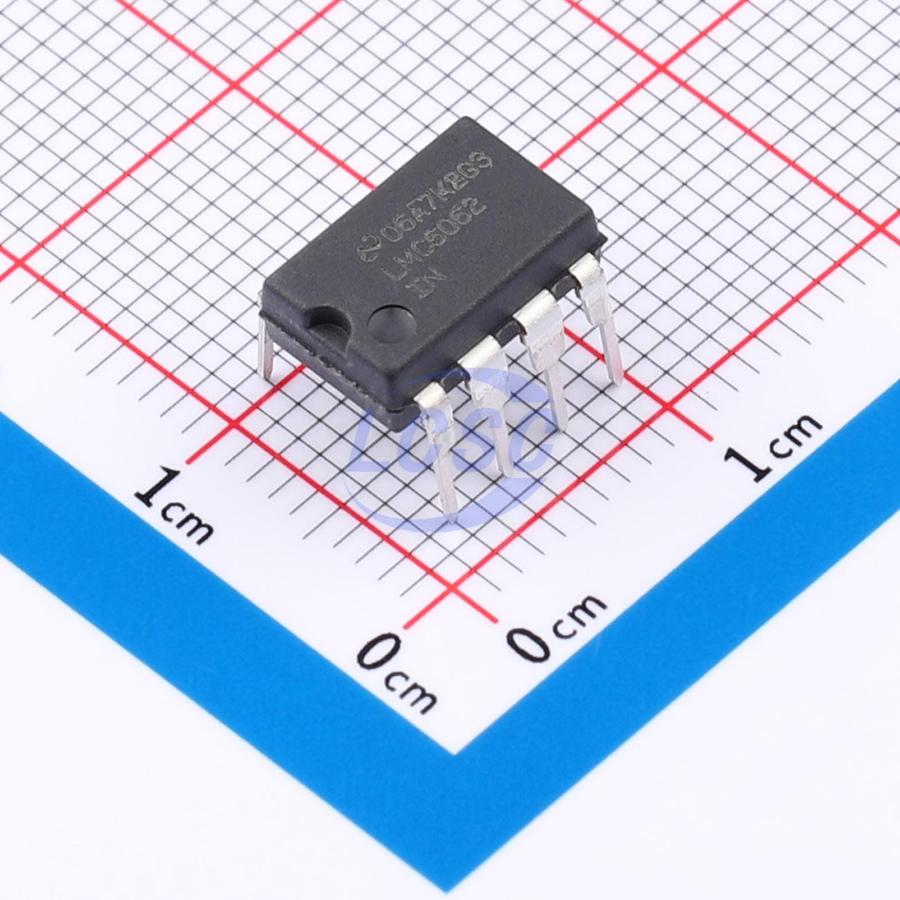

LMC6062IN/NOPB
PDIP-8 Instrumentation, Op Amps, Buffer Amps RoHS
PDIP-8ROHS3 CompliantActive
Precision CMOS Dual Micropower Operational Amplifier
- Manufacturer
- TI
- Manufacturer part #
- LMC6062IN/NOPB
- Store part #
- C1346421
- Package / case
- PDIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C1346421
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,494.66 | ₹1,494.66 |
| 10+ | ₹1,332.79 | ₹13,327.90 |
| 40+ | ₹1,229.15 | ₹49,166.00 |
| 80+ | ₹1,129.19 | ₹90,335.20 |
1 × ₹1,494.66
₹1,494.66
excl. GST
₹1,763.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 40 per tube
LMC6062IN/NOPB
₹1,494.66 for 1 + GST
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 40 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.34 g
Overview
The LMC6062 is a precision dual low offset voltage, micropower operational amplifier, capable of precision single supply operation. Performance characteristics include ultra low input bias current, high voltage gain, rail-to-rail output swing, and an input common mode voltage range that includes ground. These features, plus its low power consumption, make the LMC6062 ideally suited for battery powered applications.
Applications
- Instrumentation Amplifier
- Photodiode and Infrared Detector Preamplifier
- Transducer Amplifiers
- Hand-Held Analytic Instruments
- Medical Instrumentation
- D/A Converter
- Charge Amplifier for Piezoelectric Transducers
Key features
- Low Offset Voltage 100μV
- Ultra Low Supply current 16μA/Amplifier
- Operates from 4.5V to 15V Single Supply
- Ultra Low Input Bias Current 10fA
- Output Swing within 10mV of Supply Rail, 100k Load
- Input Common-Mode Range Includes V−
- High Voltage Gain 140dB
- Improved Latchup Immunity
